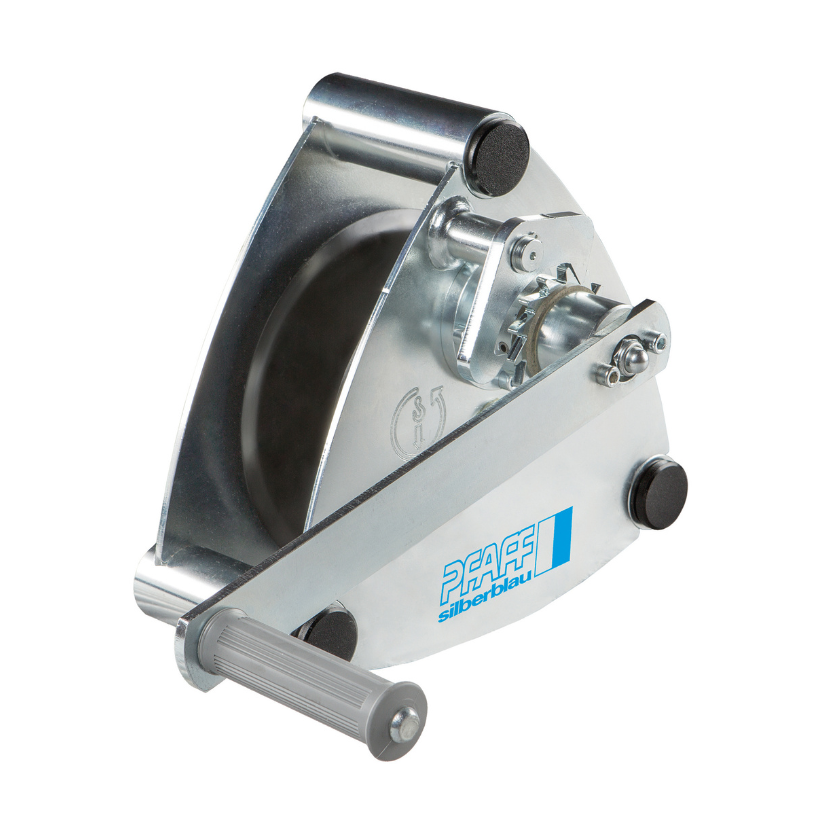

Pfaff SW-W ALPHA 750 Wall-Mounted Winch - 750kg Capacity

A versatile wall-mounted winch for an easy lifting of loads. This model supports loads up to 750kg.

Features and benefits include:

• Light weight robust stamped steel housing and compact design.
• Spur gear drive for optimal efficiency and comfortable handling.
• Rope lead-offs to all directions.
• All parts are zinc-plated for increased corrosion protection, drum with additional special coating.
• Integrated crank with load pressure brake for safe holding of the load.
• Easy and quick mounting onto walls.
• Wire rope sold separately.


Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Download - pfaff-sw-w-alpha-ds.pdf
