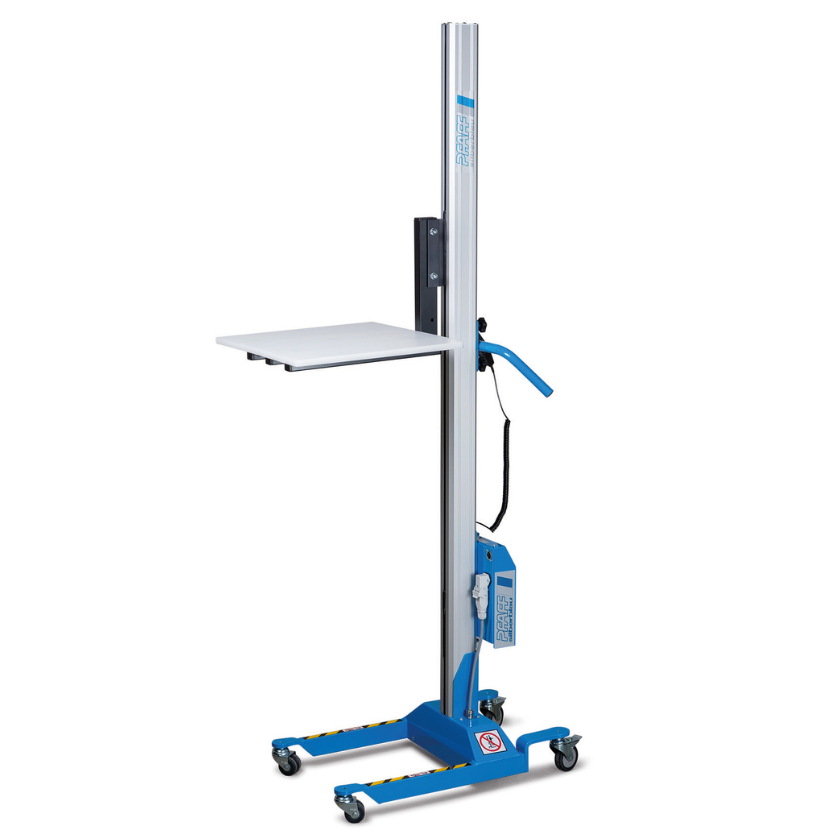

Pfaff MLP 90 E Electric Minilifter – 90kg Capacity, 1568mm Max Lifting Height

The Minilifter is designed to be manoeuvrable and versatile for indoor use, where small loads are lifted frequently. It has a low unit weight and non-marking tyres that make
it an indispensable tool in many areas.

The stepless adjustable handlebars provide a comfortable grip for the user.

Features

• For easy and safe manoeuvring, it has 4 swivel castors, 2 of which are fitted with parking brakes.

• The forward wheel arms clear under Euro pallets.

• Electric lifting and lowering function with soft start.

• The ergonomic push handle is infinitely height-adjustable.

• Cable remote control with spiral cable.

• The connection system makes it possible to use various, optionally available load handling attachments.

• Maintenance-free, precision lead screw and nut for many years of reliable service. The safety slip clutch protects the drive in both directions.

• The lowering safety cut-out eliminates accidental crushing and entrapment when lowering the platform.

• The electronic overload protection effectively prevents accidental lifting of excessive load.

• Maintenance-free battery that can be charged at any socket.

• Robust construction with chrome plated chassis, hard chromium plated piston and pressure relief valve.

• Covered chain deflection for increased safety.

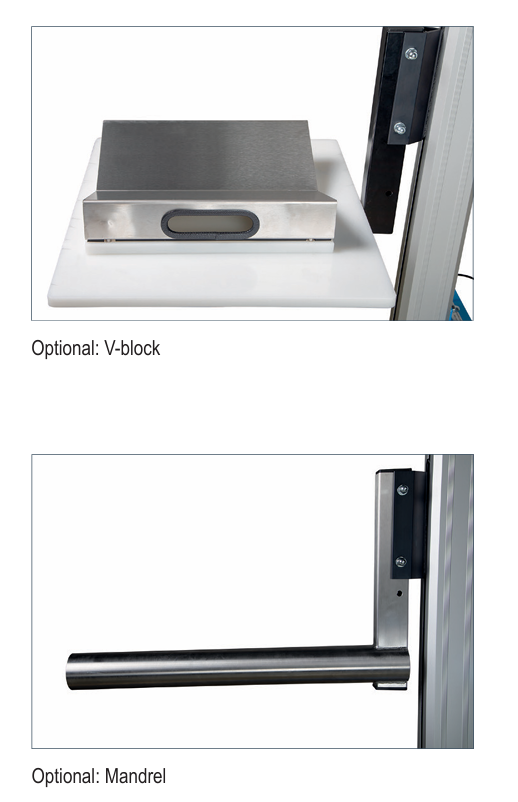

Optional

• Swivelling V-block with platform for roller material.

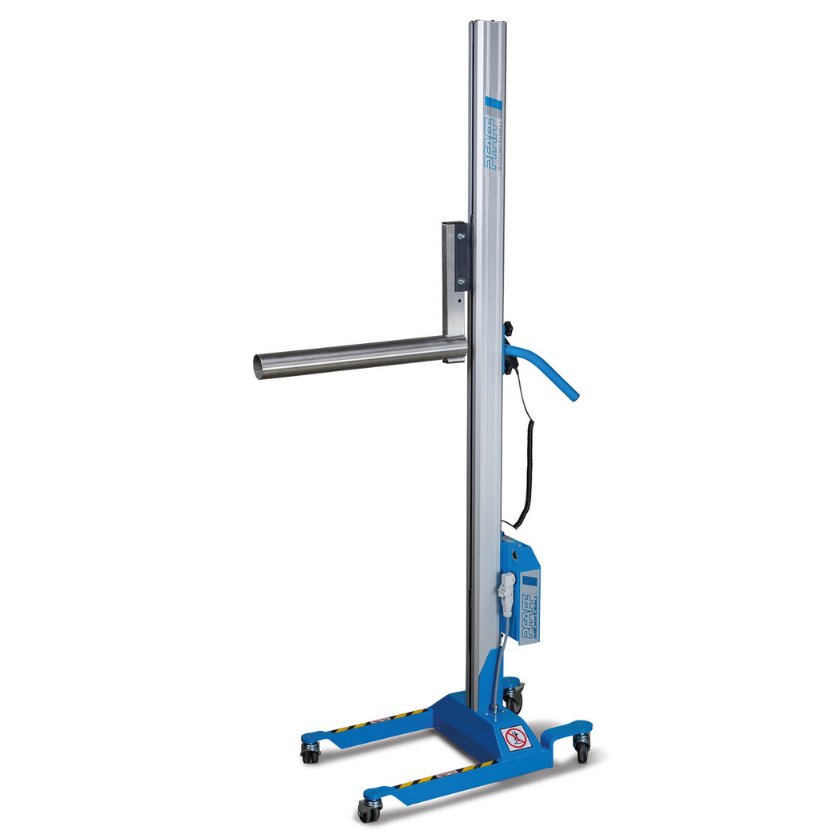

• Mandrel for roller material.


Scope of delivery

• Integrated battery 24 V, 7.2 Ah.

• External charger 24 V, 1.5 A.
