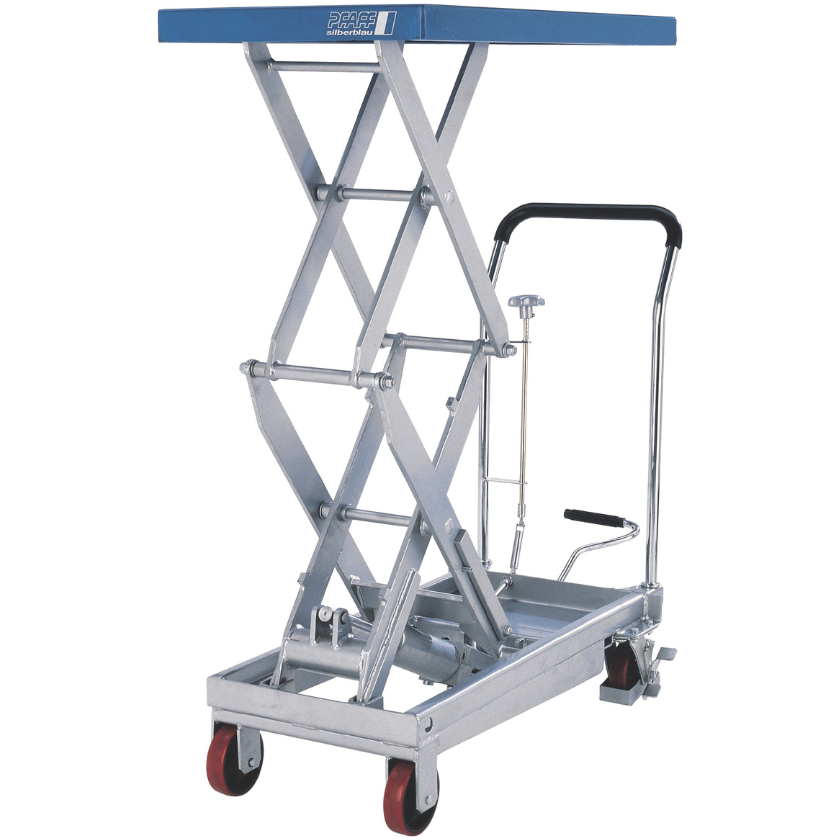

Pfaff HX-D Mobile Double Scissor Elevating Platform - 350kg Capacity, 1300mm Max Platform Height

For the independent lifting and supplying of light up to medium loads within a warehouse environment.

Features

• Hydraulic lifting of the load with foot pedal.

• Lowering speed can be finely metered for sensitive lowering of the load.

• Ergonomic handlebar for easy operation.

• Steering roller with brake for safe parking of the hand stacker.
• Robust construction with hard chromium plated piston and pressure relief valve.

• According to DIN EN 1570-1, DIN EN ISO 3691-5.

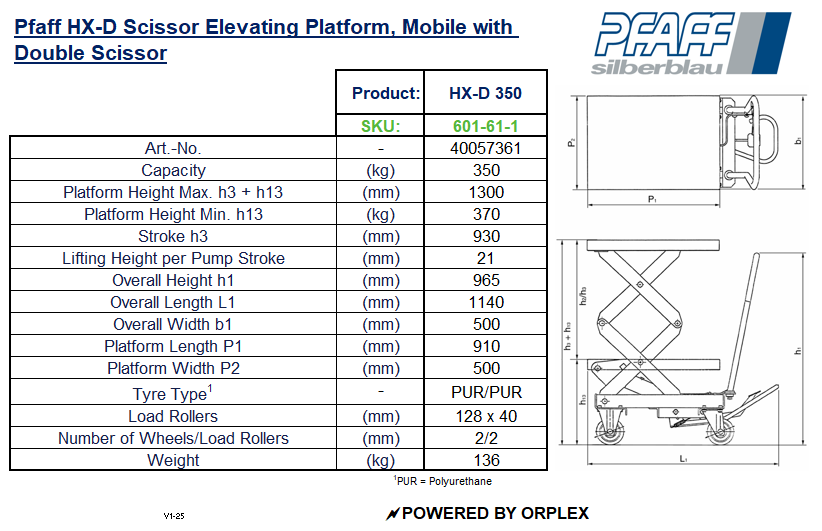

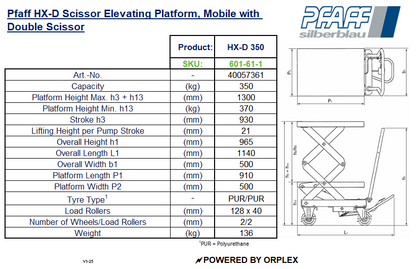

Download - pfaff-materialhandling-hx-d-ds.pdf
