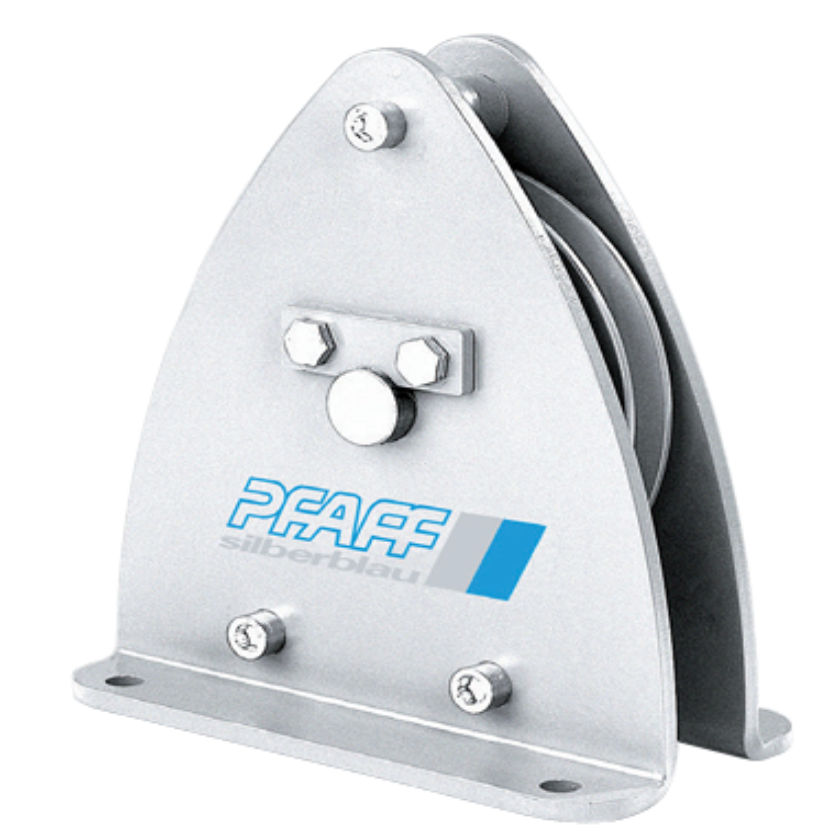

Pfaff DSRB S Sheave Block – Ø5 to 6mm Rope, 700kg, Ø90mm Pulley

Pfaff DSRB S Sheave Block for Rope Guidance, Equipped with Ball Bearings

The Pfaff DSRB S Sheave Block is a robust and reliable solution for guiding wire rope in lifting and pulling operations. Engineered for smooth and consistent performance, it features high-quality ball bearings that ensure low-friction operation and long-lasting durability, even under demanding industrial conditions.

This sheave block is ideal for use in systems where rope redirection is required, providing accurate guidance and helping to maintain correct rope alignment.

The rollers are painted in RAL 5015, while the side panels, anchors, mounting screws and brackets are electro-galvanised.

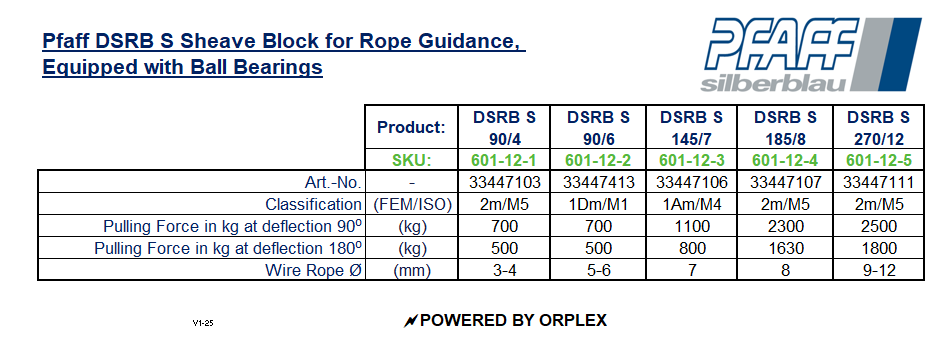

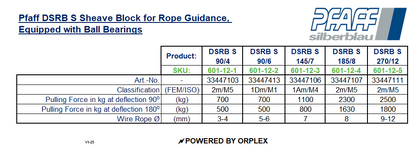

Note: The capacity listed for the Pfaff DSRB S represents the pulling force in kilograms (kg) at a 90° deflection. Always ensure the sheave block is correctly matched to your system's load and configuration for safe and optimal use.
