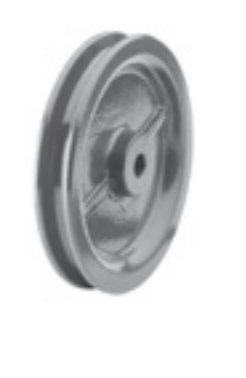

Rope and Gate Sheaves made of Cast Iron (Model No. 30)

ORPTECH SKU: 182-30-80

1 1

Rope and Gate Sheaves made of Cast Iron (Mode No. 30) With round, turned groove and drilled shaft hole. Range of pulley capacity from 125kg to 350kg Range of pulley... Read More

€16,56

RRP TODAY'S PRICE €16,56

In stock (3)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Rope and Gate Sheaves made of Cast Iron (Mode No. 30)

With round, turned groove and drilled shaft hole.

Range of pulley capacity from 125kg to 350kg

Range of pulley diameter from 80mm to 200mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date if your required quantity is not in stock in our UK warehouse, please email your enquiry to sales@rigginguk.co.uk.

Specification

SKU		182-30-80	182-30-100	182-30-120	182-30-140	182-30-160	182-30-180	182-30-200
Sheave External Ø	mm	80	100	120	140	160	180	200
Groove Base Ø	mm	64	80	96	112	130	148	166
Groove Radius	mm	5	6	7	8	8.5	9	10
Groove Depth	mm	8	10	12	14	15	16	17
Rim Width	mm	18	21	22	24	24	27	30
Bore for Bolt	mm	10	12	14	16	18	18	18
Hub Length	mm	22	24	25	27	34	35	38
Hub Ø	mm	24	28	32	38	42	45	50
Rope Ø Max.	mm	9	11	13	15	16	17	19
Load Capacity (in kg).	kg	125	150	200	250	300	300	350
Weight (in kg) approx.	kg	0.28	0.5	0.7	1.19	1.54	2.17	3.45
