Steel Sheaves made of Cast Iron with Plain Bearing (Model No. 163)

ORPTECH SKU: 182-163-50

1 1

Steel Sheaves made of Cast Iron with Plain Bearing (Model No. 163) Zinc-plated pulley with maintenance-free plain bearing, (DU Bush), compatible with side mounted pulley No. 162 and fixed rollers No.... Read More

€69,25

RRP TODAY'S PRICE €69,25

In stock (2)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

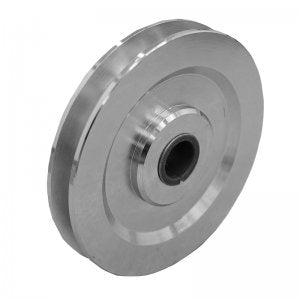

Steel Sheaves made of Cast Iron with Plain Bearing (Model No. 163)

Zinc-plated pulley with maintenance-free plain bearing, (DU Bush), compatible with side mounted pulley No. 162 and fixed rollers No. 164 and No. 174.

Range of pulley capacity from 100kg up to 4000kg

Range of pulley diameter from 50mm up to 300mm

Please note, these products have a lead-time of around 3 weeks from order date if not in stock

Specification

SKU		182-163-50	182-163-75	182-163-100	182-163-125	182-163-150	182-163-200	182-163-250	182-163-300
Sheave External Ø	mm	50	75	100	125	150	200	250	300
Groove Base Ø	mm	38	59	80	103	126	166	213	257
Groove Radius	mm	3.2	4.2	4.8	5.3	6.5	5.3	6.5	8.5
Groove Depth	mm	6	8	10	11	12	17	18.5	21.5
Rim Width	mm	12	18	21	21	22	32	36	40
Bore for Bolt	mm	10	12	16	16	20	30	40	50
Hub Length	mm	16	20	25	25	25	38	41	62
Hub Ø	mm	29	36	42	45	56	80	95	110
Rope Ø Max.	mm	6	8	9	10	12	10	12	16
Load Capacity (in kg).	kg	100	200	300	500	750	1500	2000	4000
Weight (in kg) approx.	kg	0.1	0.3	0.6	0.9	1.4	4.5	7.9	12.8
