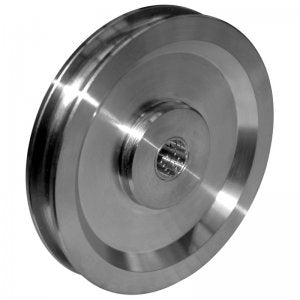

Rope Pulley made of Stainless Steel with Self Lubricating Bushing (Model No. 1302)

Stainless Steel Sheaves with Self Lubricating Bushing (Model No. 1302) Stainless pulleys made of grade 1.4301 stainless steel, turned groove, with self-lubricating bushing. Range of pulley capacity from 100kg up to... Read More

ORPTECH SKU: 182-1302-50

€222,81

RRP TODAY'S PRICE €222,81

In stock (1)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Stainless Steel Sheaves with Self Lubricating Bushing (Model No. 1302)

Stainless pulleys made of grade 1.4301 stainless steel, turned groove, with self-lubricating bushing.

Range of pulley capacity from 100kg up to 750kg

Range of pulley diameter from 50mm up to 150mm

Please note, these products have a lead-time of around 3 weeks from order date if not in stock in our UK warehouse

Spec

SKU		182-1302-50	182-1302-75	182-1302-100	182-1302-125	182-1302-150
Sheave External Ø	mm	50	75	100	125	150
Groove Base Ø	mm	38	59	80	103	126
Groove Radius	mm	3.2	4.2	4.8	5.3	6.5
Groove Depth	mm	6	8	10	11	12
Rim Width	mm	12	18	21	21	22
Bore for Bolt	mm	10	12	16	16	20
Hub Length	mm	16	20	25	25	25
Hub Ø	mm	29	36	42	42	56
Rope Ø max.	mm	6	8	9	10	12
Load Capacity (in kg).	kg	100	200	300	500	750
Weight (in kg) approx.	kg	0.1	0.3	0.6	0.9	1.4
