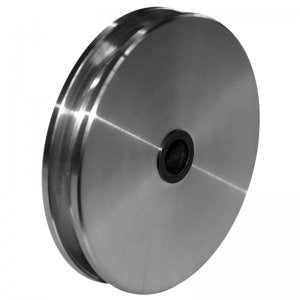

Stainless Steel Sheaves with Plastic Bushing (Model No. 1300)
Pulley / Sheave made of grade 1.4305 stainless steel, with maintenance-free plastic bushing (E10 tolerance bore).
Range of pulley capacity from 100kg up to 1500kg
Range of pulley diameter from 50mm up to 200mm
Please note, these products have a lead-time of around 3 to 4 weeks from order date if not in stock in our UK warehouse. Please email your enquiry to sales@rigginguk.co.uk.
|
SKU |
182-1300-50 | 182-1300-75 |
182-1300-100 |
182-1300-125 | 182-1300-150 | 182-1300-200 | |
|
Sheave External Ø |
mm |
50 |
75 | 100 | 125 | 150 | 200 |
|
Groove Base Ø |
mm |
38 | 59 | 80 | 100 | 120 | 166 |
|
Groove Radius |
mm |
2.7 | 3.7 | 4.8 | 6 | 7 | 8 |
|
Groove Depth |
mm |
6 | 8 | 10 | 12 | 15 | 17 |
|
Rim Width |
mm |
12 | 18 | 22 | 22 | 27 | 28 |
|
Bore for Bolt |
mm |
10 | 12 | 16 | 16 | 20 | 30 |
|
Hub Length |
mm |
14 | 20 | 24 | 24 | 30 | 32 |
| Hub Ø | mm | 18 | 20 | 24 | 24 | 28 | 42 |
| Rope Ø max. |
mm | 5 | 7 | 9 | 11 | 13 | 15 |
|
Load Capacity (in kg). |
kg |
100 | 200 | 300 | 500 | 750 | 1500 |
|
Weight (in kg) approx. |
kg |
0.2 | 0.65 | 1.4 | 2.1 | 3.75 | 6.9 |
All dimensions in mm.
