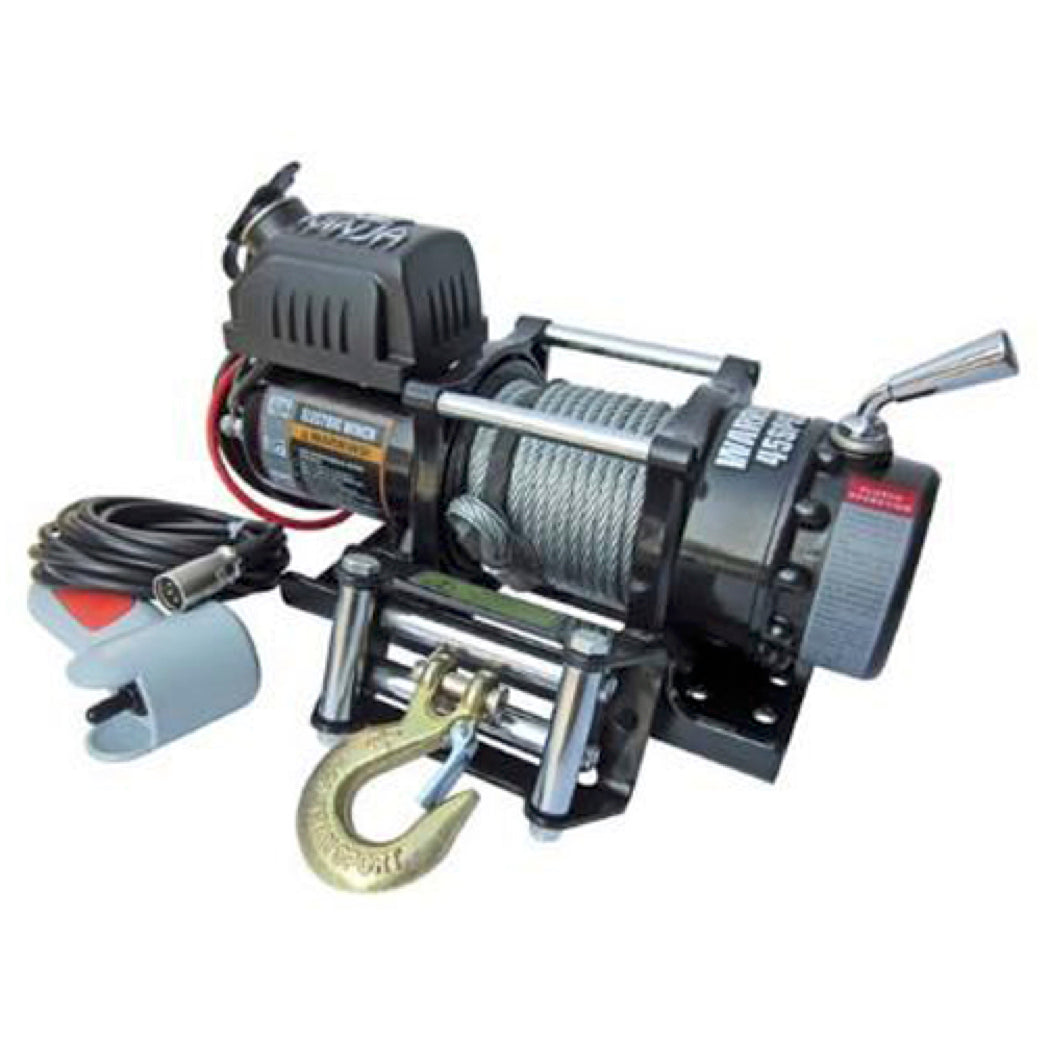

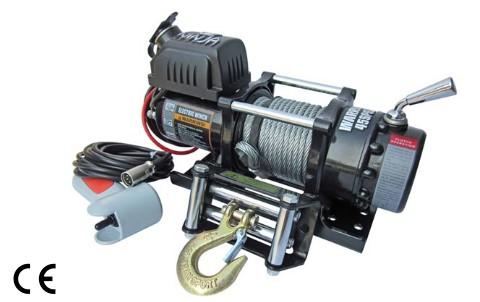

Ninja 4500 (2041kg) Electric Winch with Steel Cable 24v

Warrior Winches SKU: 161-7-13

1 2

Introducing the upgraded Warrior Ninja 4500, formerly known as the C4500 EWX. This winch is unmatched in the market, boasting enhanced features like a heavy-duty clutch, 4-pin Air Socket, and redesigned solenoid control pack. Engineered for durability, the Ninja 4500 features a chip-resistant paint, reinforced steel dr Read More

€304,07

RRP TODAY'S PRICE €304,07

Out of stock (0)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Introducing the upgraded Warrior Ninja 4500, formerly known as the C4500 EWX. This winch is unmatched in the market, boasting enhanced features like a heavy-duty clutch, 4-pin Air Socket, and redesigned solenoid control pack. Engineered for durability, the Ninja 4500 features a chip-resistant paint, reinforced steel drum, and smooth steel three-stage planetary gearing. It's weatherproof, with watertight controllers and contactors, and powered by a sealed high-power motor. With a 4500lb (2014kg) line capacity and 1.5m/min pull at full load, the Ninja 4500 delivers reliable, heavy-duty performance

12v Steel Rope Winch Option SKU161-7-13

12v Steel Rope Winch Option SKU 161-7-14

Link to 4 Pin Wireless Remote to work with this Vehicle Winch

Standard Features:

Line Capacity: 4,500lb (2041kg)
Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: 12-month return to base warranty

Accessories:

Wired Hand Control: 3m Wired Hand Control with air socket style plug
Wireless Control: Available as an optional extra
Mounting Plate: Included for standard installations
Mounting Bolts: Included for standard installations
Heavy Duty Battery Cables (May need extending depending on application)
Instruction Manual

Other Information:

Dimensions: 360mm L x 126mm D x 165mm H
Mounting Bolt Pattern: 129 x 96mm
Line Pull- No Load: 3.6 m/min (20 Amps)
Line Pull - Full Load: 1.5 m/min (200 Amps)

Note: For the majority of applications the synthetic rope supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum. A fixed hook will not (and should not) feed through the fairlead.

Features

Power in and Power out
High Torque Motor
HD Waterproof Contactors
Full Steel Planetary Gearing
Mount Plate as Standard
Full Load Holding Break
Can fit tow ball mount

Accessories included

Specification

Brand: Warrior
Capacity: 4,500lb / 2,041kg
Voltage: 12v or 24v, Powers In And Out
Rope: 14.5m x 6.4mm L X D Steel Cable with Hook OR 15m x 6mm L x D Synthetic Rope
Control: 3m Wired Handset (Optional Wireless Control Available)

Rated Line Pull	4500 lbs
Motor Type	12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW 24V: Input: 3.9hp / 2.9 kW; Output: 1.7hp / 1.3 kW
Gearing	172:1
Clutch	Manual
Braking Action	Auto in the drum
Drum Size (Dia x L)	45 x 93 mm
Cable Material	Steel or Synthetic
Cable – Dia x L	Steel: 6.4mm x 14.5m OR Synth: 6mm x 15m
Mounting Pattern	129 mm × 96 mm mm
Dimensions	378 x 126 x 200 mm
Weight	Steel: 13kg Synthetic: 10.5kg
Warranty	3 Years
Certification	CE, UKCA
