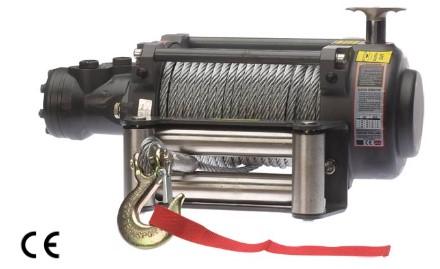

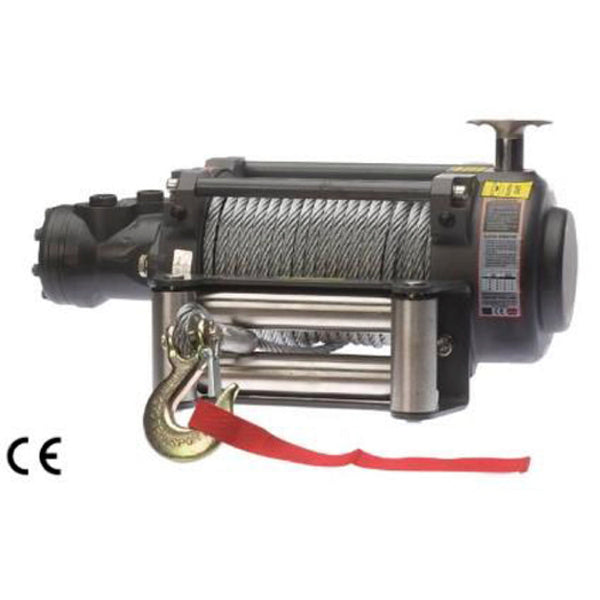

NH 15000 Hydraulic Winch 15000 lbs (6804 kg)

Name: NH 15000 Hydraulic Winch 15000 lbs (6804 kg)
Brand: Warrior Winches
SKU: 161-38-2
Price: 1698.00 EUR
Availability: OutOfStock

Warrior Winches SKU: 161-38-2

1 2

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless st Read More

€1.698,00

RRP TODAY'S PRICE €1.698,00

Out of stock (0)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.

Ref: 161-38-2

Features

Rugged High Torque Motor
Patented Heavy Duty Gearing
Integral, Automatic Failsafe Brake
Spring Engaged Manual Freespool
Stainless Steel Fairlead and Fittings
Rugged and compact for Long Lif

Accessories included

Specification

Rated Line Pull	15000 lbs (6804 kg)
Motor	Hydraulic Dis 80 ml/r
Gearing	33.4:1
Braking Action	Auto in the drum
Drum Size - Dia x L	89 x 217mm (3.5 x 8.54 in)
Cable - Dia x L	12mm x 26.5m (0.47 in x 87 ft)
Dimensions	554 x 226 x 262mm (21.81 x 8.9 x 10.3 in)
Mounting Pattern	254 x 114.3 mm (10 x 4.5 in)
Weight kg	68.8 kg (152 lbs)
Max Flow L/min	45
Max Pressure Mpa	12.5
Clutch	Pull & Turn
Certification	CE Certified
