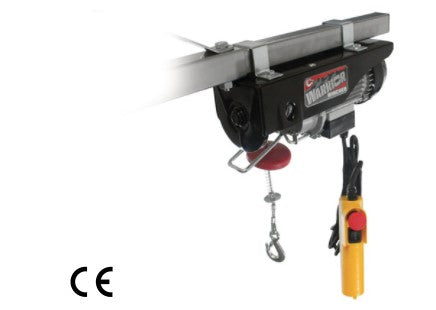

This compact, general purpose 240v electric mini scaffold wire rope hoist is ideal for all manner of lifting applications. Easy to install, with easy change cable design from single wire to twin wire.

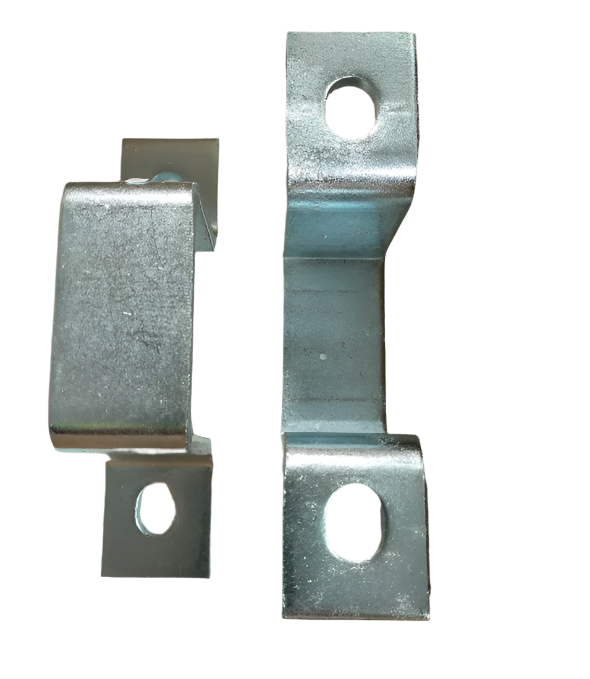

It is supplied with two special saddle fixing clamps for simple section beam fitting (square section beams). This hoist has 3m fixed remote switch with power in & power out facility. Optionally available with both fixed and wireless remote handset. Conforms to BS EN14492 standard with built in upper and lower limit switches and also with a thermal overload on the motor for added safety.

Mini Scaffolds Hoists are available as follows:

SKU 161-4-1 : 125kg single wire 250kg double wire with 3m fixed remote only

SKU 161 4 2 : 250kg single wire 500kg double wire with 3m fixed remote only

SKU 161-4-2A : 250kg single wire 500kg double wire 3m fixed remote & wireless remote option

SKU 161-4-2 : 500kg single wire 1000kg double wire 3m fixed remote

SKU 161-4-3A : 500kg single wire 1000kg double wire 3m fixed remote & wireless remote option

IP 54 rated.

Link to Hoist Frame

Specification

**240v-125/250kg- Mini Scaffold Hoist SKU Ref: 161-4-1

**240v-250/500kg- Mini Scaffold Hoist SKU Ref: 161-4-2

This hoist also has the facility to add a wireless remote control as an option, choose SKU 161-4-2A

**240v-500/1000kg- Mini Scaffold Hoist Ref: 161-4-3

This hoist also has the facility to add a wireless remote control as an option, choose SKU 161-4-3A
