Mild Steel Short Link Chain Self Colour (Sold By the Meter)

GT SKU: 286-1100-2

1 2

Grade 30 Mild Steel Short Link Chain Mild steel. Self colour finish. Conforms to DIN 766. Not to be used for lifting applications. Certification available Specification ... Read More

€6,03

RRP TODAY'S PRICE €6,03

In stock (8)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Grade 30 Mild Steel Short Link Chain

Mild steel.
Self colour finish.
Conforms to DIN 766.
Not to be used for lifting applications.
Certification available

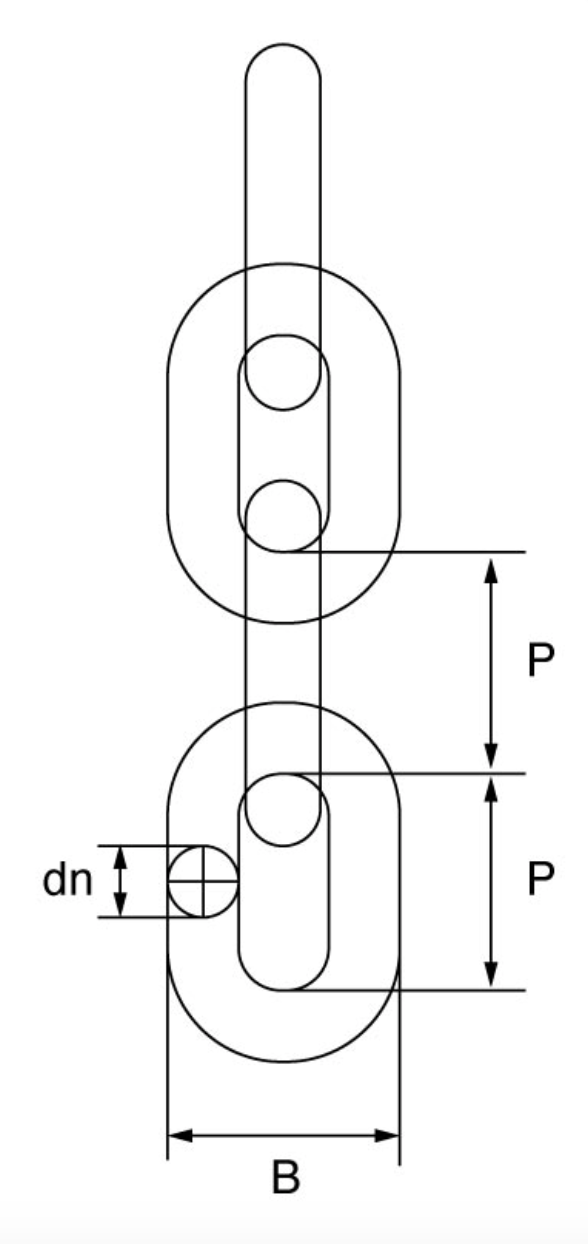

Specification

Self Colour	Dn	P	B	W.L.L.	M.P.F.	M.B.F.	Weight
SKU	mm	mm	mm	kgs	kN	kN	kgs/mtr
286-1100-1	5	18.5	17	320	8	12.5	0.5
286-1100-2	6	18.5	20.4	400	10	16	0.8
286-1100-3	7	22	23.8	630	16	25	1.1
286-1100-4	8	24	27.2	800	20	32	1.4
286-1100-5	9	27	30.6	1,000	25	40	1.8
286-1100-6	10	28	36	1,250	32	50	2.3
286-1100-7	11	31	40	1,600	40	63	2.7
286-1100-9	13	36	47	2,000	50	80	3.9
286-1100-10	16	45	58	3,200	80	125	5.8
