Mild Steel Electro Galvanised Eyebolt

GT SKU: 286-624-1

1 3

Mild Steel Electro Galvanised Eyebolt to DIN 580 Mild steel. Self coloured and electro galvanised finish. Meets the W.L.L. performance requirements of DIN 580.* Minimum breaking load... Read More

€0,90

RRP TODAY'S PRICE €0,90

In stock (18)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Mild Steel Electro Galvanised Eyebolt to DIN 580

Mild steel.
Self coloured and electro galvanised finish.
Meets the W.L.L. performance requirements of DIN 580.*
Minimum breaking load is 5 times the W.L.L.
Marked with CE, W.L.L, material, size and product ID mark.
For further clarification on reductions for non-axial loading, please consult RiggingUK.
Certification available

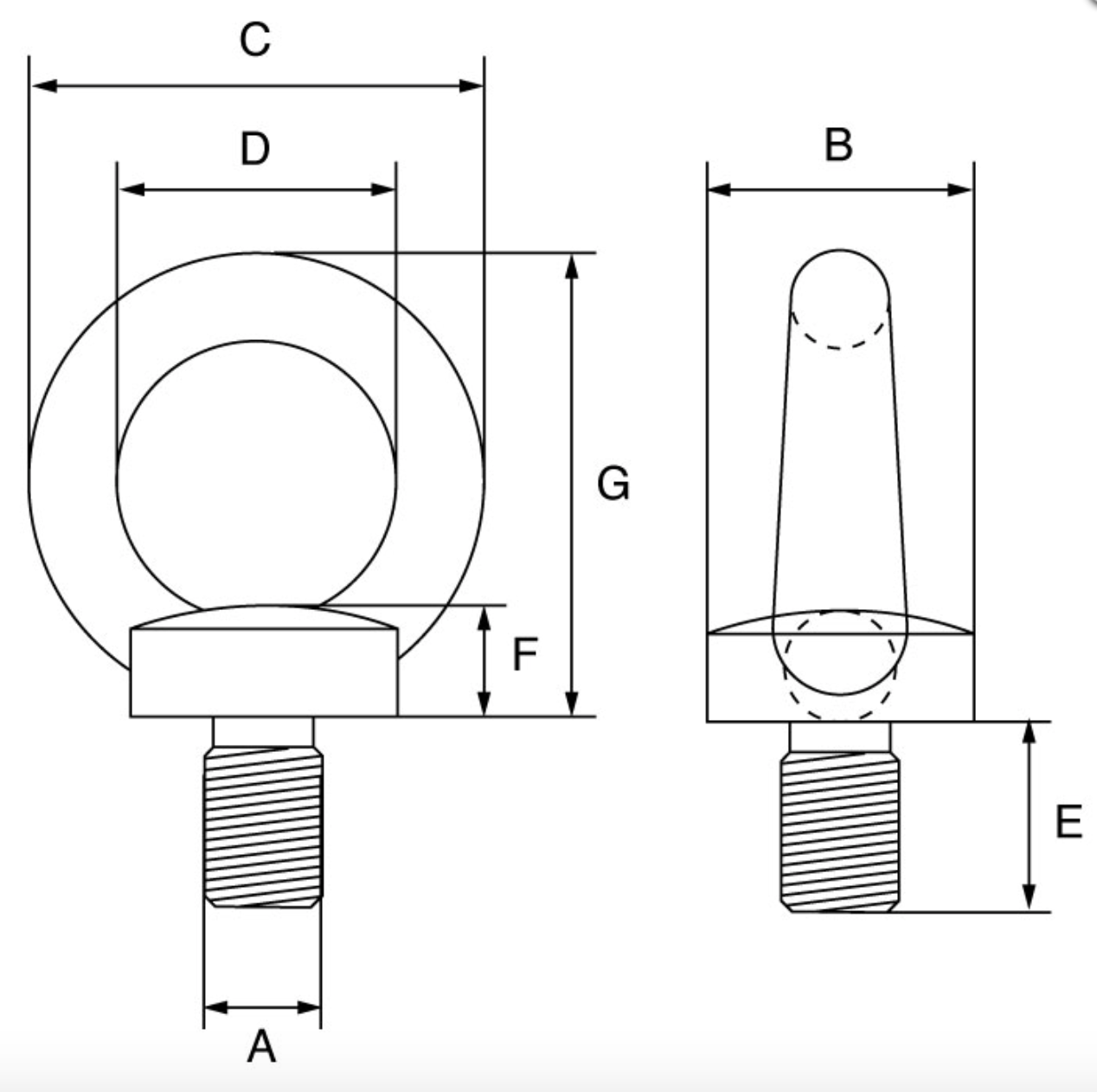

Specification

SKU	W.L.L.	A	B	C	D	E	F	G	Weight
	t	mm	mm	mm	mm	mm	mm	mm	kgs
286-624-1	0.07	M6	20	36	20	13	6	36	0.05
286-624-2	0.14	M8	20	36	20	13	6	36	0.07
286-624-3	0.23	M10	25	45	25	17	8	45	0.11
286-624-4	0.34	M12	30	54	30	20.5	10	53	0.18
286-624-5	0.70	M16	35	63	35	27	12	62	0.28
286-624-6	1.20	M20	40	72	40	30	14	71	0.45
286-624-7	1.80	M24	50	90	50	36	18	90	0.87
286-624-8	3.20	M30	65	108	60	45	22	109	1.66
286-624-9	4.60	M36	75	126	70	54	26	128	2.65
286-624-10	6.30	M42	85	144	80	63	30	147	4.03
286-624-11	8.6	M48	100	166	90	68	35	168	6.32
