Main Features:

• Very low headroom
• Full capacity range available from 1.0t to 10.0t, this model is a 2.0t capacity
• Ideal for locations where headroom is limited
• Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
• Can be chained to any height of lift to meet your exact requirements
• These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

Options:

• Chain carrier available
• Corrosion or spark resistant versions available
• Available with load limiter
• Available with beam locking device

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Standard geared trolley hand chain length - 2.5m. We can change the length to suit your requirements.

Standard height of lift (HOL) of chain block - 3m. We can change this to suit your requirements.

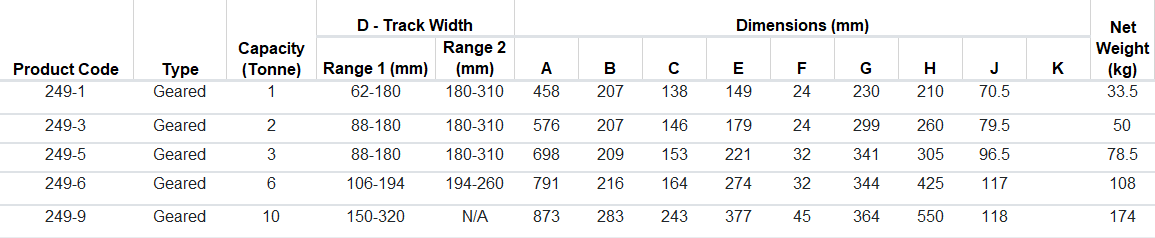

In the table below on Spec:

• D is the standard track width range. Please contact us for track widths outside of this range.
• F is the maximum beam flange thickness..

Spec

Downloads

Product data sheet
