KITO - Grade 10 Swivel Self Locking Hook with Ball Bearing to BS-EN 1677-4

KITO - Grade 10 Swivel Self Locking Hook with Ball Bearing to BS-EN 1677-4

SKU: 286-230-1

Customers rate us 4.8/5 based on 652 reviews.
View more
More From
1 2

KITO Weissenfels

KITO - Grade 10 Swivel Self Locking Hook with Ball Bearing to BS-EN 1677-4

KITO - Grade 10 Swivel Self Locking Hook with Ball Bearing to BS-EN 1677-4

SKU: 286-230-1

Read More
Customers rate us 4.8/5 based on 652 reviews.
€143,15
RRP TODAY'S PRICE €143,15

In stock

Tax included.

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Description

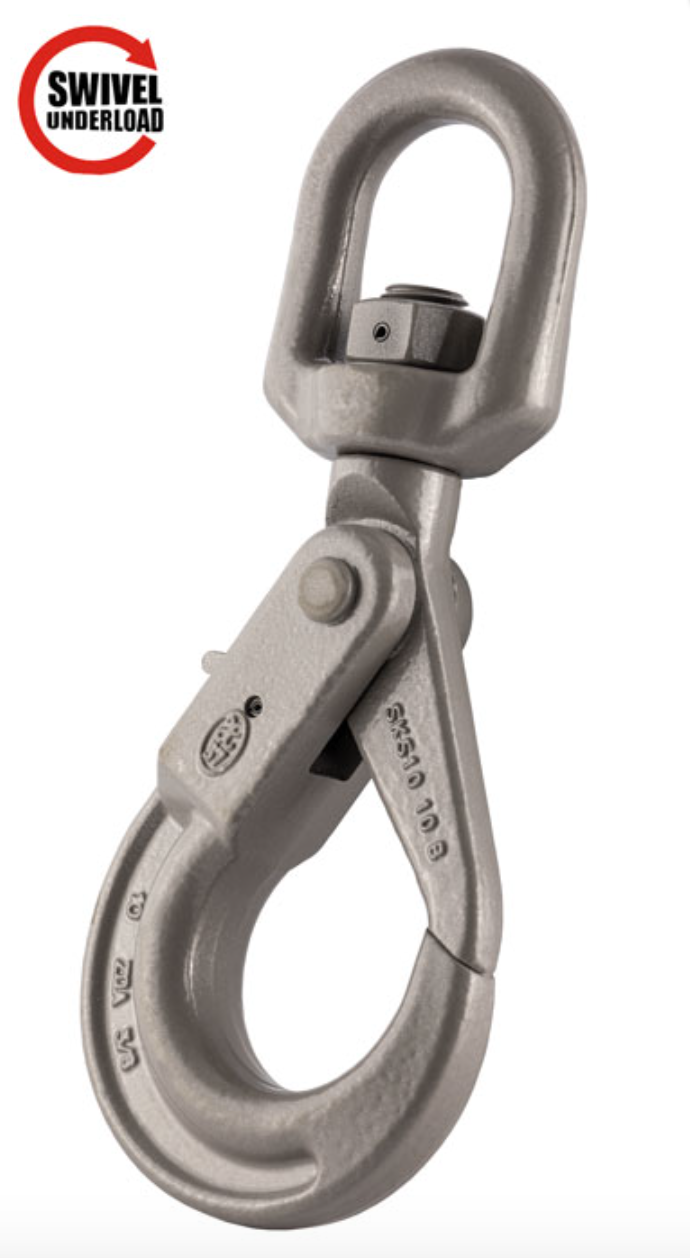

Grade 10 Swivel Self Locking Hook with Ball Bearing
  • Grade 10 alloy steel, quenched and tempered.
  • Grey painted finish.
  • Meets the performance requirements of BS EN 1677-4 +25% of loads.
  • Large swivel eye makes assembly easier.
  • Ball bearing enables rotation under load.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification - Declaration of Conformity

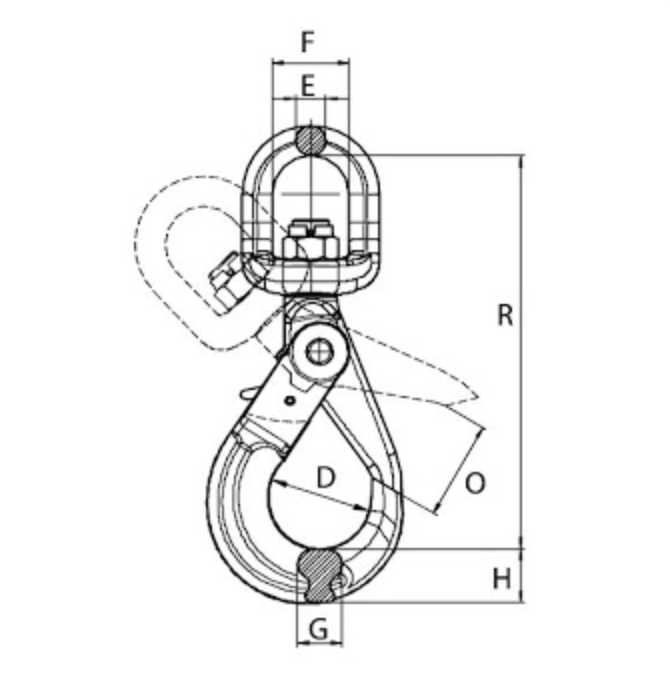

            Spec

            SKU
            		 Chain Dia D E F G H O R
            mm mm mm mm mm mm mm mm
            286-230-1
            		 6 35 13 35 16 20.5 28 160
            286-230-2
            		 7/8 43.5 13 35 20 26 34 181
            286-230-3
            		 10 56 16 42 24.5 30 45 218
            286-230-4
            		 13 69 20 49 34.5 40 51.5 269
            286-230-5
            		 16 80 24 60 35.5 50 60 319

            Technical Data

            SKU Chain Dia W.L.L. M.P.F. M.B.F. Weight
            mm t kN kN kgs
            286-230-1 6 1.4 35.3 56.5 0.8
            286-230-2 7/8 2.5 62.8 100 1.1
            286-230-3 10 4 98.2 157 2
            286-230-4 13 6.7 166 265 4
            286-230-5 16 10 251 402 7.3
