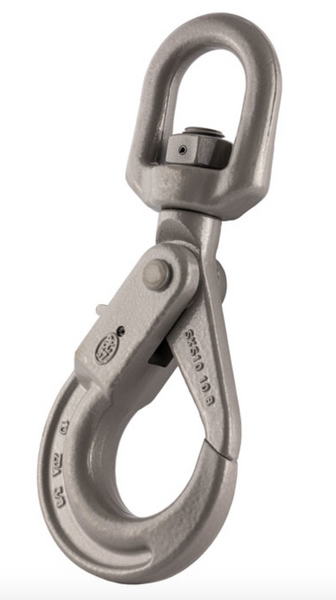

KITO - Grade 10 Swivel Self Locking Hook to BS-EN 1677-4
KITO Weissenfels SKU: 286-229-1
KITO - Grade 10 Swivel Self Locking Hook to BS-EN 1677-4
Grade 10 Swivel Self Locking Hook Grade 10 alloy steel, quenched and tempered.... Read More
KITO Weissenfels SKU: 286-229-1
Regular price
€98,92
Regular price
RRP
Sale price
TODAY'S PRICE
€98,92
Unit price
per
In stock
Tax included.
This product is NOT available Online.
Please contact us via email for availability and delivery to Europe sales@rigging-eu.com
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk
Description
Description
Grade 10 Swivel Self Locking Hook
- Grade 10 alloy steel, quenched and tempered.
- Grey painted finish.
- Meets the performance requirements of BS EN 1677-4 +25% of loads.
- Large swivel eye makes assembly easier.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification - Declaration of Conformity

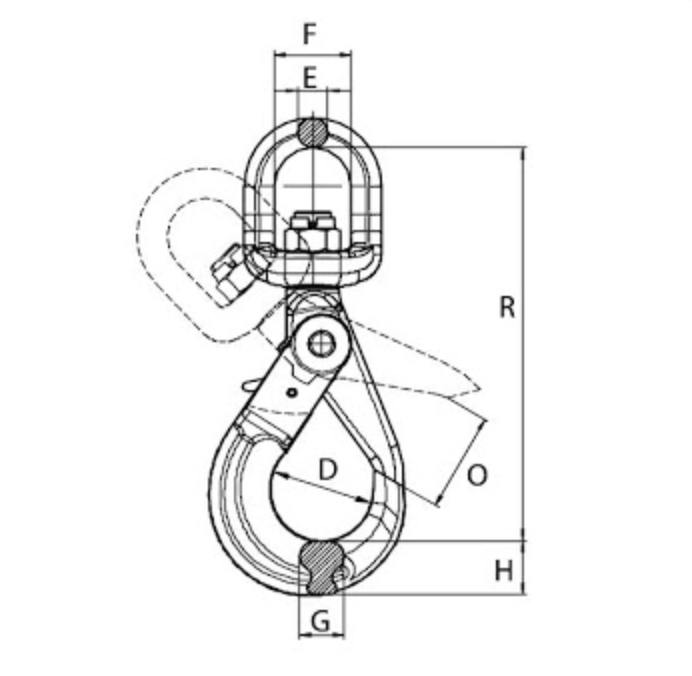

Spec
| SKU |
Part No. | Chain Dia | D | E | F | G | H | O | R |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 286-229-1 |
SKS6 | 6 | 35 | 13 | 35 | 16 | 20.5 | 28 | 160 |
| 286-229-2 |
SKS7-8 | 7/8 | 43.5 | 13 | 35 | 20 | 26 | 34 | 181 |
| 286-229-3 |
SKS10 | 10 | 56 | 16 | 42 | 24.5 | 30 | 45 | 218 |
| 286-229-4 |
SKS13 | 13 | 69 | 20 | 49 | 34.5 | 40 | 51.5 | 269 |
| 286-229-5 |
SKS16 | 16 | 80 | 24 | 60 | 35.5 | 50 | 60 | 319 |
Technical Data
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-229-1 | 6 | 1.4 | 35.3 | 56.5 | 0.8 |
| 286-229-2 | 7/8 | 2.5 | 62.8 | 100 | 1.1 |
| 286-229-3 | 10 | 4 | 98.2 | 157 | 2 |
| 286-229-4 | 13 | 6.7 | 166 | 265 | 4 |
| 286-229-5 | 16 | 10 | 251 | 402 | 7.3 |
