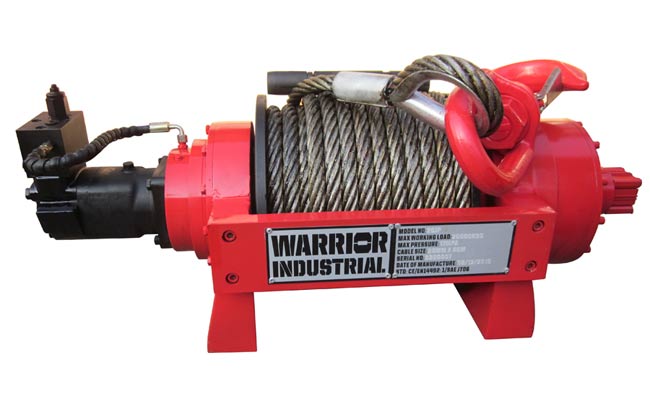

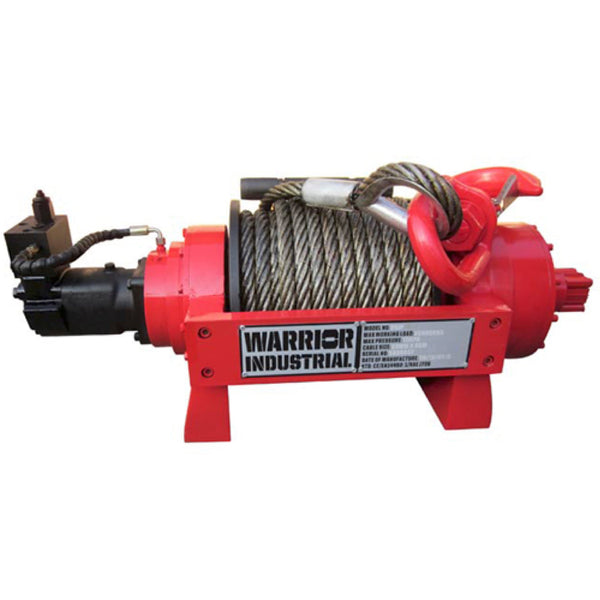

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard
| Rated Line Pull | 44092 lbs (20000 kg) |
|---|---|
| Motor | 2465 PSI (17 Mpa) |
| Gearing | 36:1 |
| Braking Action | Auto Hydraulic |
| Drum Size - Dia x L | 210 x 340mm (8.2 x 13.39 in) |
| Cable - Dia x L | 26mm x 50m (1.02 in x 164 ft) |
| Dimensions | 1224 x 640 x 420mm (48.19 x 25.2 x 16.5 in) |
| Mounting Pattern | 532 x 160/280mm (20.9 x 6.3 / 11.02 in) |
| Weight kg | 485 kg (1069 lbs) |
| Max Flow L/min | 120 |
| Max Pressure Mpa | 17 |
| Clutch | Air Clutch |
| Working Speed | 6m/min |
| Response Pressure of Arrester | <2.5 Mpa |
| Certification | CE Certified |
