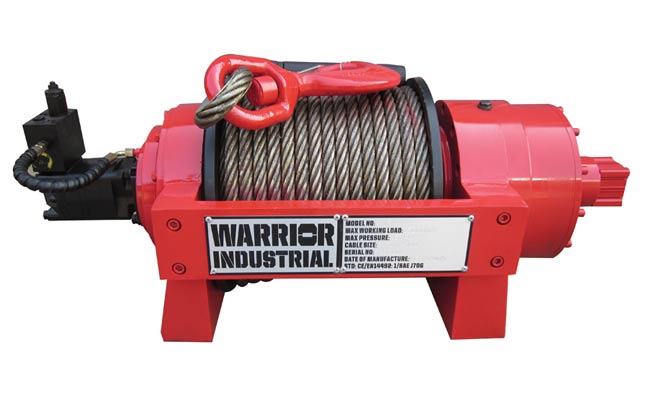

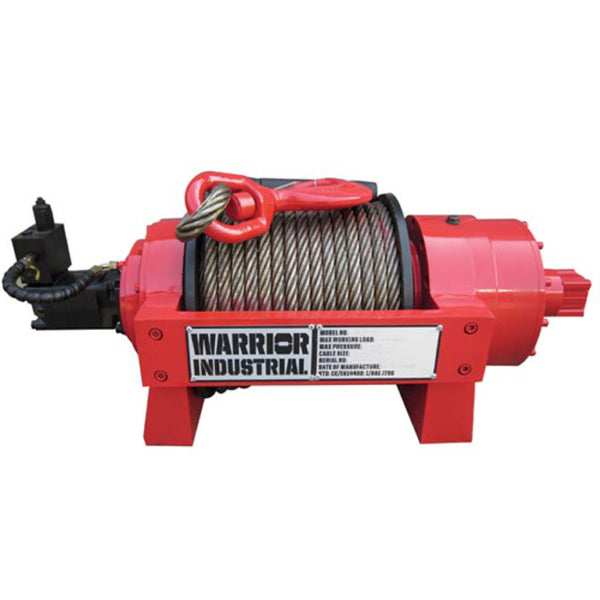

JP 13 Industrial Hydraulic Winch 29762 lbs (13500 kg)

Name: JP 13 Industrial Hydraulic Winch 29762 lbs (13500 kg)
Brand: Warrior Winches
SKU: 161-15-2
Price: 5729.19 EUR
Availability: OutOfStock

Warrior Winches SKU: 161-15-2

1 2

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard.... Read More

€5.729,19

RRP TODAY'S PRICE €5.729,19

Out of stock (0)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard

Outstanding Features

Full Float Heavy Duty Planetary Gearing
Multi Disc Friction Brake
High Torque Industrial Motor
Air and Manual Clutch Operation
Heavy Duty Rope Tensioner as Standard
Minimum 10:1 Rope/Drum Ratio
Balance Valve as Standard

ACCESSORIES INCLUDED

JP 13 Industrial Hydraulic Winch Accessories

Specification

Rated Line Pull	29762 lbs (13500 kg)
Gearing	36:1
Braking Action	Auto Hydraulic
Drum Size - Dia x L	190 x 340mm (7.48 x 13.39 in)
Cable - Dia x L	18mm x 50m (0.71 in x 164 ft)
Dimensions	1050 x 640 x 405mm (41.34 x 25.2 x 15.9 in)
Mounting Pattern	522mm x 180/280mm (20.5 x 7/11 in)
Weight kg	315 kg (694 lbs)
Max Flow L/min	60 L/min
Max Pressure Mpa	170 Bar
Clutch	Air Clutch
Certification	CE Certified
