Warrior Winches

JP 10 Industrial Hydraulic Winch 22000 lbs (10000 kg)

Name: JP 10 Industrial Hydraulic Winch 22000 lbs (10000 kg)
Brand: Warrior Winches
SKU: 161-15-1
Price: 4380.10 EUR
Availability: OutOfStock

SKU: 161-15-1

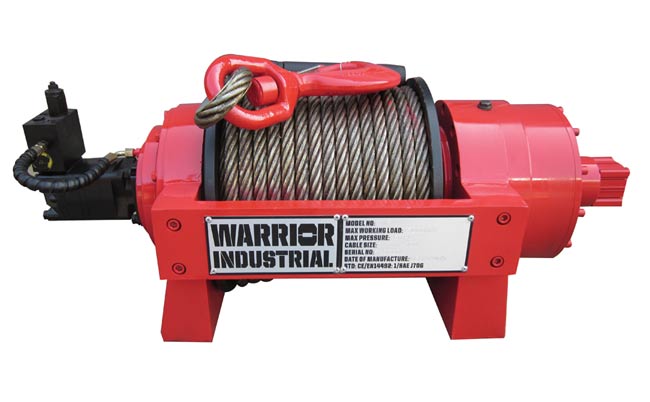

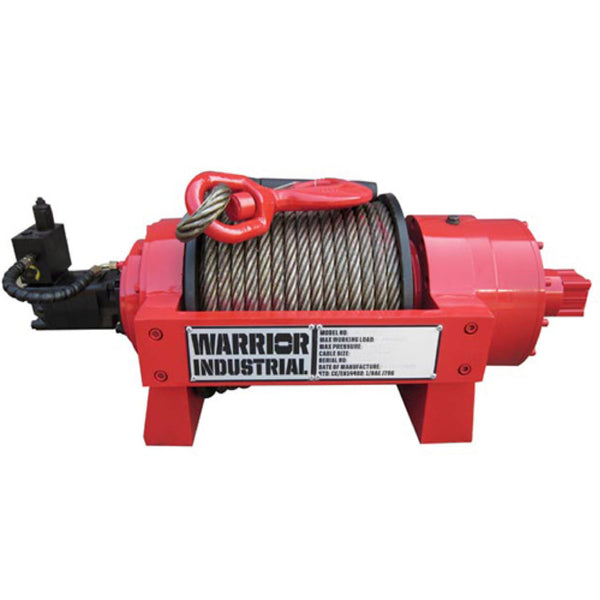

JP 10 Industrial Hydraulic Winch 22000 lbs (10000 kg)

SKU: 161-15-1

€4.380,10

RRP TODAY'S PRICE €4.380,10

Out of stock (0)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Description

DESCRIPTION

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard

Outstanding Features

Full Float Heavy Duty Planetary Gearing
Multi Disc Friction Brake
High Torque Industrial Motor
Air and Manual Clutch Operation
Heavy Duty Rope Tensioner as Standard
Minimum 10:1 Rope/Drum Ratio
Balance Valve as Standard

ACCESSORIES INCLUDED

JP 10 Industrial Hydraulic Winch Accessories Included from RiggingUK

Spec

Rated Line Pull	22000 lbs (10000 kg)
Gearing	39:1
Braking Action	Auto Hydraulic
Drum Size - Dia x L	138 x 316mm (5.43 x 12.44 in)
Cable - Dia x L	15mm x 48m (0.59 in x 157 ft)
Dimensions	830 x 390 x 320mm (32.6 x 15.3 x 12.6 in)
Mounting Pattern	431 x 64 / 192 mm (16.9 x 2.5/7.5 in)
Weight kg	188 kg (414.4 lbs)
Clutch	Air Clutch
Certification	CE Certified

Layer of Rope/Cable	Line Pull: lbs(kgs)
1	22046 (10000)
2	16889 (7661)
3	14615 (6630)
4	12881 (5843)

Line Pull lbs (kgs)	Line Speed ft/min (m/min)	Flow L/min (G/min)	Pressure Mpa
0	5.9 (1.8)	15	25
4000 (1814)	11.7(3.6)	30	42
8000 (3629)	19.6 (6.0)	50	85
15000 (6804)	23.6 (7.2)	60	140
22046 (10000)	29.7 (9.0)	75	175
