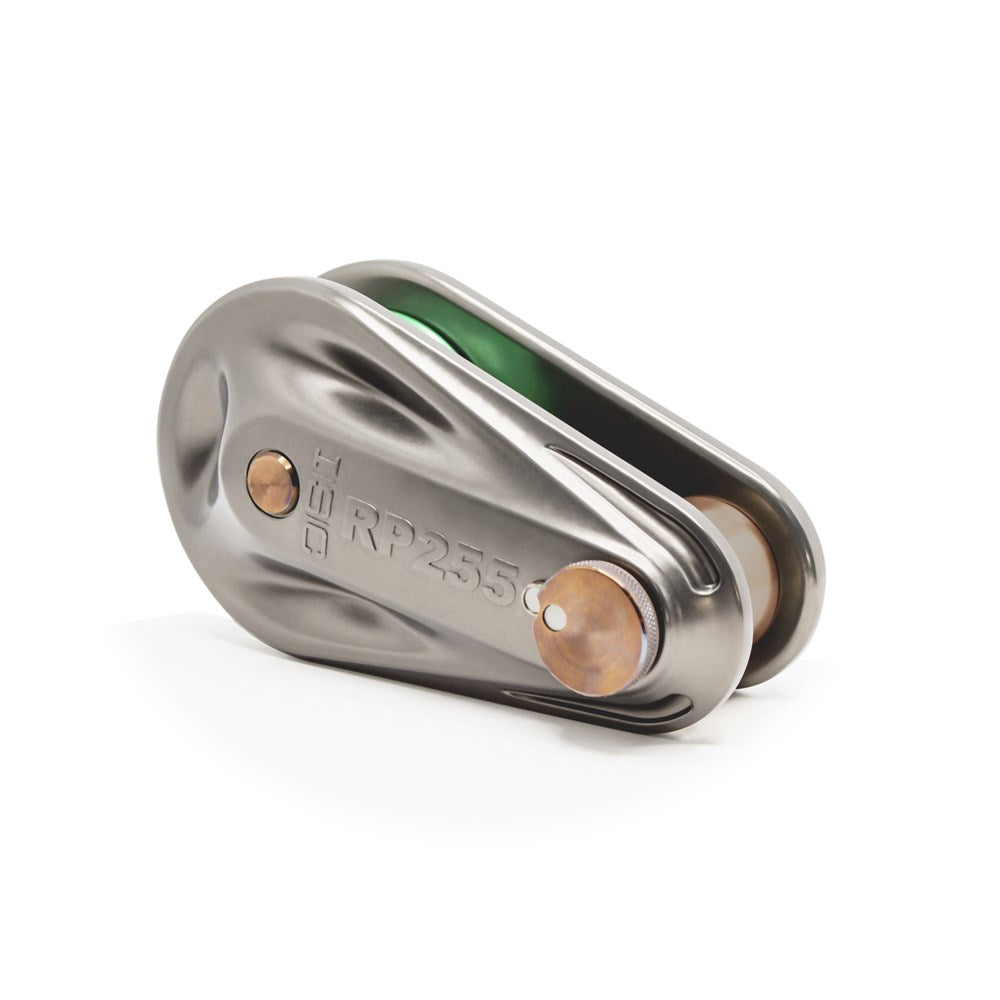

ISC Medium Rigging Pulley for 20mm Rope - 300kN

Part of the new ISC 200 Series..

The next generation ISC Rigging Pulleys are up to 150% stronger than the equivalent ISC standard Rigging Pulley models.

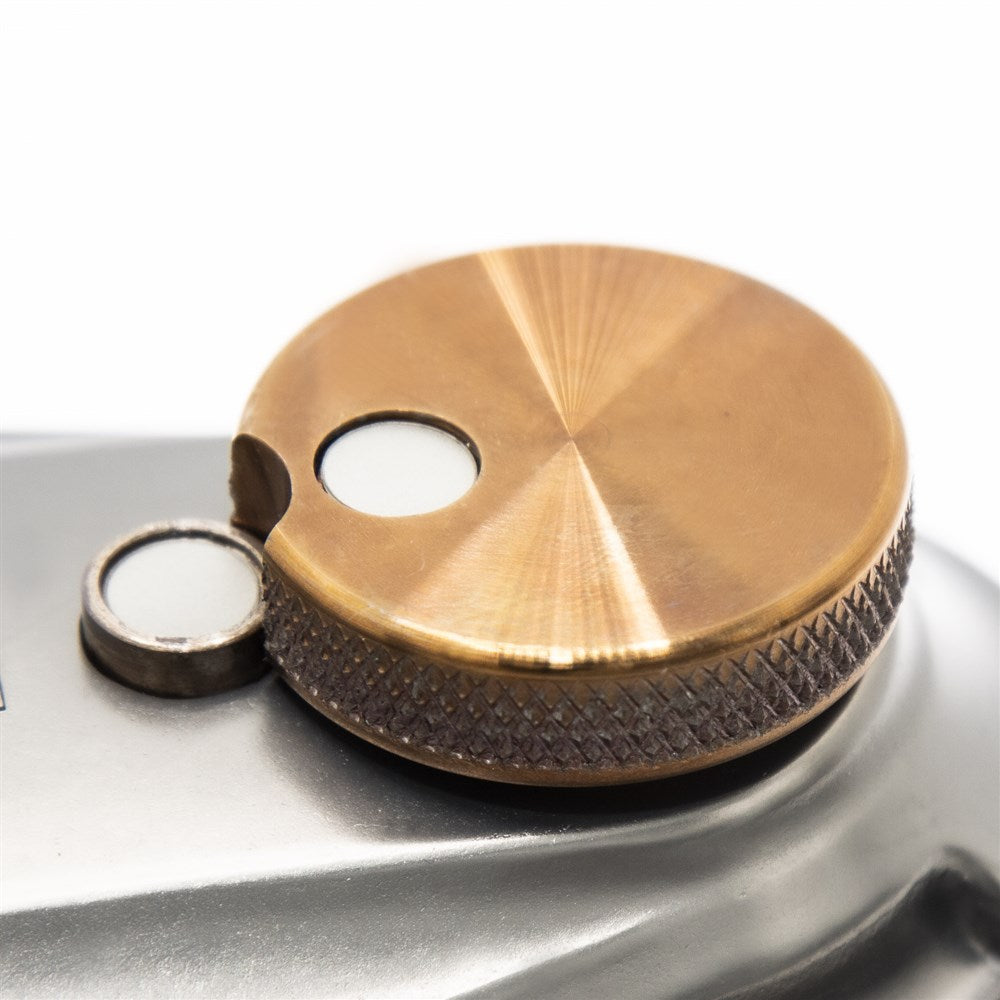

The new low-profile Springlock mechanism features a new Safelock locking button to offer further security and ease of use. Simply push the Safelock button and turn the axle head 180° to the release position. The Safelock button can be depressed and the pin head rotated in a continuous one-handed action. When the device is in the open position, the locking pin on the axle is retained in the correct alignment. This means that the user does not need to rotate the axle in order to correctly align the axle pin with the groove in the pulley plate, in order to close the device. Once the axle is fully depressed and the axle spring is fully compressed, the axle head must then be rotated 180° (in either direction), at which point the Safelock button engages to lock the axle head in place.

ISC Rigging Pulleys are designed and manufactured in the UK.

Compatible with rope diameter (mm): Maximum 20mm (3/4")
(MBS) Minimum Breaking Strength (kN): 300
(MBS) Minimum Breaking Strength (lbf): 67442
Serial numbering: As standard
Pulley wheel colour: Green
Finish: Anodised
Weight (grams): 2682
Weight (ounces): 94.6 (5.9lb)

Approved Standards

CE Machinery Directive 2006/42/EC
UKCA Supply of Machinery (Safety) Regulations 2008

Notes

WLL 60kN (13488lbf)
