IMER TR225 Scaffold Hoist Complete Kit 200kg- 110v

IMER SKU: 294-1-15

1 3

IMER TR225 Scaffold Hoist Complete Kit 200kg- 110v

IMER TR225 Scaffold Hoist Complete Kit with Extendable Bracket 200kg - 110v - 30m High Capacity The TR225N heavy duty IMER Scaffold Hoist is designed for use in industrial or... Read More

IMER SKU: 294-1-15

€2.398,29

RRP TODAY'S PRICE €2.398,29

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

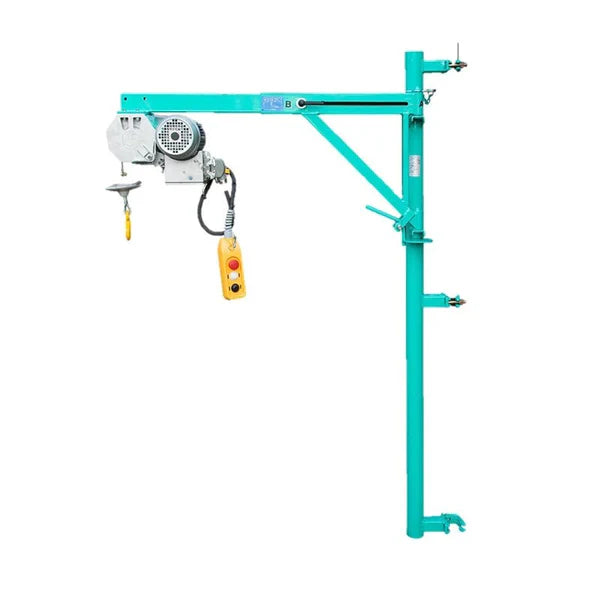

IMER TR225 Scaffold Hoist Complete Kit with Extendable Bracket 200kg - 110v - 30m High Capacity

The TR225N heavy duty IMER Scaffold Hoist is designed for use in industrial or construction applications and is the perfect choice by many of the leading rental companies.

Fitted with front loading drum – this reduces the risk of bunching when used on scaffolding that is not perfectly straight.

This Scaffold Hoist has a lifting capacity of 200kg and a lifting height of 30m.

• Work positioning lever

• IP67 plug

• 31m Wire Rope

• Motor Speed 1360/1380rpm
• Trolley available for use with a gantry
• Upper limit safety device
• Self-braking motor

• Telescopic Frame can be extended from 720mm to 1120mm

• Includes TR225N Pendant (294-1-13)

• Comes with 1.8m Scaffold attachment (294-1-5)

110v (294-1-15) and 230v (294-1-16) versions available.

Available to buy as Hoist ONLY (without Scaffold Attachment and Pendant): 110v (294-1-11) and 230v (294-1-12).

Spec

Spec for Scaffold Hoist ONLY.

SKU		294-1-15
Max Capacity	kg	200
Av. Full Load Lifting Speed	m/min	19
Max. Working Height	m	30
Steel Rope Dia.	mm	5
Rope Length	m	31
Electric Power Supply	V /Hz	110 / 50 Sph
Motor Power Rate	kW	0.75
Motor Speed	rpm	1380
Running Current 230v (110v)	A	7.2 (14)
Weight	kg	46
Dimensions w/l/h	mm	330/770/520
Packing Dimensions w/l/h	mm	350/820/500
