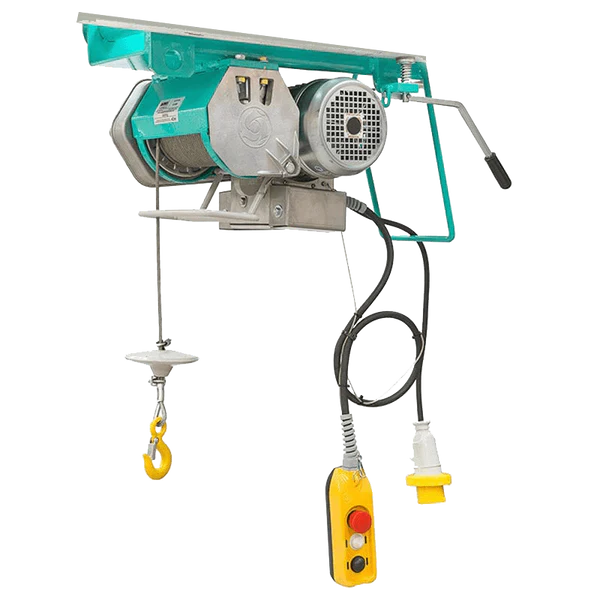

IMER G500 Scaffold Hoist 500kg - 110v

IMER SKU: 294-2-13

1 1

IMER G500 Scaffold Hoist 500kg - 110v

IMER G500 Scaffold Hoist 500kg - 110v - 42m High Capacity Stand hoist. Single-phase 110V/50Hz electric motor. Average full load lifting speed: 17 m/min. Max. capacity 500kg Thanks to their... Read More

IMER SKU: 294-2-13

€2.833,39

RRP TODAY'S PRICE €2.833,39

Out of stock (0)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

IMER G500 Scaffold Hoist 500kg - 110v - 42m High Capacity

Stand hoist. Single-phase 110V/50Hz electric motor. Average full load lifting speed: 17 m/min. Max. capacity 500kg

Thanks to their sturdy structure and powerful motor, G500 and G1000 are particularly suitable for heavy duty use on site.

Single-phase 110V/50Hz electric motor
IP67 plug
Frame with 4 steel wheels
Upper limit safety device
Direct control with 3-push button IP65 1.5-m pendant control
Positioning brake
Self-braking motor with magnetic device

SCAFFOLD HOIST ONLY.

Available to buy as part of a Complete Gantry Hoist Kit (294-2-21)

110v (294-2-13) and 230v (294-2-14) versions available.

Spec

SKU		294-2-13
Max Capacity	kg	500
Av. Full Load Lifting Speed	m/min	17
Max. Working Height	m	42
Steel Rope Dia.	mm	6
Rope Length	m	43
Electric Power Supply	V /Hz	230 / 50 Sph 230 / 60 SPh 110 / 50 Sph
Motor Power Rate	kW	1.5
Motor Speed	rpm	1320
Running Current 230v (110v)	A	12 (23)
Weight	kg	71
Dimensions w/l/h	mm	382/800/410
Packing Dimensions w/l/h	mm	400/820/440

Downloads

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

what size generator would you need to run this item?

I would say a 3KW will do the job. Below is the rating of the motor, also depends on load and usage.
