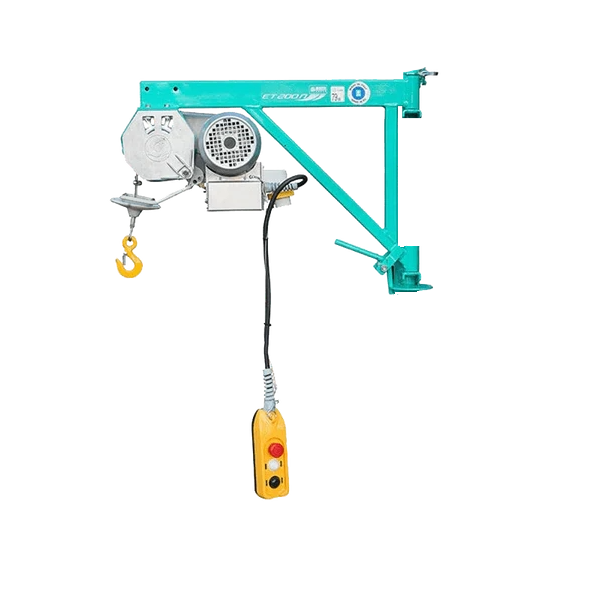

IMER ET200 Scaffold Hoist 200kg - 110v - 30m High Capacity
IMER Scaffold Hoists are the perfect, high-end equipment for any scaffolding job! IMER Scaffold Hoists are often used by large and small contractors alike.
This pivoting 200kg electric hoist with a lifting height of 30m is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely.
It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook.
The ET200 IMER Scaffold Hoist - 200Kgs is supplied with a top mounting bracket and the Scaffold connection pole from Imer is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. The hoist is a 110-volt power supply and is supplied with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from over lifting of goods.
110v (294-1-4) or 230v (294-1-3) versions available.
Scaffold Hoist ONLY, not the complete kit (see 294-1-6 or 294-1-7 for complete kits).
| SKU | 294-1-4 | |
| Max Capacity | kg | 200 |
| Av. Full Load Lifting Speed | m/min | 19 |
| Max. Working Height | m | 30 |
| Steel Rope Dia. | mm | 5 |
| Rope Length | m | 31 |
| Electric Power Supply | V /Hz |
110 / 50 Sph |
| Motor Power Rate | kW | 0.75 |
| Motor Speed | rpm | 1380 |
| Running Current 230v (110v) | A | 7.2 (14) |
| Weight | kg | 42 |
| Dimensions w/l/h | mm | 330/770/520 |
| Packing Dimensions w/l/h | mm | 350/820/500 |
