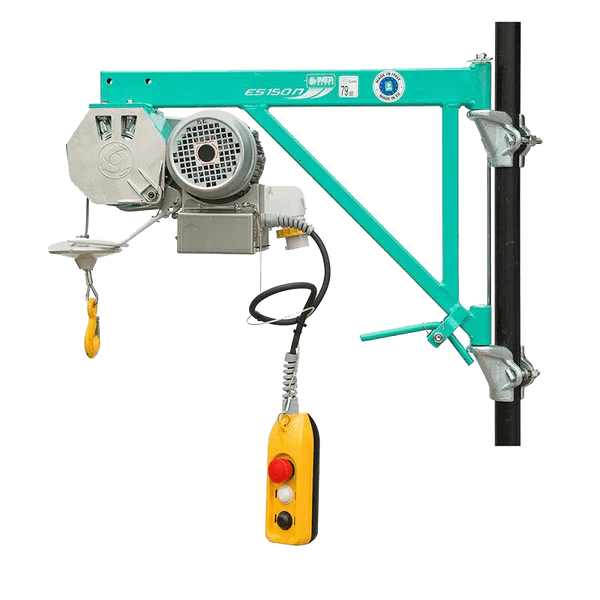

IMER ES150 Scaffold Hoist 150kg - 110v

IMER SKU: 294-1-2

1 5

IMER ES 150 NEO Scaffold Hoist 150kg - 110v - 30m High Capacity The ES 150 NEO IMER Scaffold Hoist - 150Kgs from IMER is a quality, reliable industry favourite site hoist. 150... Read More

€1.544,66

RRP TODAY'S PRICE €1.544,66

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

IMER ES 150 NEO Scaffold Hoist 150kg - 110v - 30m High Capacity

The ES 150 NEO IMER Scaffold Hoist - 150Kgs from IMER is a quality, reliable industry favourite site hoist. 150 kg capacity, boasting a lifting height of 30m and a fast lifting speed of 18.5m/min. 110-volt power supply and waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from the over the lifting of goods.

IP67 plug
Trolley available for use with a gantry
Upper limit safety device
Direct control with 3-pushbutton IP65 1.5 m pendant control
Scaffold clamps

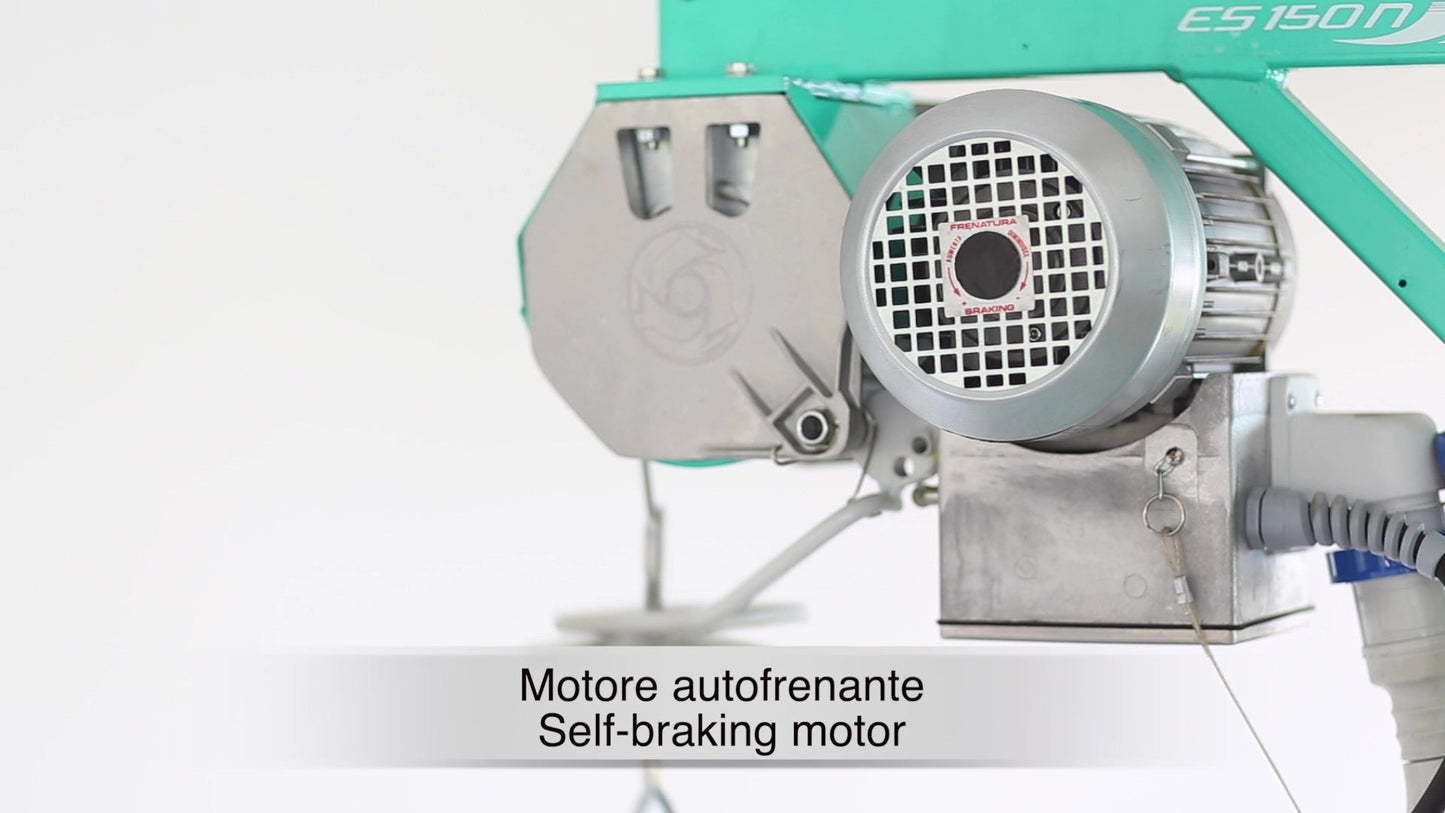

Self-braking motor

Please note some images show 230v connector, these are not standard supply within the UK market and are shown for illustration purposes only.

SCAFFOLD HOIST ONLY

110v and 230 versions available.

For 110v Please order SKU 256-1-2 and 230v please order SKU 256-1-1

Spec

SKU		294-1-2
Max Capacity	kg	150
Av. Full Load Lifting Speed	m/min	19
Max. Working Height	m	30
Steel Rope Dia.	mm	5
Rope Length	m	31
Electric Power Supply	V /Hz	110 / 50 Sph (294-1-2)
Motor Power Rate	kW	0.45
Motor Speed	rpm	1310
Running Current 230v (110v)	A	4.8 (14)
Weight	kg	39
Dimensions w/l/h	mm	330/770/520
Packing Dimensions w/l/h	mm	350/820/500
