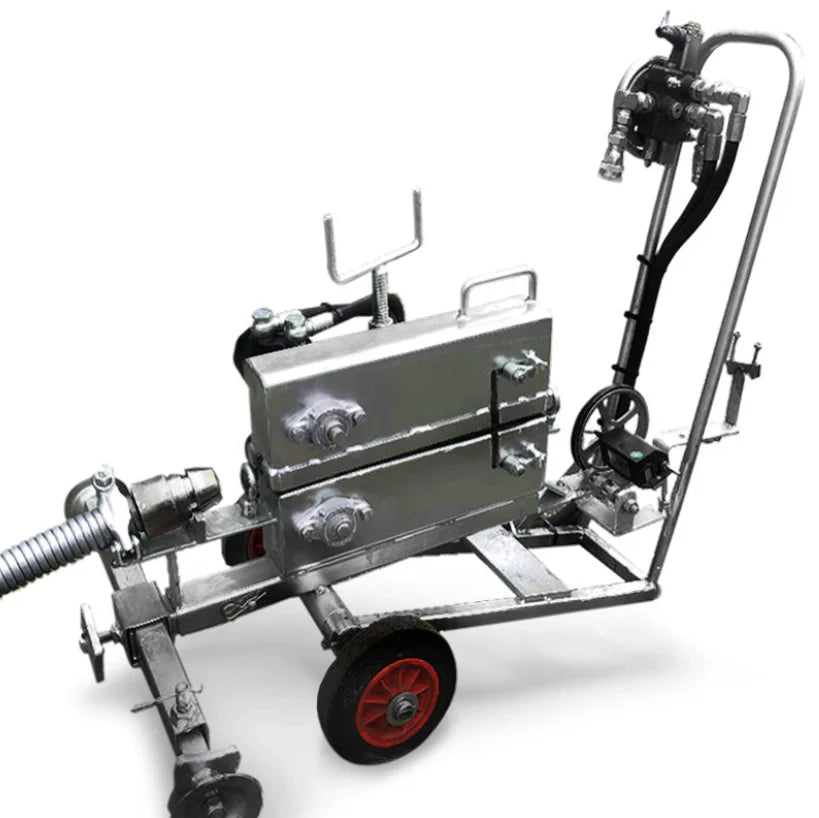

FEATURES
- Spring loaded self-centering fail safe operating lever.
- Measuring counter with reset lever.
- Front boom extending to 900mm with angle facility dropping into underground chamber.
- Extendable chamber clamp for attaching to sidewalls.
- Range 560mm-970mm
- Angle of operations 0-45°.
- Split pusher body which lifts and rotates to allow removal of duct rod.
- Screw clamp to engage drive belts onto the rod.
- Steel body.
- Moulded profiled drive belts.
- Protective rod guide to clean/guide rod.
TECHNICAL
Rod Diameter Range: 9mm, 11mm & 14mm
Installation Speed: 0-15min
Pushing/Pulling capacity: 220Kgs
Length: 1025mm
Width: 560mm
Height: 1025mm
Weight: 79Kgs
Installation Speed: 0-15min
Pushing/Pulling capacity: 220Kgs
Length: 1025mm
Width: 560mm
Height: 1025mm
Weight: 79Kgs
