Hoist Power & Low Voltage Control Cable Looms - 16A Male To Female 4-PIN CEE FORM TYPE - are specifically designed for use with low voltage control electric chain motors in Production Event Technology and Theatrical applications.

Our power and low voltage control cable looms come in a range of lengths, designed specifically for use in semi-permanent applications in entertainment venues, theatres and festivals. The 16A Male To Female 4-PIN CEE FORM TYPE cables are ideal for connecting powered chain motors (electric chain hoists) to power and control distribution controllers.

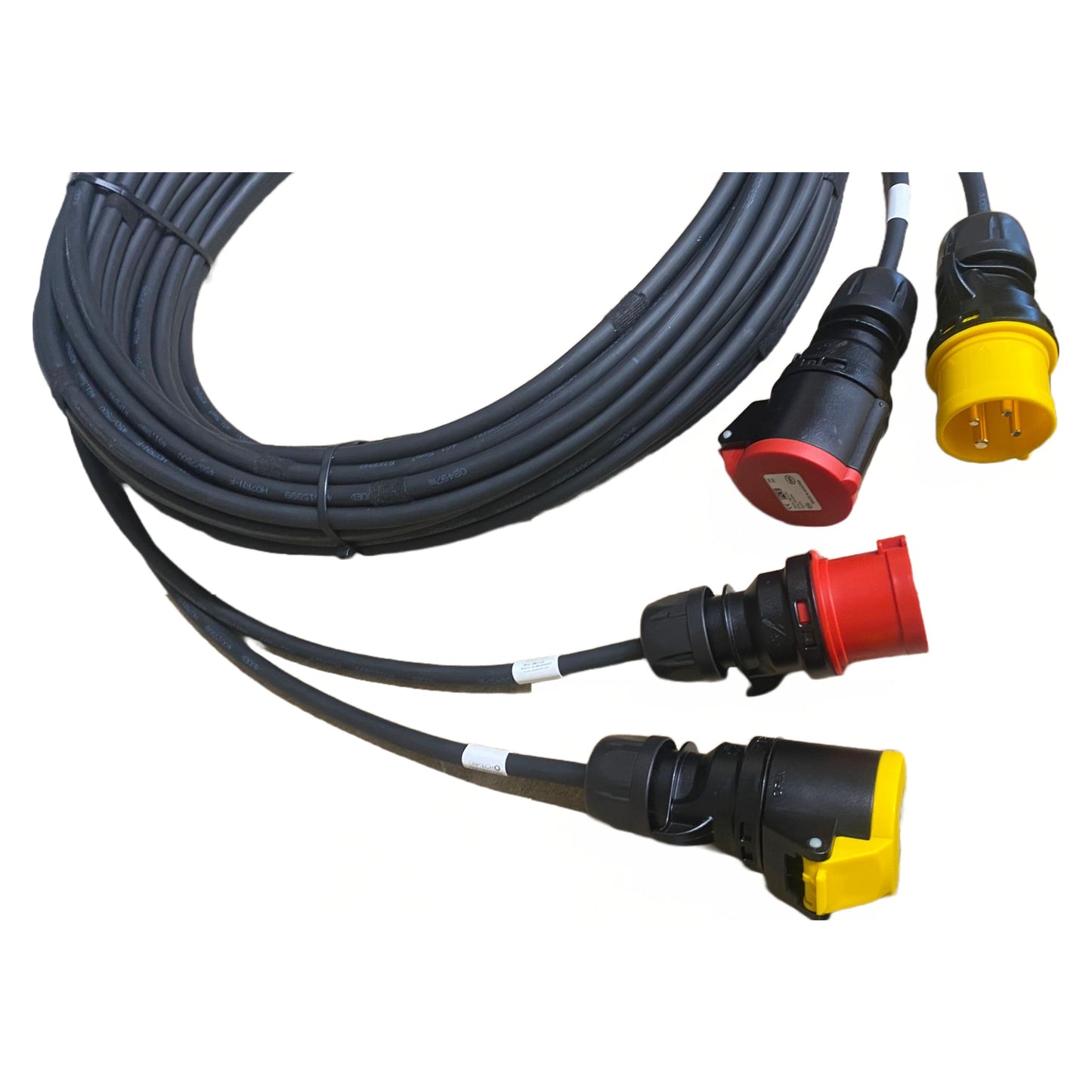

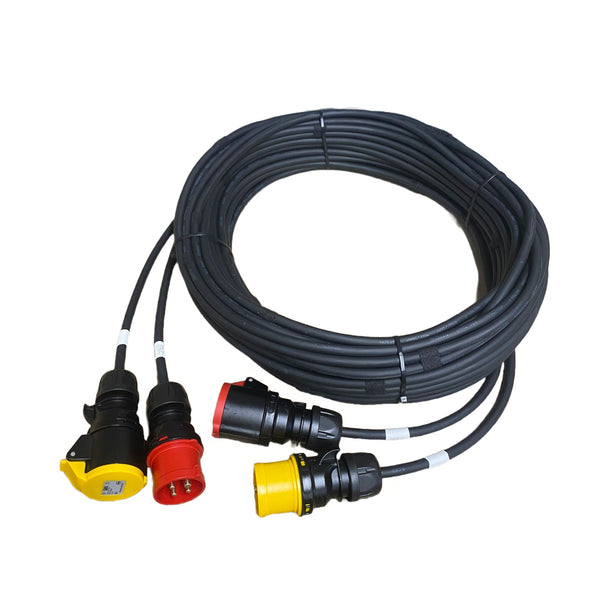

This power and low-voltage control cable loom features a 415V, 4-pin, 16A red PCE CEE plug-to-socket cable bundled together with a 110V, 4-pin, 16A yellow PCE CEE socket-to-plug cable. It is constructed using 1.5mm H07-RNF flexible cable and is outfitted with PCE Midnight Range CEE connectors, making it suitable for electric chain hoists fitted with limit switches.

Every cable set is tested after manufacturing, ensuring no hold ups on site.

The Giraffe Motor cable sets (motor looms) are available from STOCK in 5, 10, 15, 20, 25, 30 and can be purchased via our web site. Larger quantities are available upon request.

** 35, 40, 45, 50, 55 and 60m lengths are made to order, please allow 3 to 4 days depending on quantities, all enquires for larger quantities or longer lengths can be made to sales@rigginguk.co.uk

**********************************************************************************************

Giraffe standard CEE cable sets are available in various lengths and consist of either:

[1] a single power extension cable with 4 PIN CEE connectors at either end,

[2] a single low voltage control extension cable with 4 PIN CEE connectors at either end or

[3] a power and control extension cable strapped together (cable set / cable loom) with 4 Pin CEE Connectors at either end.

We can also supply cable sets with Harting Type or Socapex connectors - also break out spiders to allow multipin connectors to be plugged in then distributed to several CEE connectors and 5 Pin mains extension cables.

Brought to you by Giraffe Controls
