High Tensile Dynamo Eyebolt Metric Thread

GT SKU: 286-622-1

1 3

High Tensile Dynamo Eyebolt Metric Thread

High Tensile Dynamo Eyebolt Metric Thread Drop forged, high tensile steel, heat treated. Self colour and electro galvanised finish. Meets... Read More

GT SKU: 286-622-1

€3,62

RRP TODAY'S PRICE €3,62

In stock (10)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

High Tensile Dynamo Eyebolt Metric Thread

Drop forged, high tensile steel, heat treated.
Self colour and electro galvanised finish.
Meets the W.L.L. performance requirements of BS 4278.
Minimum breaking load is 5 times the W.L.L.
Marked with CE, W.L.L, size and product ID mark.
To be used for vertical lifting only.
Supplied with Certification.

Spec

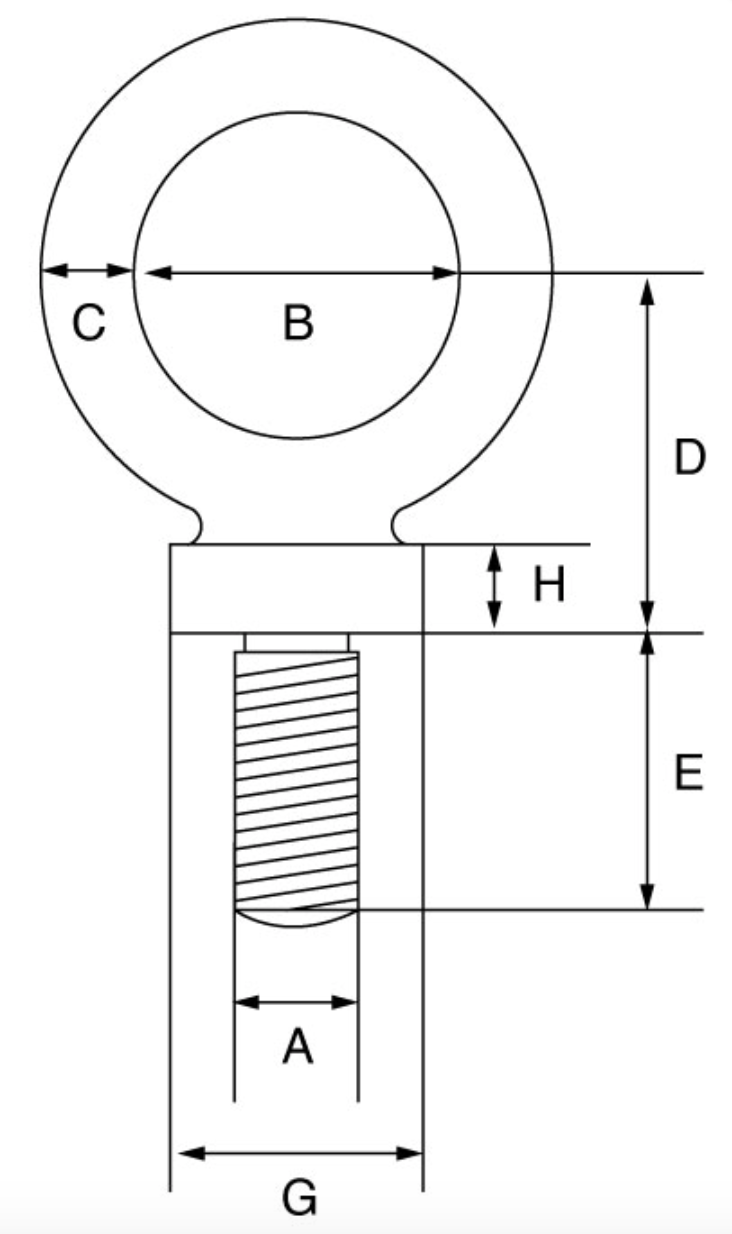

SKU	W.L.L.	A	B	C	D	E	G	H	Weight
	t	mm	mm	mm	mm	mm	mm	mm	kgs
286-622-1	0.1	6	22	9	27	18	17	5	0.07
286-622-2	0.15	8	22	9	27	18.5	17	5	0.07
286-622-3	0.25	10	22	9	27	18.5	17	5	0.07
286-622-4	0.32	12	22	9	27	18.5	17	5	0.07
286-622-5	0.63	16	29	11	34	23.5	23	6	0.14
286-622-6	1.25	20	40	15	47	33	32	9	0.4
286-622-7	2	24	51	19	60	41	40	12	0.8
286-622-8	3.2	30	64	24	76	51	51	14	1.72
