High Tensile Collared Eyebolt with UNC Thread

SKU: 286-621-1

High Tensile Collared Eyebolt with UNC Thread

SKU: 286-621-1

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigging-eu.co.uk

0% Finance Available

Through PayPal Credit - Find out more

View full details

Description

High Tensile Collared Eyebolt with UNC Thread

Drop forged, high tensile steel, heat treated.
Self colour and electro galvanised finish.
Meets the W.L.L. performance requirements of BS 4278.
Minimum breaking load is 5 times the W.L.L.
Marked with CE, W.L.L, size and product ID mark.
For further clarification on reductions for non-axial loading, please consult RiggingUK
Supplied with an EC declaration of conformity

Spec

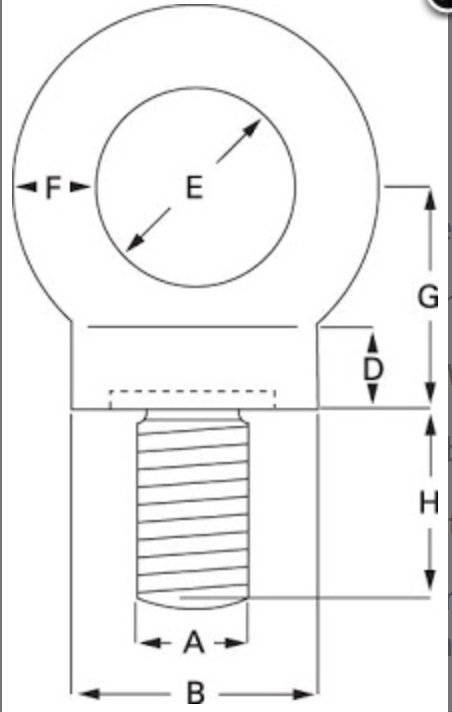

SKU	W.L.L.	A	B	C	E	F	G	H	Weight
	t	inch	mm	mm	mm	mm	mm	mm	kgs
286-621-1	0.25	3/8	22	7	15	9	20	17	0.06
286-621-2	0.5	1/2	29	10	20	12	26	22	0.07
286-621-3	0.9	5/8	36	12	24	14	32	28	0.14
286-621-4	1.4	3/4	45	15	30	18	40	33	0.28
286-621-5	2	7/8	52	17	35	21	46	39	0.6
286-621-6	2.75	1	58	20	39	23	52	44	1.1
286-621-7	3.5	11/8	64	21	42	25	57	50	1.6
