TIGER - SF-2200 - HEAVY DUTY INDUSTRIAL WINCH 1000KG/2000KG

Name: TIGER - SF-2200 - HEAVY DUTY INDUSTRIAL WINCH 1000KG/2000KG
Brand: Tiger Products
SKU: 158-5-1
Price: 526.29 EUR
Availability: InStock

Tiger Products SKU: 158-5-1

1 1

HEAVY DUTY INDUSTRIAL WINCH 1000KG/2000KG Data Sheet : SF-2200 INDUSTRIAL RATCHET HANDLE WINCH Lifting Capacity: 2200lb/1000kg Pulling Capacity: 4400lb/2000kg Ratchet Handle: Allows for reciprocating movement in both directions, facilitating easy lifting and lowering of loads Safety Feature: Positive load-actuated brak Read More

€526,29

RRP TODAY'S PRICE €526,29

In stock (1)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

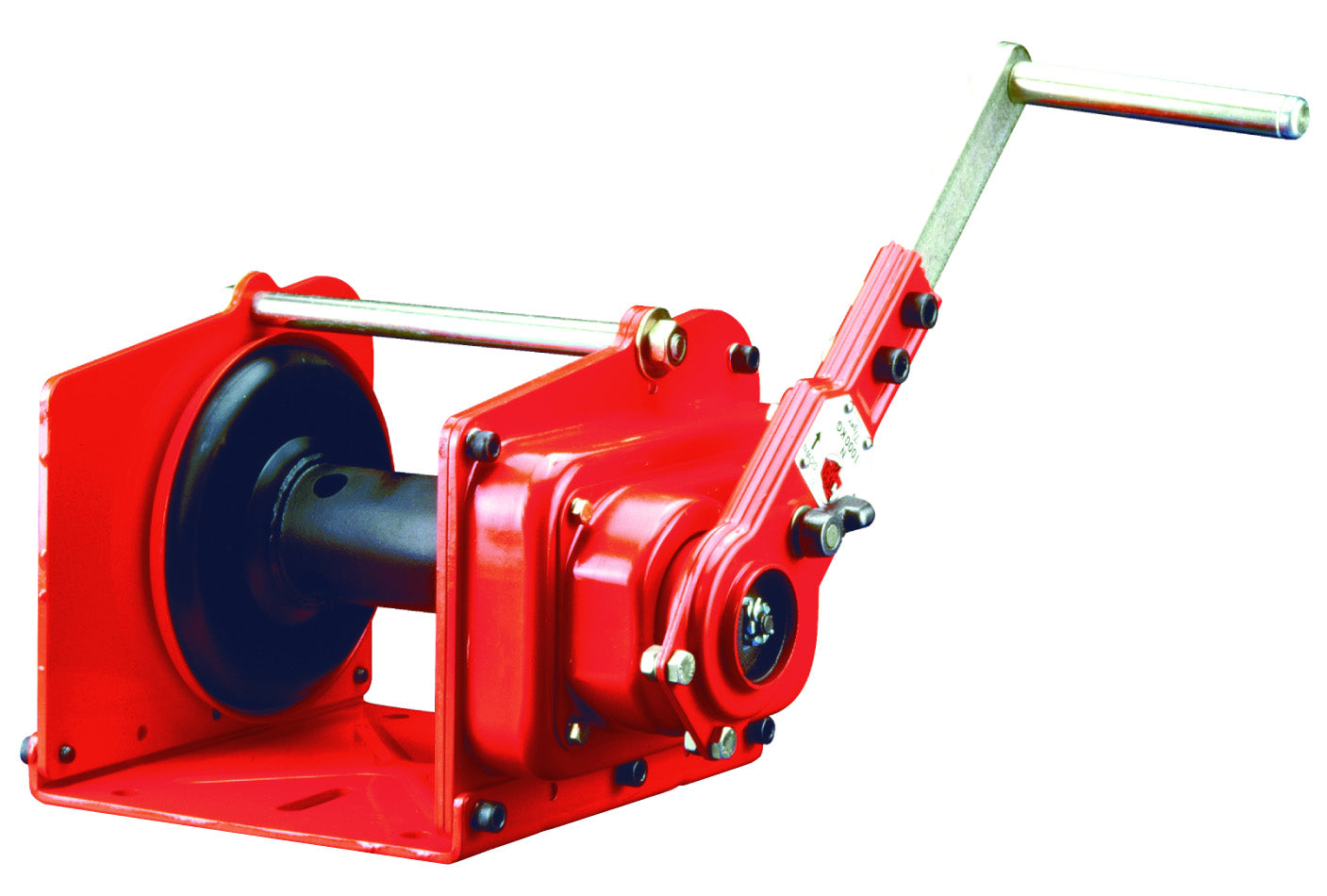

HEAVY DUTY INDUSTRIAL WINCH 1000KG/2000KG

Data Sheet :

SF-2200 INDUSTRIAL RATCHET HANDLE WINCH

Lifting Capacity: 2200lb/1000kg
Pulling Capacity: 4400lb/2000kg
Ratchet Handle: Allows for reciprocating movement in both directions, facilitating easy lifting and lowering of loads
Safety Feature: Positive load-actuated brake holds the load securely in any position
Protection: Fully covered gears and brake to prevent contamination from dust, dirt, and rain
Ease of Use: Requires very low operator effort for smooth and efficient operation
Versatility: Ratchet handle design allows installation in tight spaces, such as walls and floors
Operating Temperature Range: -40°C to +80°C

Specification

Product Code	Pulling Capacity (lbs/kg)	Lifting Capacity (First Layer)	Lifting Capacity (Last Layer)	Hand Force Required (kg)	Gear Ratio	Hub Diameter (mm)	Handle Length (mm)	Unit Weight (with handle) (kg)	Unit Weight (with loop)	Cable Diameter (mm/inch)	Cable Storage Cap. (m)	Technical Drawing
158-5-1	4400/2000	2200/1000		10	22.2:1	Ø80	300	17.5		Ø8.0/Ø5/Ø16	32

Travel per crank handle revolution top layer – 21mm

Travel per crank handle revolution bottom layer – 11mm

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
