Heavy Duty Ground anchors for securing equipment in adverse weather. Strong, reliable fixings to hold kit firmly in place. Ideal for outdoor use. Fast UK delivery.

Ground anchors can be used for a wide range of applications, including securing capstan winches, commercial pulling machines, canal boats, marquees, tents and tarpaulins, scaffolding, staging and camera towers and more.

This UK manufactured type of ground anchor can be rapidly deployed and removed by using a simple tightening bar or our specially designed ground anchor driving tool, saving time and labour.

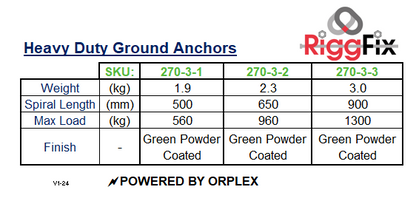

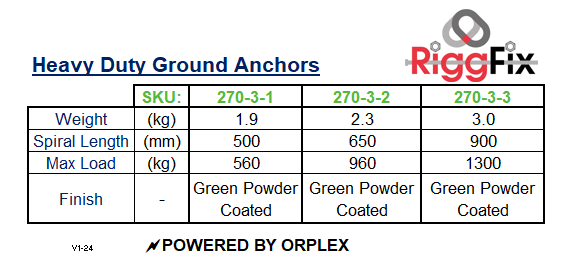

HOLDING POWER- 560kg, 960kg or 1300kg
GREEN POWDER COATED

Heavy duty ground anchors can be utilised as anchorage for a multitude of requirements:

• CAPSTAN WINCHES
• COMMERCIAL PULLING WINCHES
• CANAL BOATS
• MARQUEES AND INFLATEABLES
• STAGING AND CAMERA TOWERS
• SCAFFOLDING
• CIRCUS TENTS
• GRANDSTAND SEATING
• RESISTANCE BAND GARDEN ANCHOR

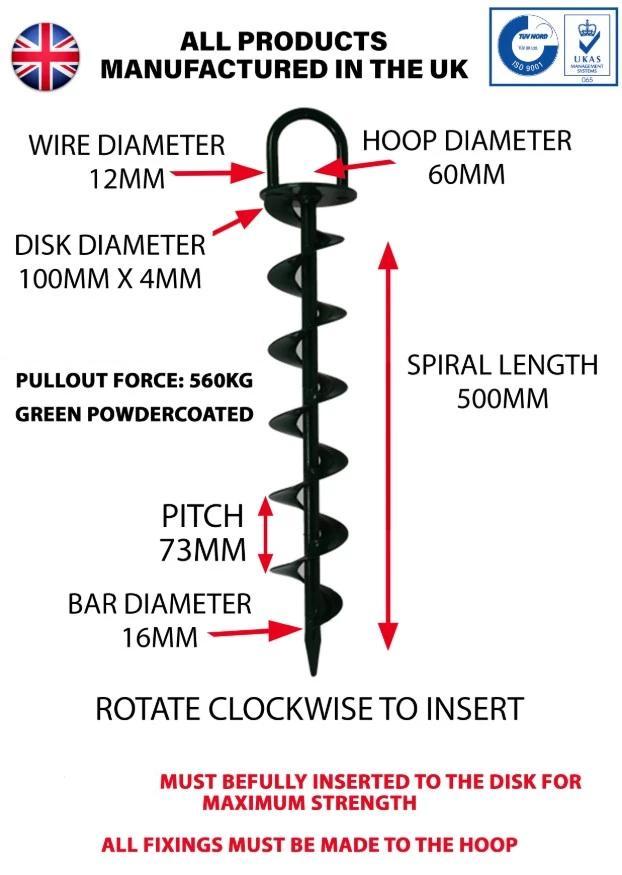

The range is manufactured in three different flite lengths, 500mm, 650mm and 900mm, offering a range of holding capabilities, from 5.60kn to 12.60kn.

The calculations for holding capabilities were all carried out at a 45 Degree angle.

They can be installed and removed in seconds and used again and again making a cost effective and environmental solution for your anchorage and security requirements.

The spiral when fully inserted compresses the base plate to the ground, the combined elements create an extremely strong and durable design, to hold in worst case ground conditions

Other ground anchorage systems on the market today can not be retrieved without intensive excavations; these are often left in the ground creating a long term soil contamination.

Need help driving the anchor home, then try our:

 Heavy Duty Manual Driver Tool

If you need a smaller ground anchors, try our 250mm or 400mm length models.
