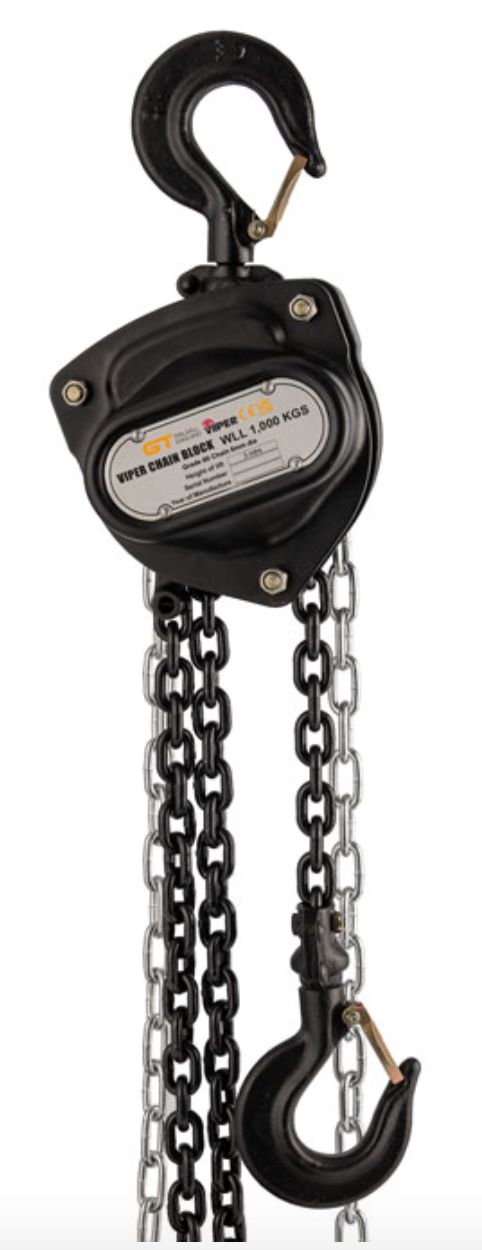

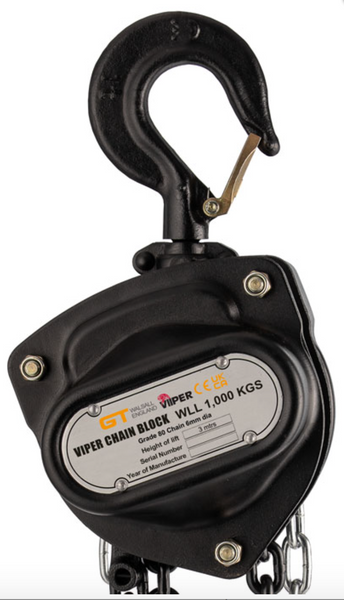

1.0t GT Chain Block - Model Viper

GT Viper SKU: 286-501-1

1 3

GT Viper Chain Block 1,000kg Capacity Each hoist is made with high performance materials for extra durability. Matt black finish. Meets the W.L.L. performance requirements of BS EN 13157. Minimum break load 4 times the W.L.L. Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of Read More

€206,31

RRP TODAY'S PRICE €206,31

In stock (1)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

GT Viper Chain Block 1,000kg Capacity

Accompanying product image

Each hoist is made with high performance materials for extra durability.
Matt black finish.
Meets the W.L.L. performance requirements of BS EN 13157.
Minimum break load 4 times the W.L.L.
Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
Electro galvanised calibrated hand chain.
The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
Top and bottom hooks with heavy duty cast catches.
For heights of lift above 12 mtrs please consult Orplex for technical advice and product guidance.
Whilst fleeting or cross hauling is not recommended practice, these items can be used in accordance within the specific safety guidelines for this purpose –please check our attached manufacturers guidance
Marked in accordance with BS EN 13157.
Certification available

Spec

SKU					Capacity	A	B	C	D	H (min)
3 mtr	6 mtr	10mtr	12 mtr	Carcase	kgs	mm	mm	mm	mm	mm
286-500-1	286-500-2	286-500-3	286-500-4	286-500-5	500	136	126.5	25.5	36	266
286-501-1	286-501-2	286-501-3	286-501-4	286-501-5	1,000	156	143	28	40	324
286-502-1	286-502-2	286-502-3	286-502-4	286-502-5	1,500	182	148	38	52	392
286-503-1	286-503-2	286-503-3	286-503-4	286-503-5	2,000	198	152	38	52	407
286-504-1	286-504-2	286-504-3	286-504-4	286-504-5	3,000	214	156	42	60	465
286-505-1	286-505-2	286-505-3	286-505-4	286-505-5	5,000	266	181	50	68	636
286-506-1	286-506-2	286-506-3	286-506-4	286-506-5	10,000	365	181	57	85	798
286-507-1	286-507-2	286-507-3	286-507-4	286-507-5	20,000	630	192	84	106	890
286-508-1	286-508-2	286-508-3	286-508-4	286-508-5	30,000	670	330	84	106	1000

Technical Data

Capacity	Effort req'd to lift max load	Load Chain Dia	Falls of Load Chain	Weight (3 mtr HOL)	Extra Weight per mtr
kgs	N	mm		kgs	kgs
500	210	6 x 18	1	7	0.77
1,000	260	6 x 18	1	10.5	0.77
1,500	265	7.1 x 21	1	17	1.07
2,000	272	8 x 24	1	18	1.36
3,000	280	7.1 x 21	2	21	2.14
5,000	358	10 x 30	2	42	4.3
10,000	370	10 x 30	4	72.6	8.6
20,000	370 x 2	10 x 30	8	162	17.2
30,000	370 x 2	10 x 30	12	228	25.8
