GT Cobra Grade 80 Swivel Hoist Ring

GT Cobra SKU: 286-603-1

1 3

GT Cobra Grade 80 Swivel Hoist Ring Alloy steel. Red painted finish. Minimum breaking load is 4 times the W.L.L. Marked with CE, W.L.L, material grade,... Read More

€45,17

RRP TODAY'S PRICE €45,17

In stock (2)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

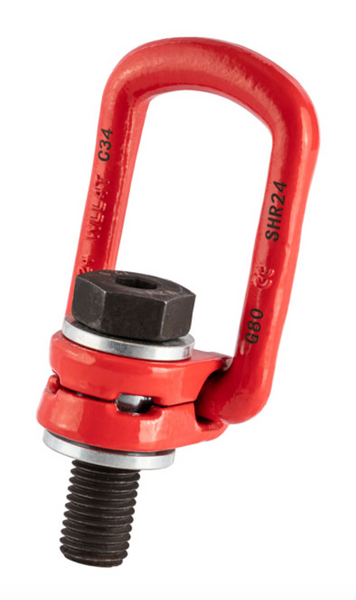

GT Cobra Grade 80 Swivel Hoist Ring

Alloy steel.
Red painted finish.
Minimum breaking load is 4 times the W.L.L.
Marked with CE, W.L.L, material grade, manufacturers ID and size.
Not suitable for rotation under load.
Certification - Declaration of Conformity

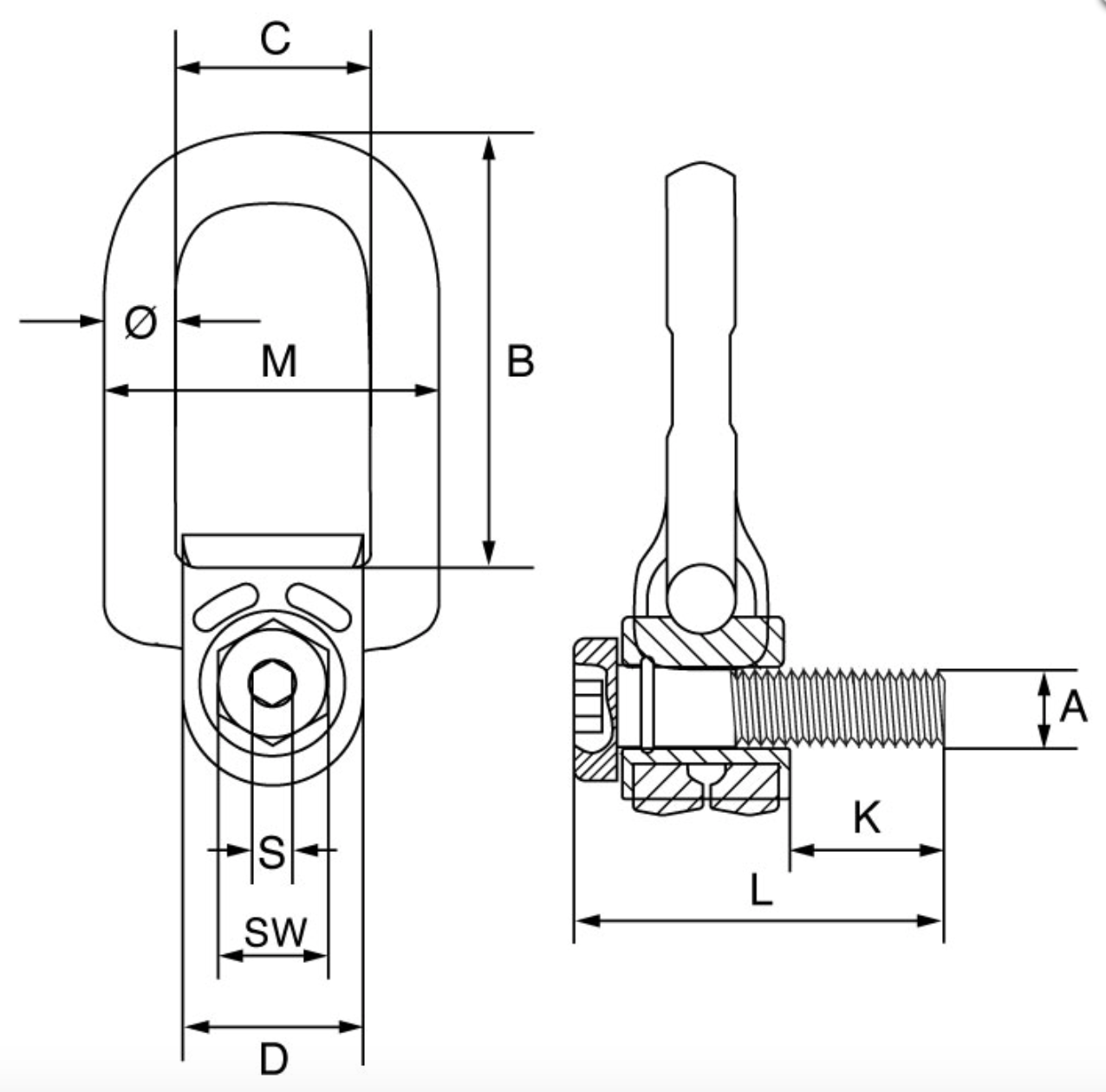

Specification

SKU	W.L.L.	A	B	C	D	K	L	M	S	SW	Ø	Torque	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Nm	kgs
286-603-1	0.3	8	52.5	35	30	11	46	55	6	13	14	10-15	0.36
286-603-2	0.63	10	52.5	35	30	16	52	55	6	17	14	10-15	0.38
286-603-3	1	12	54	40	36	18	62	68	8	19	18	10-15	0.71
286-603-4	1.2	14	54	40	36	21	66	68	8	22	18	20-30	0.72
286-603-5	1.5	16	54	40	36	24	70	68	8	24	18	20-30	0.74
286-603-6	2.5	20	80	54	50	30	88	83	12	30	16	50-70	1.19
286-603-7	4	24	94	54	50	36	100	83	14	36	18	130-160	1.38
286-603-8	4	27	106	73	68	38	120	120	17	41	27	180-220	4.18
286-603-9	5	30	106	73	68	48	132	120	17	41	27	200-250	4.4
286-603-10	8	36	140.5	94	86	62	163	156	22	55	31	280-400	7.6
286-603-11	15	42	155	104	95	74	194	176	24	65	40	500-600	12.4
286-603-12	20	48	155	104	95	74	194	176	27	75	40	500-650	20
