GT Blue Pin Grade 6 Bow Shackles with Screw Collar Pin

GT Blue Pin SKU: 269-100-1

1 2

GT Blue Pin Grade 6 Bow Shackles with Screw Collar Pin Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish. Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271. Temperature range 0ºC up to +200ºC. Minimum breaking load is 6 times the W.L.L. Mar Read More

€1,30

RRP TODAY'S PRICE €1,30

In stock (69)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

GT Blue Pin Grade 6 Bow Shackles with Screw Collar Pin

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
Temperature range 0ºC up to +200ºC.
Minimum breaking load is 6 times the W.L.L.
Marked with CE, W.L.L, manufacturers ID, size and traceability code.
Certification - Declaration of Conformity

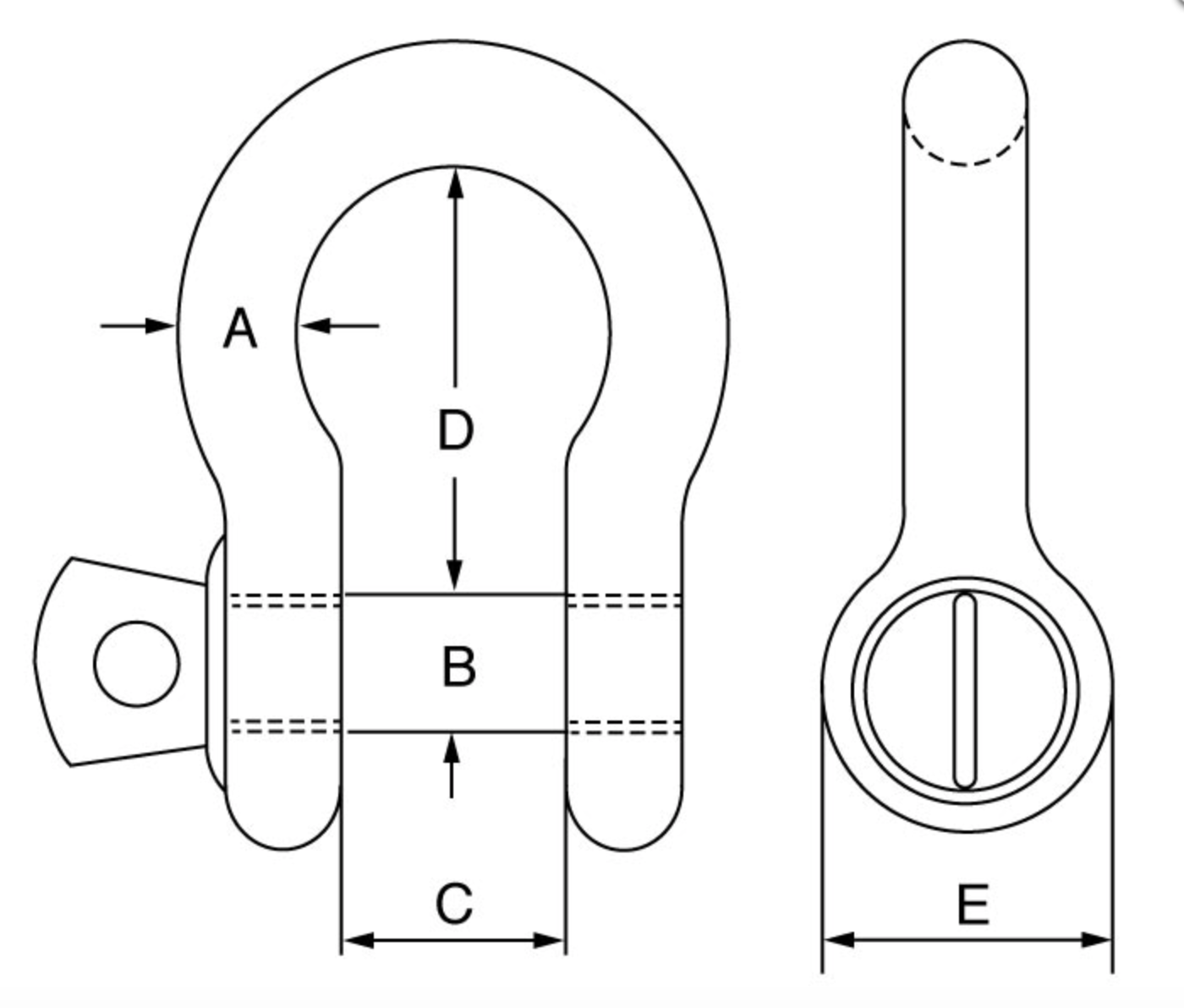

Specification

SKU	W.L.L.	A	B	C	D	E	Weight
	t	mm	mm	mm	mm	mm	kgs
269-100-1	0.33	5	6	9.5	22	16	0.02
269-100-2	0.5	6.4	8	12	28.6	20	0.06
269-100-3	0.75	8	10	13	31	21	0.11
269-100-4	1	9.5	11	17	36.5	26	0.15
269-100-5	1.5	11	12	18	42.5	29	0.21
269-100-6	2	12.7	16	20.6	47.3	32	0.37
269-100-7	3.25	16	19.8	27	60.5	43	0.65
269-100-8	4.75	19	22	32	71.5	51	1.04
269-100-9	6.5	21.7	27	36.6	84	58	1.56
269-100-10	8.5	25.4	30	43	96	68	2.32
269-100-11	9.5	28.5	33	46	108	75	3.28
269-100-12	12	31.5	36	51.6	119	83	4.51
269-100-13	13.5	34.9	39	57	133.5	92	5.93
269-100-14	17	38	42	60	147	99	7.89
269-100-15	25	44	52	73	178	126	13.4
269-100-16	35	50	56	82	197	138	18.85
269-100-17	55	63.5	68	105	267.5	180	37.86
