Green Pin Swivel Eye/Eye

Green Pin SKU: 286-815-1

1 2

Green Pin Swivel Eye/Eye

Green Pin Swivel Eye/Eye High tensile steel, quenched and tempered. Hot dipped galvanised finish. Conforms to US Fed. Spec. RR-C-271 type VII class 2. Minimum breaking load is 5 times the W.L.L. Marked with... Read More

Green Pin SKU: 286-815-1

€4,96

RRP TODAY'S PRICE €4,96

In stock

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Green Pin Swivel Eye/Eye

High tensile steel, quenched and tempered.
Hot dipped galvanised finish.
Conforms to US Fed. Spec. RR-C-271 type VII class 2.
Minimum breaking load is 5 times the W.L.L.
Marked with CE, W.L.L, manufacturers ID, size and traceability code.

Certification available

Spec

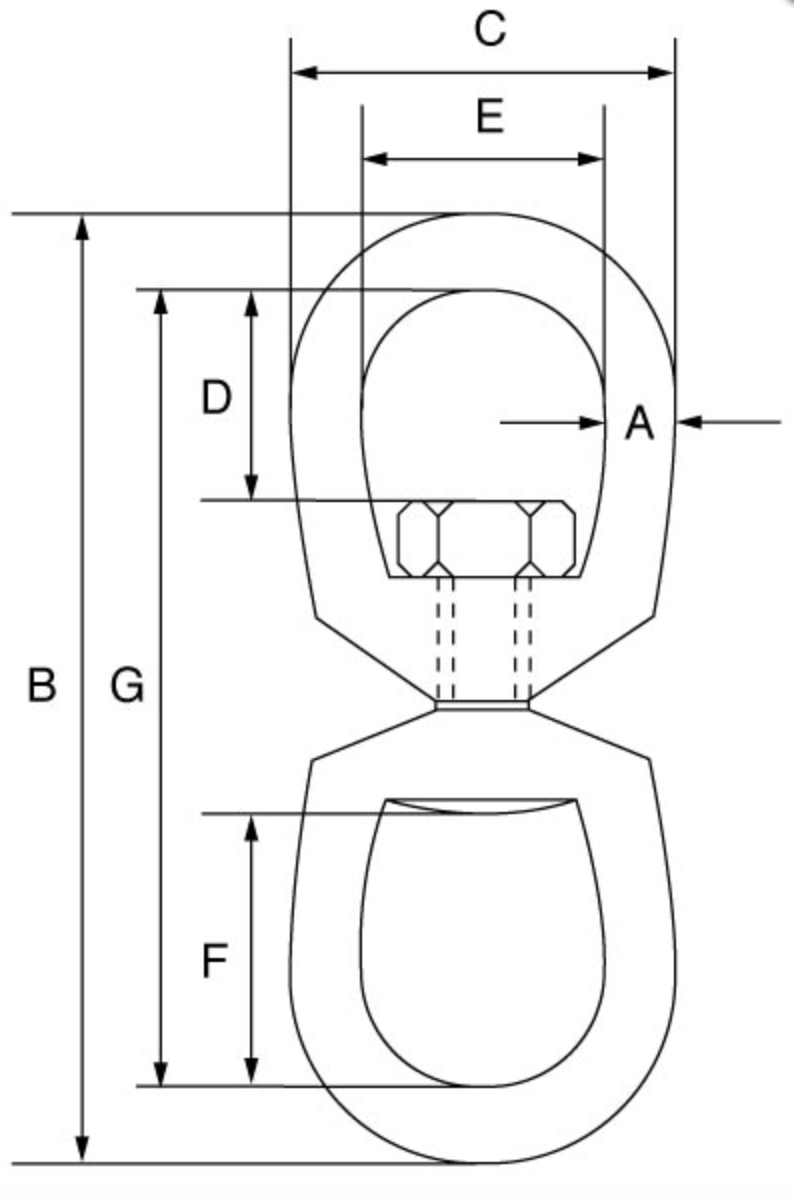

SKU	W.L.L.	A	B	C	D	E	F	G	Weight
	t	mm	mm	mm	mm	mm	mm	mm	kgs
286-815-1	0.39	6	87	32	18	19	27	75	0.1
286-815-2	0.57	8	106	41	21	25	32	90	0.18
286-815-3	1.02	10	129	51	24	32	38	109	0.32
286-815-4	1.6	13	164	64	33	38	51	138	0.6
286-815-5	2.4	16	199	76	40	44	60	167	1.13
286-815-6	3.3	19	221	89	44	51	67	183	1.82
286-815-7	4.5	22	257	102	52	57	78	213	2.83
286-815-8	5.7	25	295	114	59	64	89	245	4.06
286-815-9	8.2	32	337	143	68	80	94	273	7.43
286-815-10	20.5	38	501	178	102	102	150	425	20.8
