Green Pin Grade 6 Square Sunken Hole Dee Shackle

Green Pin SKU: 269-32-1

1 2

Green Pin Grade 6 Square Sunken Hole Dee Shackle

Green Pin Grade 6 Square Sunken Hole Dee Shackle Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to BS EN 13889, ASME... Read More

Green Pin SKU: 269-32-1

€21,83

RRP TODAY'S PRICE €21,83

In stock (3)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

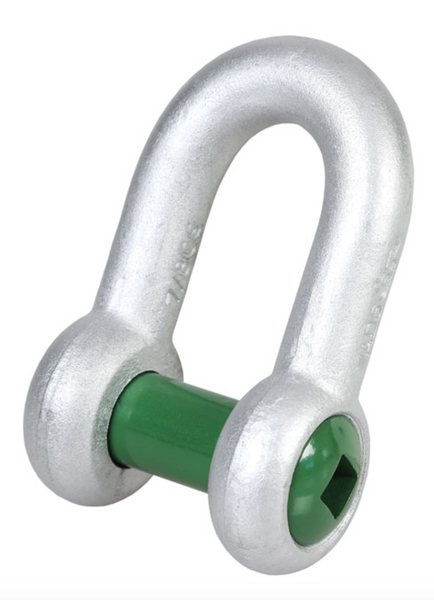

Green Pin Grade 6 Square Sunken Hole Dee Shackle

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
Minimum breaking load is 6 times the W.L.L.
Temperature range -20ºC up to +200ºC.
Key for unscrewing pin supplied separately (E-4170).
Supplied with an EC Declaration of Conformity
G-4159

Spec

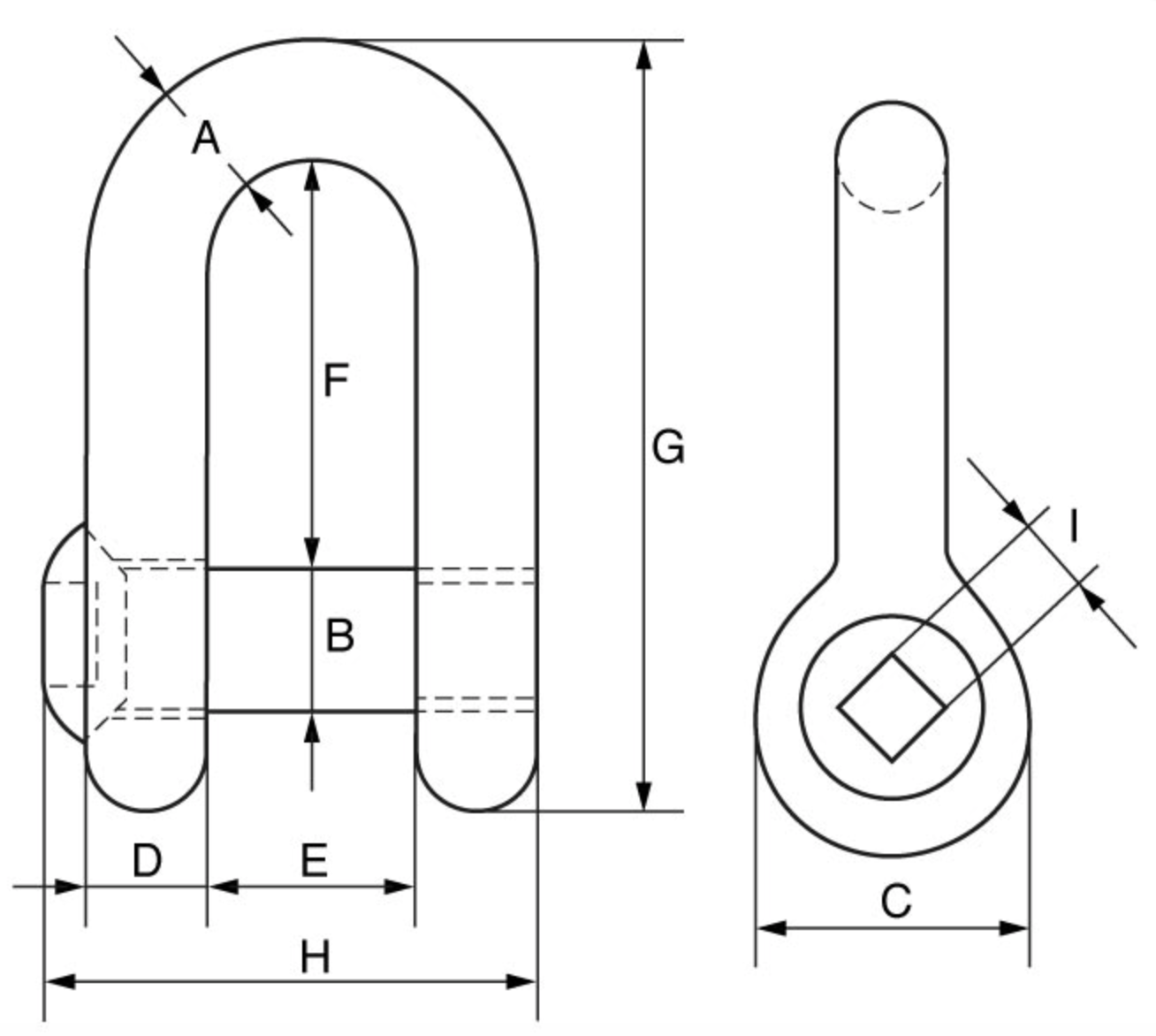

SKU	W.L.L	A	B	C	D	E	F	G	H	I	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-32-1	2	13.5	16	34	13	22	43	81	51	11	0.34
269-32-2	3.25	16	19	40	16	27	51	97	63	11	0.6
269-32-3	4.75	19	22	46	19	31	59	112	74	11	0.98
269-32-4	6.5	22	25	52	22	36	73	134	85	13	1.26
269-32-5	8.5	25	28	59	25	43	85	154	99	13	2.14
269-32-6	9.5	28	32	66	28	47	90	167	110	17	3.05
269-32-7	12	32	35	72	32	51	94	180	122	17	3.56
269-32-X	13.5	35	38	80	35	57	115	209	135	17	5.17
269-32-8	17	38	42	88	38	60	127	230	145	17	6.84
