Green Pin Polar Grade 8 Bow Shackle with Safety Nut and Bolt Pin

Green Pin SKU: 269-23-1

1 2

Green Pin Polar Grade 8 Bow Shackle with Safety Nut and Bolt Pin Grade 8 alloy steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to BS EN 13889 (from 0.5t to 25t), ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271 Type IVA. Minimum breaking load is 7 tim Read More

€27,83

RRP TODAY'S PRICE €27,83

In stock (5)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

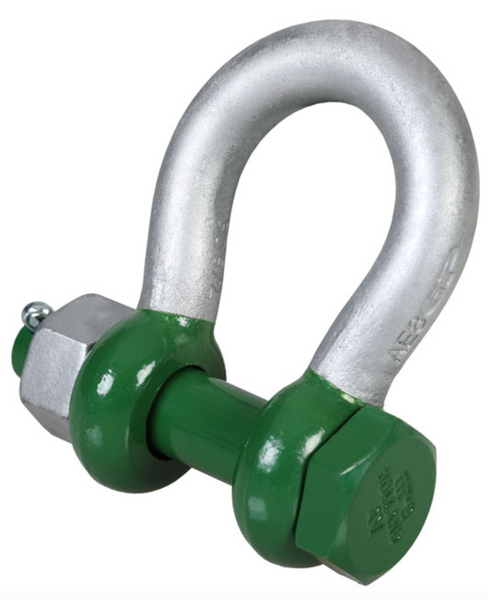

Green Pin Polar Grade 8 Bow Shackle with Safety Nut and Bolt Pin

Grade 8 alloy steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889 (from 0.5t to 25t), ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271 Type IVA.
Minimum breaking load is 7 times the W.L.L.
Temperature range -60ºC up to +200ºC.
Full CAD support available upon request.
Certification available 2.1 3.1 DoC DNV GL 2.7-1 DNV GL 0378
G-5163

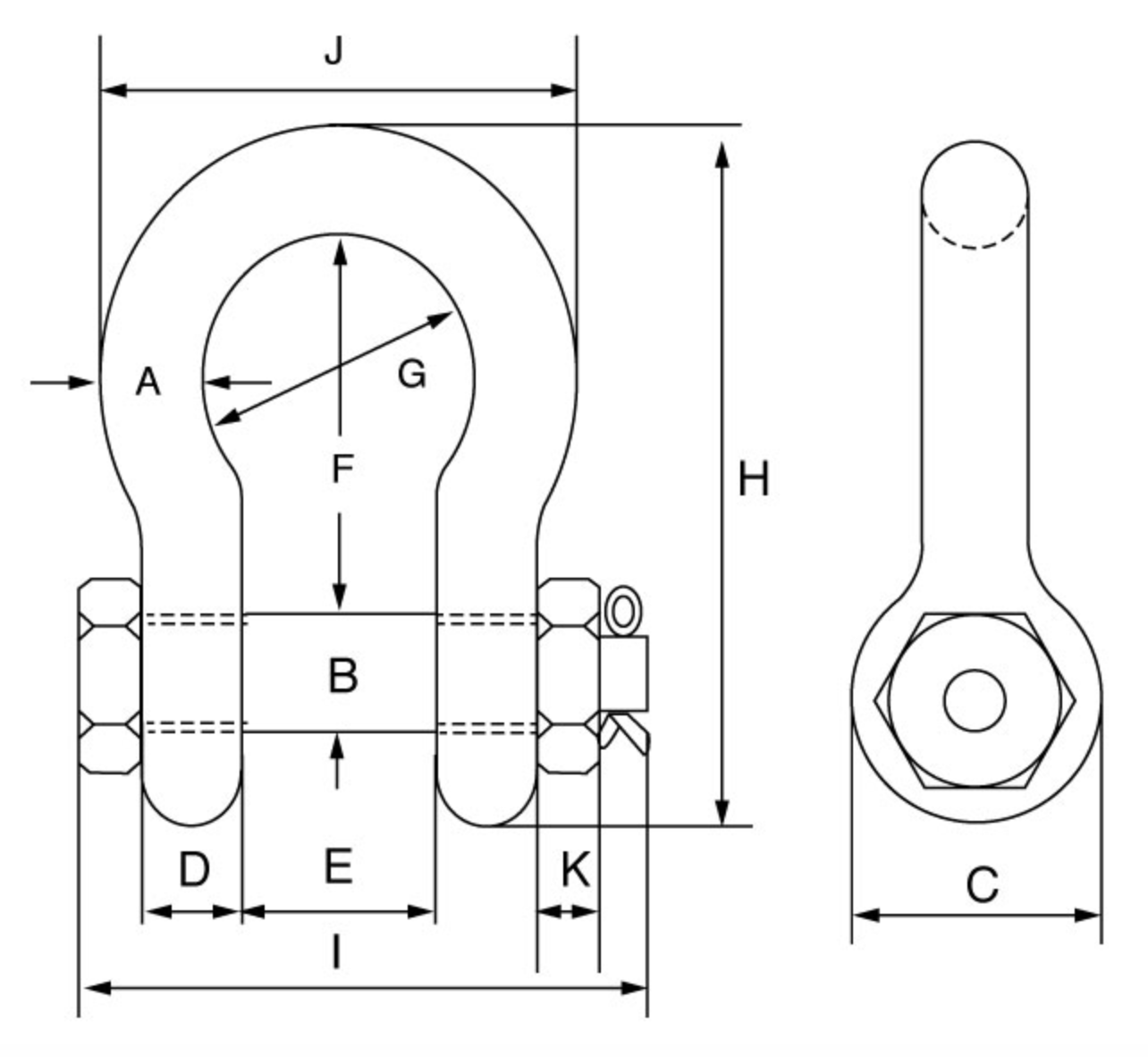

Specification

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	J	K	Weight	Technical
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs	Specification
269-23-1	2	13.5	16	34	13	22	51	32	89	82	58	13	0.42	GPPOL2.pdf
269-23-2	3.25	16	19	40	16	27	64	43	110	98	75	17	0.74	GPPOL3.25.pdf
269-23-3	4.75	19	22	46	19	31	76	51	129	114	89	19	1.18	GPPOL4.75.pdf
269-23-4	6.5	22	25	52	22	36	83	58	144	130	102	22	1.77	GPPOL6.5.pdf
269-23-5	8.5	25	28	59	25	43	95	68	164	150	118	25	2.58	GPPOL8.5.pdf
269-23-6	9.5	28	32	66	28	47	108	75	185	166	131	27	3.66	GPPOL9.5.pdf
269-23-7	12	32	35	72	32	51	115	83	201	178	147	30	4.91	GPPOL12.pdf
269-23-8	13.5	35	38	80	35	57	133	92	227	197	162	33	6.54	GPPOL13.5.pdf
269-23-9	17	38	42	88	38	60	146	99	249	202	175	19	8.19	GPPOL17.pdf
269-23-10	25	45	50	103	45	74	178	126	300	249	216	23	14.22	GPPOL25.pdf
269-23-11	35	50	57	116	50	83	197	138	334	269	238	26	19.85	GPPOL35.pdf
269-23-12	42.5	57	65	130	57	95	222	160	377	301	274	29	28.33	GPPOL42.5.pdf
269-23-13	55	65	70	145	65	105	260	180	433	330	310	32	39.59	GPPOL55.pdf
269-23-14	85	75	83	162	73	127	329	190	527	380	340	40	62	GPPOL85.pdf
