Green Pin Grade 6 Theatre Bow Shackle with Screw Collar Pin

Green Pin SKU: 269-44-1

1 2

Green Pin Grade 6 Theatre Bow Shackle with Screw Collar Pin

Green Pin Grade 6 Theatre Bow Shackle with Screw Collar Pin Grade 6 high tensile steel, quenched and tempered. Matt black finish. Conforms to BS EN 13889 (from 0.5t) and... Read More

Green Pin SKU: 269-44-1

€7,07

RRP TODAY'S PRICE €7,07

In stock (20)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

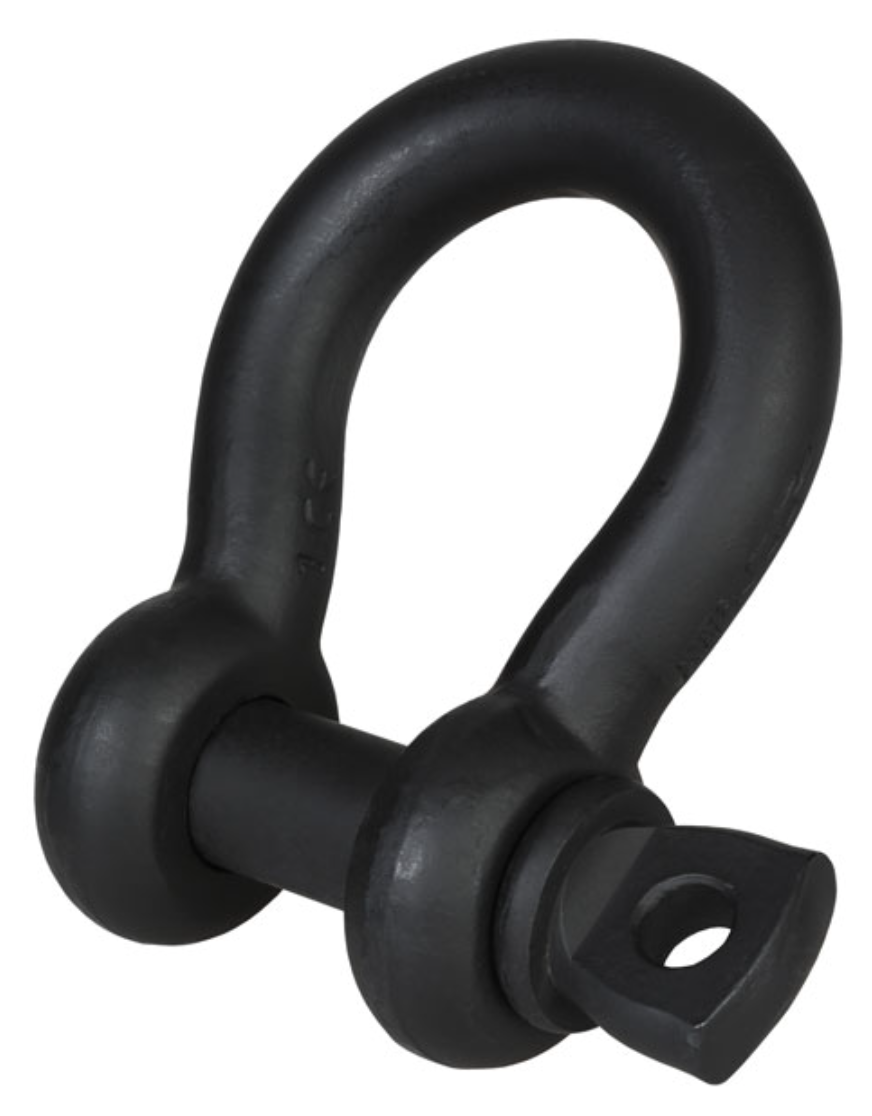

Green Pin Grade 6 Theatre Bow Shackle with Screw Collar Pin

Grade 6 high tensile steel, quenched and tempered.
Matt black finish.
Conforms to BS EN 13889 (from 0.5t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.
Certification - Declaration of Conformity

All of the performance, none of the reflections. The Green Pin Standard Bow Shackle with Screw Collar has been specially developed for use in theatres and other entertainment venues. Due to its black matt finish, the Theatre Shackle shows no sheen or light reflections and therefore does not distract from the performance on stage. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

Spec

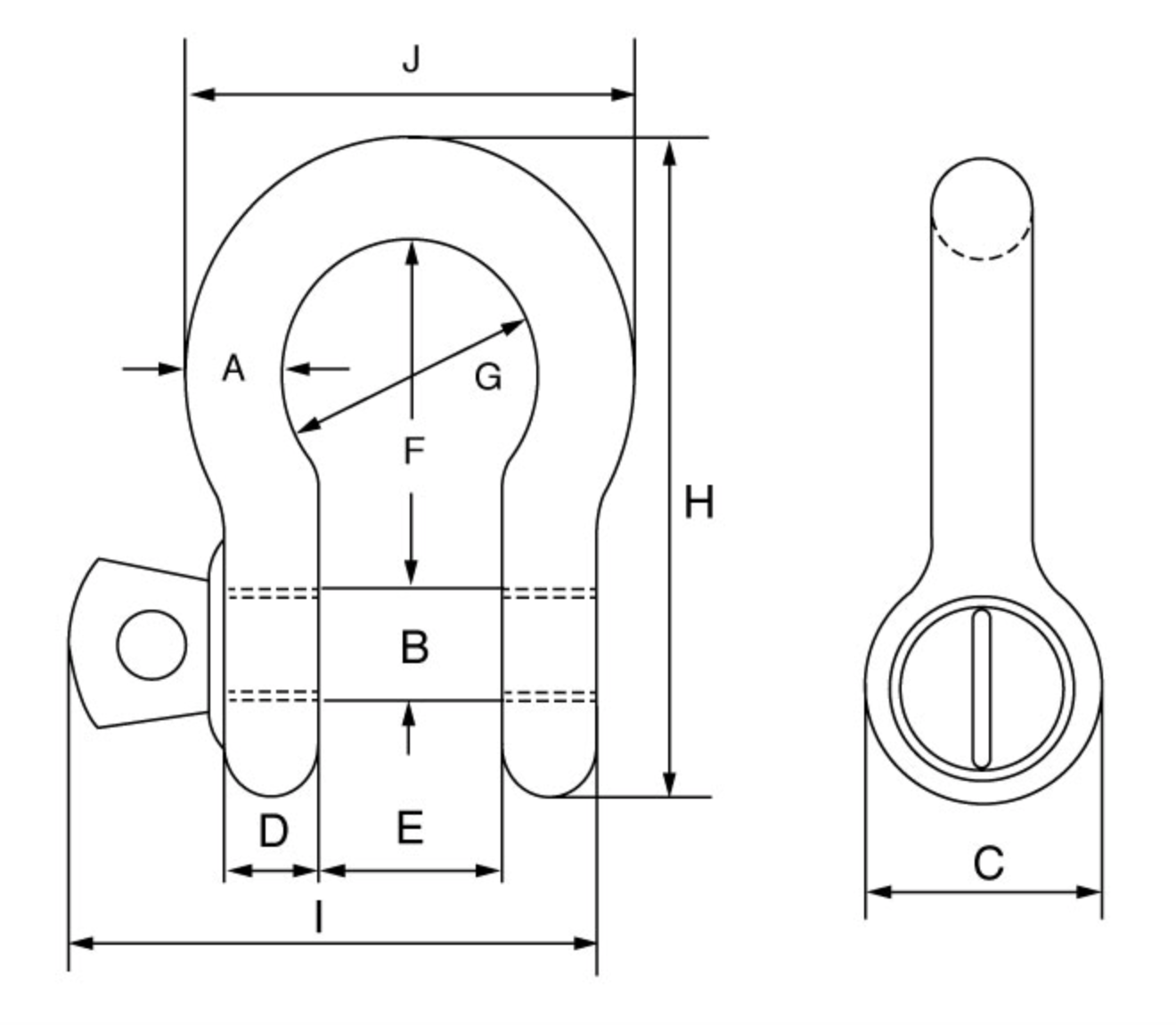

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	J	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-44-1	0.33	5	6	12	5	9.5	22	16	36	29.5	26	0.02
269-44-2	0.5	7	8	16.5	7	12	29	20	48.5	38	34	0.05
269-44-3	0.75	9	10	20	9	13.5	32	22	56	46.5	40	0.1
269-44-4	1	10	11	22.5	10	17	36.5	26	63.5	54	46	0.14
269-44-5	1.5	11	13	26.5	11	19	43	29	74	59.5	51	0.19
269-44-6	2	13.5	16	34	13	22	51	32	89	73	58	0.36
269-44-7	3.25	16	19	40	16	27	64	43	110	89	75	0.63
269-44-8	4.75	19	22	46	19	31	76	51	129	103	89	1.01
269-44-9	6.5	22	25	52	22	36	83	58	144	119	102	1.5
269-44-10	8.5	25	28	59	25	43	95	68	164	137	118	2.21
