Green Pin Grade 6 Bow Shackles with Screw Collar Pin

Green Pin SKU: 269-2-1

1 2

Green Pin Standard Bow Shackles with Screw Collar Pin Green Pin Model G-4161 Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised. Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A. From 2t and upward th Read More

€6,17

RRP TODAY'S PRICE €6,17

In stock (41)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

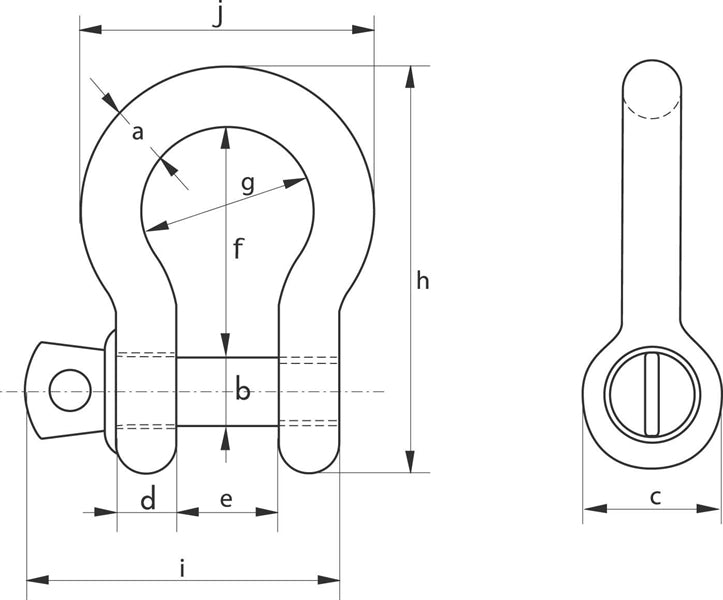

Green Pin Standard Bow Shackles with Screw Collar Pin

Green Pin Model G-4161
Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised.
Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
From 2t and upward these shackles comply with ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.

Shackles are used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles are used mainly for non-permanent applications. Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain or dee shackles are mainly used on one-leg systems whereas anchor or bow shackles are mainly used on multi-leg systems.
