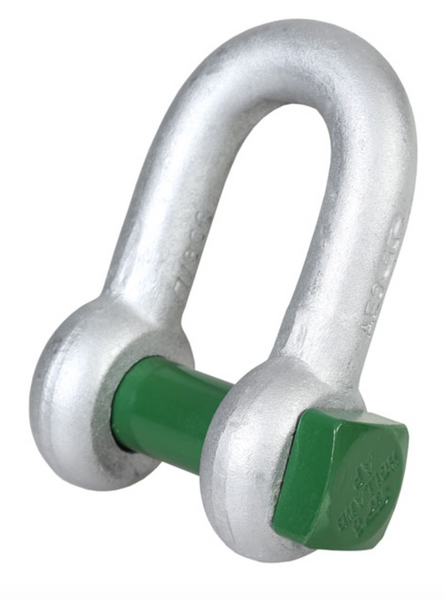

Green Pin Grade 6 Square Head Dee Shackle

Green Pin SKU: 269-33-1

1 2

Green Pin Grade 6 Square Head Dee Shackle

Green Pin Grade 6 Square Head Dee Shackle Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to BS EN 13889, ASME B30.26... Read More

Green Pin SKU: 269-33-1

€13,92

RRP TODAY'S PRICE €13,92

In stock

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Green Pin Grade 6 Square Head Dee Shackle

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
Minimum breaking load is 6 times the W.L.L.
Temperature range -20ºC up to +200ºC.
Certification - Declaration of Conformity
G-4154

Spec

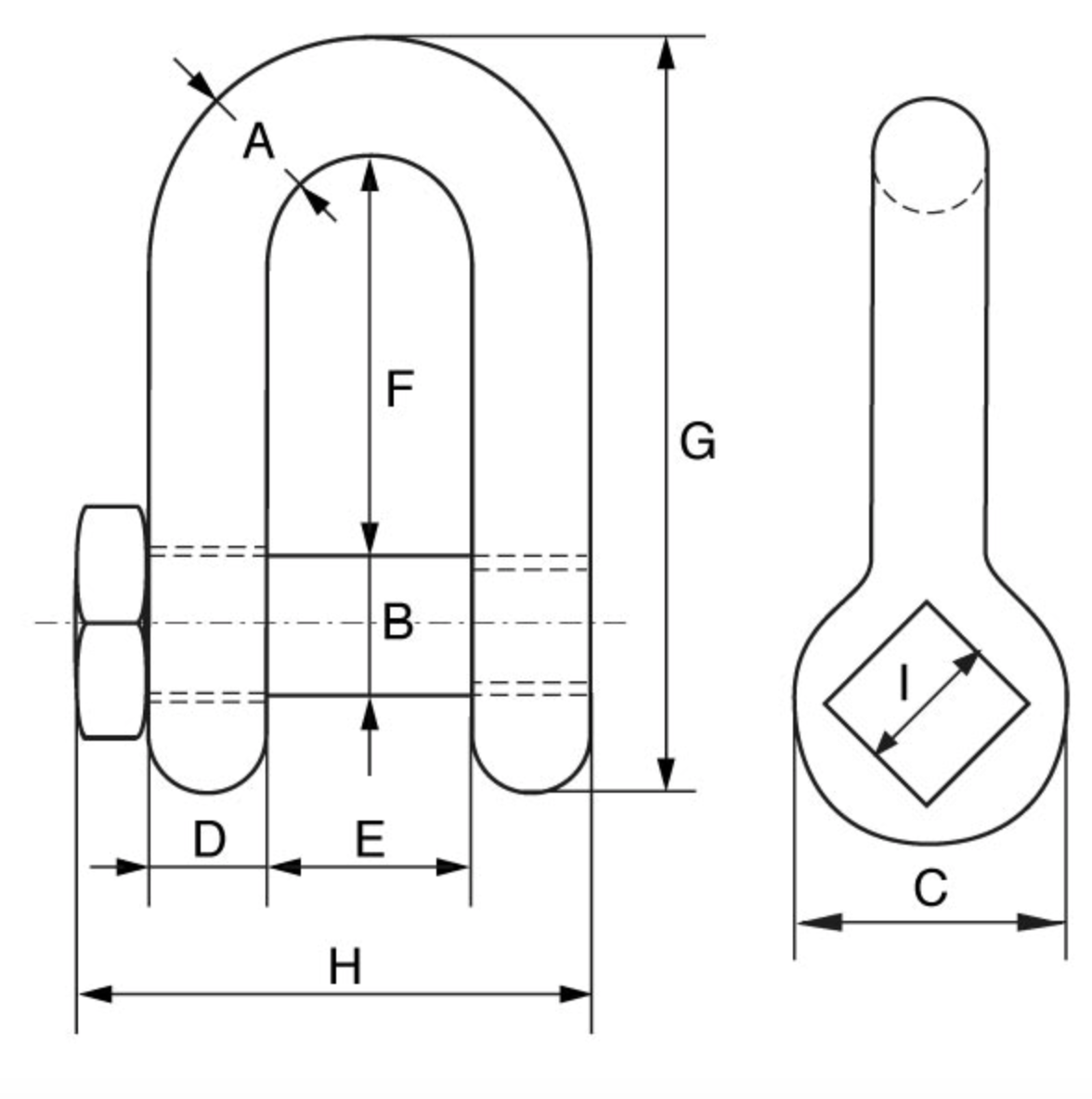

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-33-1	2	13.5	16	34	13	22	43	81	57.5	22	0.32
269-33-2	3.25	16	19	40	16	27	51	97	71	27	0.58
269-33-3	4.75	19	22	46	19	31	59	112	82	32	0.92
269-33-4	6.5	22	25	52	22	36	73	134	93	32	1.33
269-33-5	8.5	25	28	59	25	43	85	154	108	36	2.03
269-33-6	9.5	28	32	66	28	47	90	167	120	41	2.88
269-33-7	12	32	35	72	32	51	94	180	137	50	3.96
269-33-8	13.5	35	38	80	35	57	115	209	149	50	5.24
269-33-9	17	38	42	88	38	60	127	230	164	60	6.8
269-33-10	25	45	50	103	45	74	149	271	192	60	11.22
