Description

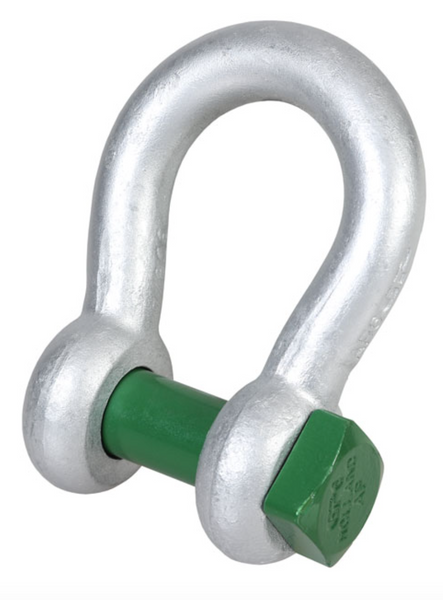

Green Pin Grade 6 Square Head Bow Shackle

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
Minimum breaking load is 6 times the W.L.L.
Temperature range -20ºC up to +200ºC.
Certification available
G-4164

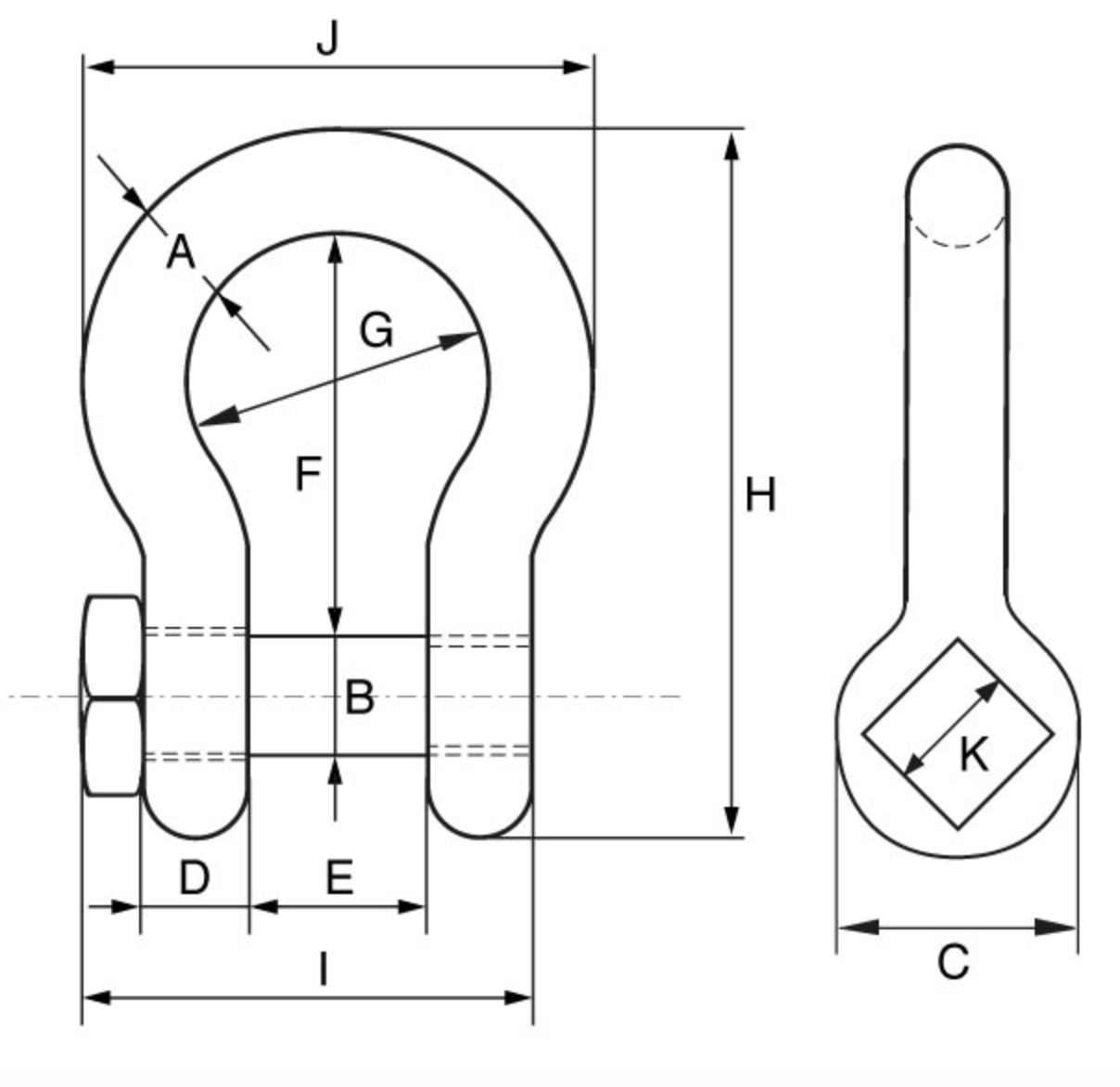

Specification

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	J	K	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-30-1	2	13.5	16	34	13	22	51	32	89	57.5	58	22	0.34
269-30-2	3.25	16	19	40	16	27	64	43	110	71	75	27	0.63
269-30-3	4.75	19	22	46	19	41	76	51	129	82	89	32	1
269-30-4	6.5	22	25	52	22	36	83	58	144	93	102	32	1.44
269-30-5	8.5	25	28	59	25	43	95	68	164	108	118	36	2.21
269-30-6	9.5	28	32	66	28	47	108	75	185	120	131	41	3.18
269-30-7	12	32	35	72	32	51	115	83	201	137	147	50	4.32
269-30-8	13.5	35	38	80	35	57	133	92	227	149	162	50	5.67
269-30-9	17	38	42	88	38	60	146	99	249	164	175	60	7.36
269-30-10	25	45	50	103	45	74	178	126	300	192	216	60	12.38
