Green Pin Grade 10 Needle Bearing Swivel Eye/Eye
Green Pin SKU: 286-819-1
Green Pin Grade 10 Needle Bearing Swivel Eye/Eye
Green Pin Grade 10 Needle Bearing Swivel Eye/Eye Alloy steel, quenched and tempered. Blue painted finish. Minimum breaking load is 4 times the W.L.L. Temperature range -40ºC to +200ºC. 2 needle roller... Read More
Green Pin SKU: 286-819-1
Regular price
€135,74
Regular price
RRP
Sale price
TODAY'S PRICE
€135,74
Unit price
per
In stock
Tax included.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk
Description
Description
Green Pin Grade 10 Needle Bearing Swivel Eye/Eye
- Alloy steel, quenched and tempered.
- Blue painted finish.
- Minimum breaking load is 4 times the W.L.L.
- Temperature range -40ºC to +200ºC.
- 2 needle roller thrust bearings for rotation under load.
- Marked with CE, W.L.L, material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification available
Spec

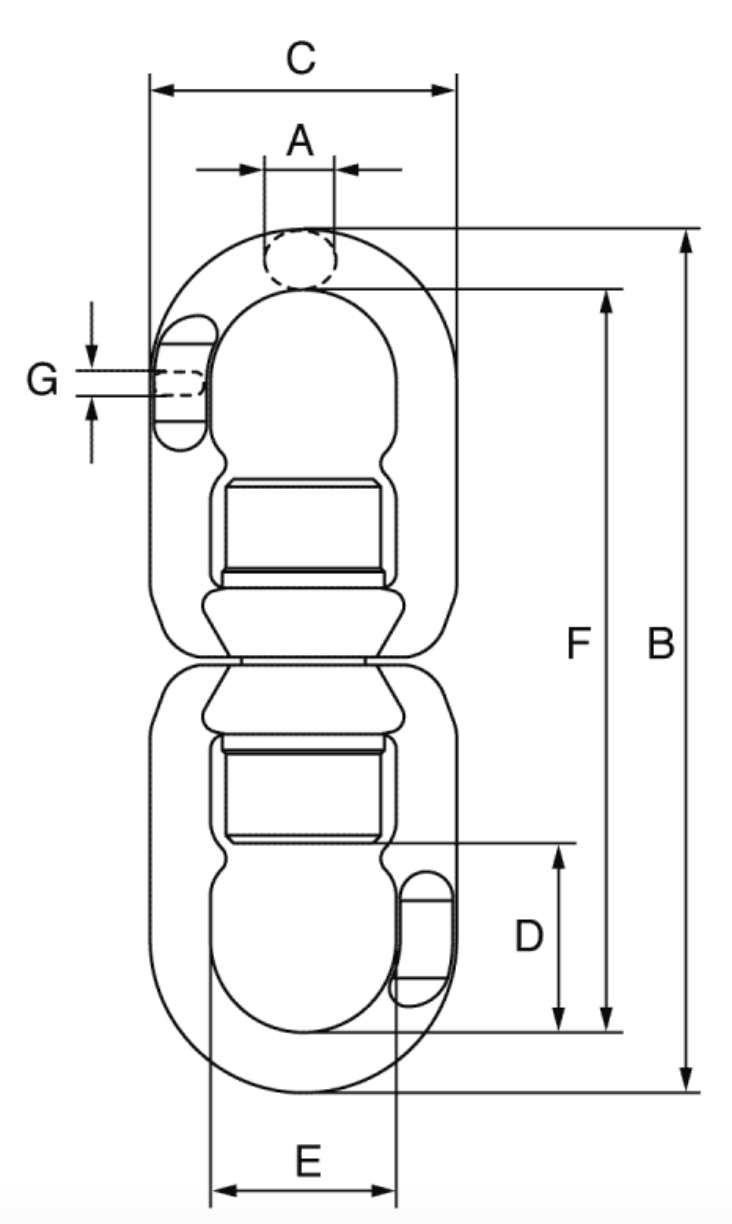

| SKU |
Chain Dia | W.L.L. | A | B | C | D | E | F | G | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | t | mm | mm | mm | mm | mm | mm | mm | kgs | |
| 286-819-1 |
6 | 1.4 | 11 | 150 | 56 | 33 | 32 | 126 | 6 | 0.61 |
| 286-819-2 |
8 | 2.6 | 14 | 181 | 65 | 40 | 37 | 153 | 8 | 1.07 |
| 286-819-3 |
10 | 4 | 18 | 226 | 79 | 47 | 48 | 195 | 11 | 1.9 |
| 286-819-4 |
13 | 6.8 | 20 | 268 | 96 | 59 | 58 | 227 | 14 | 3.17 |
| 286-819-5 |
16 | 10.3 | 23 | 331 | 121 | 67 | 73 | 281 | 17 | 6.44 |
| 286-819-6 |
20 | 16 | 28 | 378 | 132 | 88 | 82 | 328 | 22 | 7.75 |
