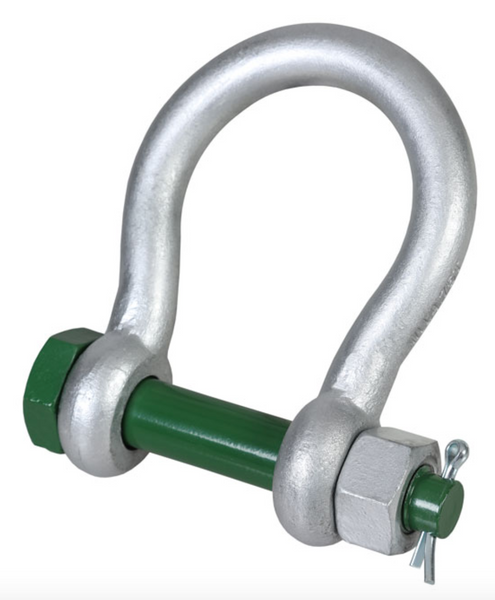

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin

Green Pin SKU: 269-24-1

1 2

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin Grade 8 alloy steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to ASME... Read More

€81,30

RRP TODAY'S PRICE €81,30

In stock (2)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin

Grade 8 alloy steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -20ºC up to +200ºC.
Certification available

Specification

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	J	K	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-24-1	4.75	22	25	52	22	63	112	88	173	157	132	22	2.08
269-24-2	6.5	25	28	59	25	75	135	105	204	183	155	25	3.14
269-24-3	8.5	28	32	66	28	82	148	115	225	205	171	27	4.36
269-24-4	9.5	32	35	72	32	90	162	126	248	224	190	30	5.95
269-24-5	12	35	38	79	35	100	180	140	274	245	210	33	7.87
269-24-6	16	38	42	89	38	106	216	159	319	248	235	19	12.5
269-24-7	25	45	50	104	45	127	248	175	370	296	265	23	18
269-24-8	30	50	57	11	50	146	273	207	411	332	307	26	25
269-24-9	55	65	70	145	65	165	314	213	487	389	343	32	48
269-24-10	75	75	83	163	75	184	330	254	537	455	420	39	70
