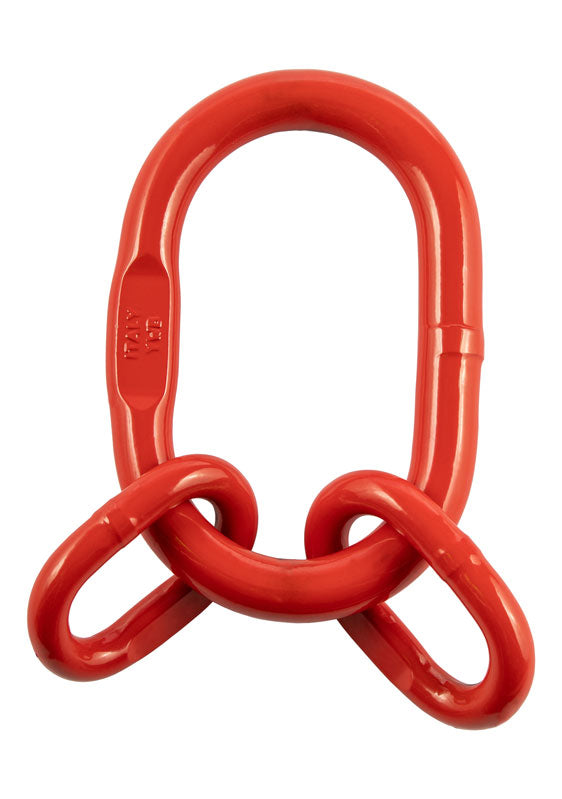

KITO - Grade 8 Quad Master Link Assembly to BS-EN 1677-4

KITO Weissenfels SKU: 286-12-1

1 2

Grade 8 Quad Master Link Assembly Alloy steel, quenched and tempered. Red painted finish. Conforms to BS EN 1677-4. Temperature range: -40 °C to +400 °C (Reductions in... Read More

€30,11

RRP TODAY'S PRICE €30,11

In stock (2)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Grade 8 Quad Master Link Assembly

Alloy steel, quenched and tempered.
Red painted finish.
Conforms to BS EN 1677-4.
Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
Suitable for use with Grade 8 Chains and wire/fibre rope slings.
Designed for use with 3 or 4 leg slings.
T ranges have large inside widths & lengths to allow for sling hardware and crane hooks.
Certification - Declaration of Conformity

Specification

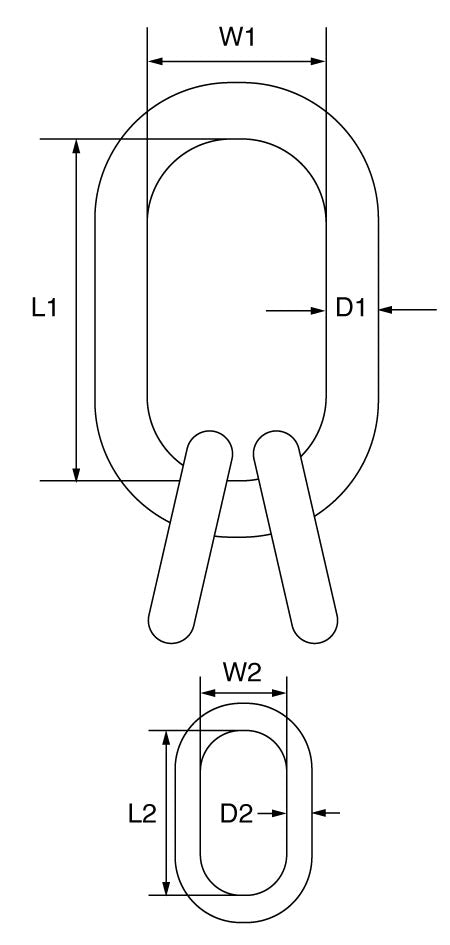

SKU	Part No.	D1	L1	W1	D2	L2	W2	W.L.L.	M.P.F.	M.B.F.	Weight
		mm	mm	mm	mm	mm	mm	t	kN	kN	kgs
286-12-1	W7-8	19	135	75	13	60	38	3.15	77.2	124	1.35
286-12-2	T7-8	20	160	95	15	120	70	4.15	102	163	2.21
286-12-3	W8-8	23	160	90	17	70	34	4.25	104	167	2.32
286-12-4	T8-8	23	160	110	16	140	80	5.35	132	210	3.03
286-12-5	W10-8	27	180	100	18	85	40	6.7	164.3	262.8	3.58
286-12-6	T10-8	27	190	110	20	160	95	9.4	231	369	5.07
286-12-7	W13-8	33	200	110	23	115	50	11.2	275	439	6.57
286-12-8	T13-8	33	230	130	27	190	110	14.2	348	557	10.08
286-12-9	W16-8	36	260	140	27	140	65	17	417	667	10.3
286-12-10	T16-8	38	275	150	33	230	130	22.3	547	875	17.06
286-12-11	W20-8	45	340	180	33	150	70	26.5	650	1040	19.3
286-12-12	T20-8	45	340	180	38	275	150	33.4	819	1,310	27.8
