FRAM - Grade 8 Quad Master Link Assembly to BS-EN 1677-4
Fram SKU: 286-32-1
Grade 8 Fram Quad Master Link Assembly Alloy steel, quenched and tempered.... Read More
Regular price
€97,03
Regular price
RRP
Sale price
TODAY'S PRICE
€97,03
Unit price
per
In stock
StockTax included.
This product is NOT available Online.
Please contact us via email for availability and delivery to Europe sales@rigging-eu.com
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk
Description
Description

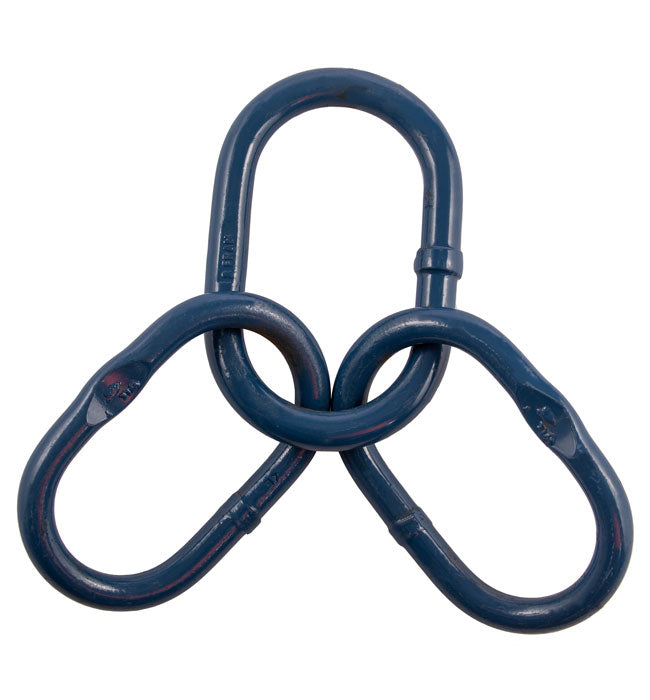

Grade 8 Fram Quad Master Link Assembly
- Alloy steel, quenched and tempered.
- Blue painted finish.
- Type approved according to DNV GL.
- Conforms to BS EN 1677-4.
- Minimum breaking load is 5 times the W.L.L.
- Certification - Declaration of Conformity
Spec
| SKU |

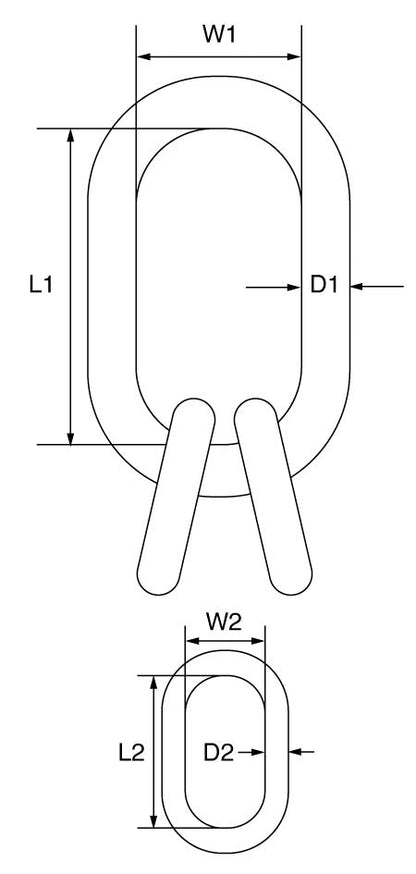

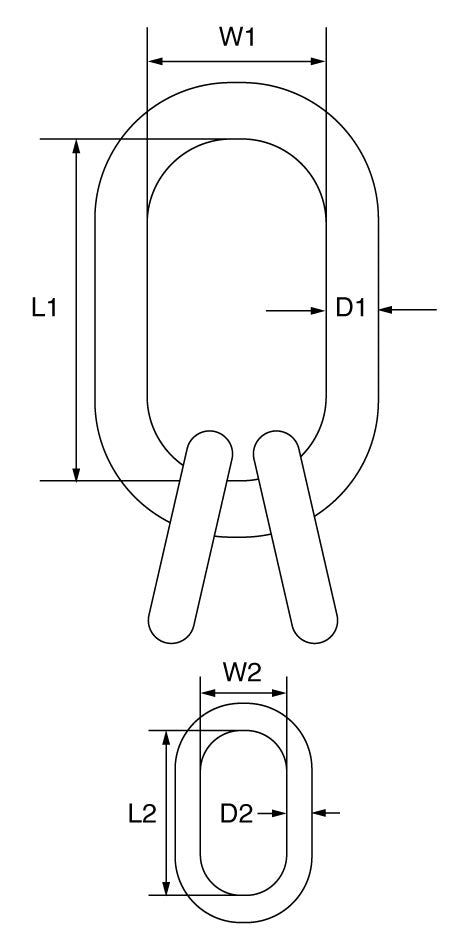

Part No | D1 | L1 | W1 | D2 | L2 | W2 | W.L.L. | Weight |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | t | kgs | ||
| 286-32-1 |
Q16B | 16 | 120 | 70 | 13 | 95 | 51 | 4.1 | 1.2 |
| 286-32-2 |
Q20B | 20 | 170 | 90 | 16 | 120 | 70 | 6.5 | 2.5 |
| 286-32-3 |
Q22B | 22 | 170 | 90 | 20 | 150 | 80 | 8.2 | 2.8 |
| 286-32-4 |
Q22B8 | 22 | 270 | 140 | 16 | 120 | 70 | 5.8 | 3.5 |
| 286-32-5 |
Q25B | 25 | 190 | 100 | 20 | 150 | 80 | 10.7 | 4.9 |
| 286-32-6 |
Q28B | 28 | 210 | 110 | 22 | 170 | 90 | 12.9 | 6.4 |
| 286-32-7 |
Q32B | 32 | 270 | 140 | 25 | 190 | 100 | 17.1 | 10 |
| 286-32-8 |
Q38B | 39 | 270 | 140 | 32 | 270 | 140 | 28.1 | 18.2 |
| 286-32-9 |
Q45B | 45 | 320 | 170 | 38 | 270 | 140 | 38.3 | 27.7 |
| 286-32-10 |
Q50B | 50 | 380 | 200 | 38 | 270 | 140 | 45 | 33.2 |
| 286-32-11 |
Q60B | 60 | 430 | 220 | 50 | 380 | 200 | 65.3 | 54 |
| 286-32-12 |
Q70B | 70 | 500 | 250 | 60 | 430 | 220 | 84.4 | 101.2 |
