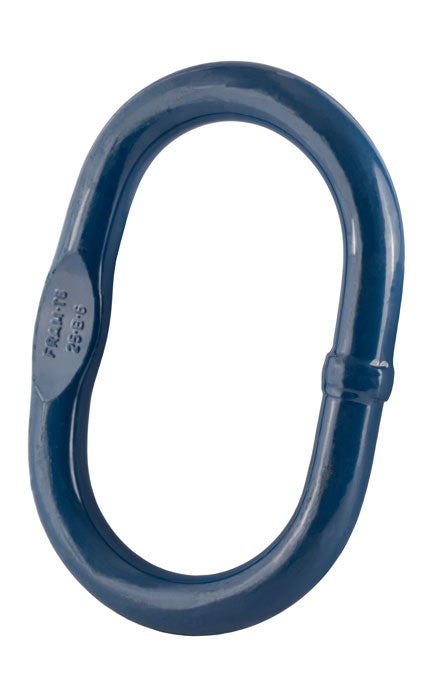

FRAM - Grade 8 Master Link to BS-EN 1677-4

Fram SKU: 286-31-1

1 2

Grade 8 Fram Master Link Alloy steel, quenched and tempered. Blue painted finish. Type approved according to DNV GL. Conforms to BS EN 1677-4. Minimum breaking load is 5 times the W.L.L. Certification -... Read More

€22,35

RRP TODAY'S PRICE €22,35

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Grade 8 Fram Master Link

Alloy steel, quenched and tempered.
Blue painted finish.
Type approved according to DNV GL.
Conforms to BS EN 1677-4.
Minimum breaking load is 5 times the W.L.L.
Certification - Declaration of Conformity

Specification

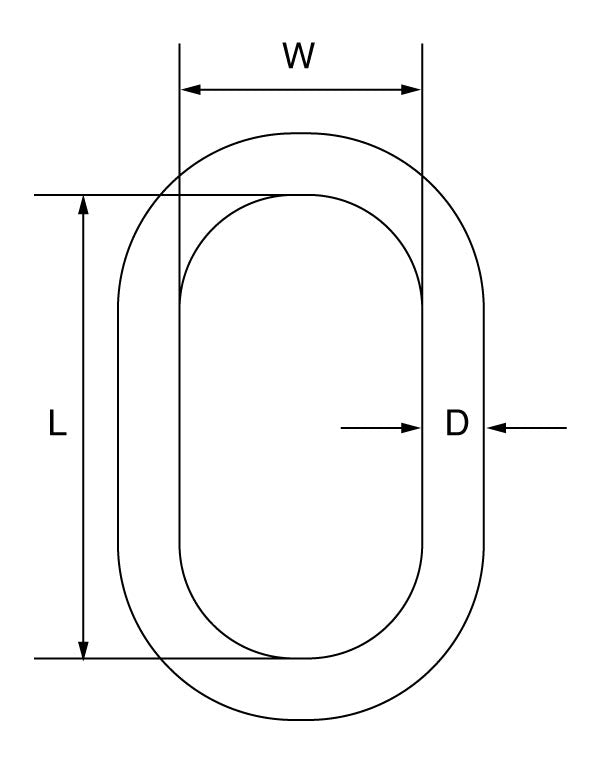

SKU	Part No.	D	L	W	W.L.L.	Weight
		mm	mm	mm	t	kgs
286-31-1	13B5	13	95	54	2.7	0.3
286-31-2	13B6	13	115	60	2.7	0.4
286-31-3	16B6	16	120	70	4.1	0.6
286-31-4	16B7	16	190	100	3.2	0.9
286-31-5	20B6	20	150	82	6.7	1.1
286-31-6	20B7	20	170	90	6.5	1.3
286-31-7	22B6	22	170	90	8.2	1.6
286-31-8	22B7	22	210	110	7.2	1.9
286-31-9	22B8	22	270	140	5.8	2.5
286-31-10	25B6	25	190	103	10.7	2.3
286-31-11	28B6	28	210	112.5	12.9	3.2
286-31-12	28B7	28	270	140	11.8	4
286-31-13	32B6	32	270	140	17.1	5.3
286-31-14	38B6	38	270	140	28.1	7.6
286-31-15	38B7	38	420	220	19.1	11
286-31-16	45B6	45	320	170	38.3	12.5
286-31-17	45B7	45	470	250	27.6	17.5
286-31-18	50B6	50	380	200	45	18
286-31-19	60B6	60	430	220	65.3	29
286-31-20	70B6	70	500	250	84.4	43.2
