KITO - Grade 8 Eye Sling Hook with Safety Catch to BS-EN 1677-2

KITO Weissenfels SKU: 286-20-9

1 2

KITO WEISSENFELS Grade 8 Eye Sling Hook with Safety Catch to BS-EN 1677-2 Alloy steel, quenched and tempered. Red painted finish. Conforms... Read More

€12,04

RRP TODAY'S PRICE €12,04

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

KITO WEISSENFELS Grade 8 Eye Sling Hook with Safety Catch to BS-EN 1677-2

Alloy steel, quenched and tempered.
Red painted finish.
Conforms to BS EN 1677-2.
Supplied with EC Declaration of Conformity

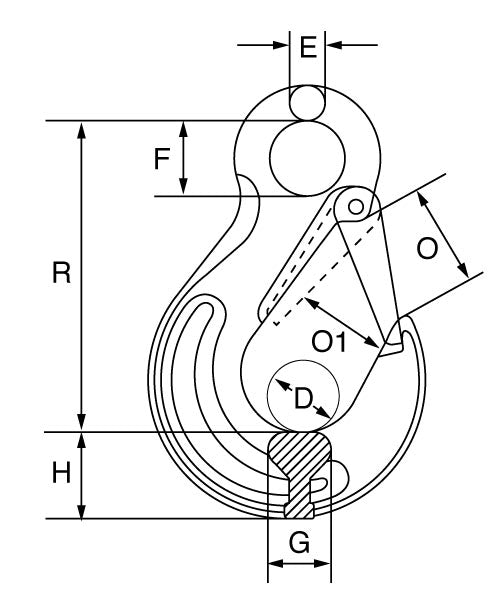

Spec

SKU	Chain Dia	Part No.	D	E	F	G	H	O	O1	R
	mm		mm	mm	mm	mm	mm	mm	mm	mm
286-20-9	6	WA29S	18	10	20	16.5	21	25	19	84.5
286-20-1	7/8	WA30S	24	11	25	19	27	32	25	106
286-20-2	10	WA31S	30	16	34	26	33	40	31	131
286-20-3	13	WA32S	38	19	43	33	42	48	39	164
286-20-4	16	WA33S	44	25	50	40	50	55	45	182.5
286-20-5	20	WA34S	53	27	55	48	54	61	54	205
286-20-6	22	WA35S	60	30	60	50	61	71	61	225
286-20-7	26	WA36S	72	36	70	60	69	84	73	265
286-20-8	32	WA37S	80	39	76	71	89	95	87	259

Technical Data

SKU	Product Code	W.L.L.	M.P.F.	M.B.F.	Weight
		t	kN	kN	kgs
286-20-9	G8ESH6	1.12	28.3	45.2	0.24
286-20-1	G8ESH8	2	50.3	80.4	0.5
286-20-2	G8ESH10	3.15	78.5	126	0.9
286-20-3	G8ESH13	5.3	133	212	1.5
286-20-4	G8ESH16	8	201	322	2.75
286-20-5	G8ESH20	12.5	314	503	4.9
286-20-6	G8ESH22	15	380	608	8.8
286-20-7	G8ESH26	21.2	520	849	13.8
286-20-8	G8ESH32	31.5	772	1,240	27
