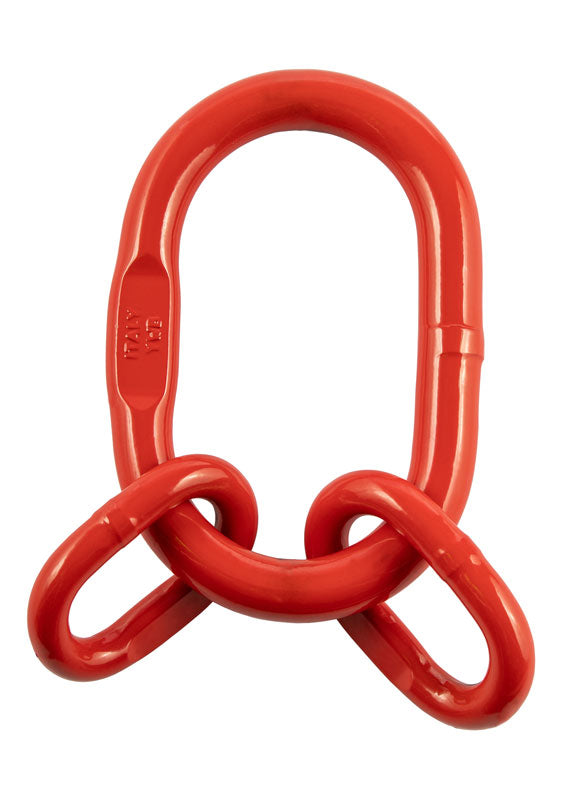

KITO WEISSENFELS Grade 8 DNV Quad Master Assembly Link

Alloy steel, quenched and tempered.
Red painted finish.
Conforms to BS EN 1677-4.
Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
Suitable for use with Grade 8 Chains and wire/fibre rope slings.
Designed for use with 3 or 4 leg slings.
T ranges have large inside widths & lengths to allow for sling hardware and crane hooks.
Certification - Declaration of Conformity

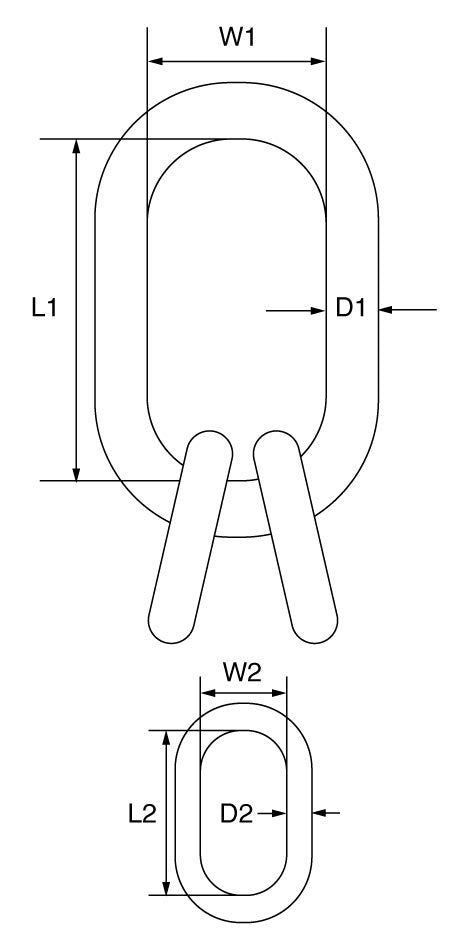

SKU	W.L.L	MPF	Min BF	D1	L1	W1	D2	L2	W2	Weight
	t	kN	kN	mm	mm	mm	mm	mm	mm	kgs
286-36-1	6.7	164	329	23	270	140	17	140	80	4
286-36-2	8.9	218	437	25	270	140	19	135	75	4.8
286-36-3	11.8	290	579	27	270	140	20	135	75	5.7
286-36-4	17.1	420	839	33	270	140	27	180	100	10.4
286-36-5	24.1	591	1,182	36	270	140	30	190	110	13.1
286-36-6	28.1	689	1,378	40	275	150	33	200	110	16.7
286-36-7	38.3	939	1,878	45	340	180	36	225	125	24
286-36-8	45	1,104	2,207	50	350	190	40	275	150	33.1
286-36-9	65	1,643	3,286	60	430	230	50	350	190	62.1
286-36-10	85	2,085	4,169	70	480	260	56	400	200	91.2
