Description
Description

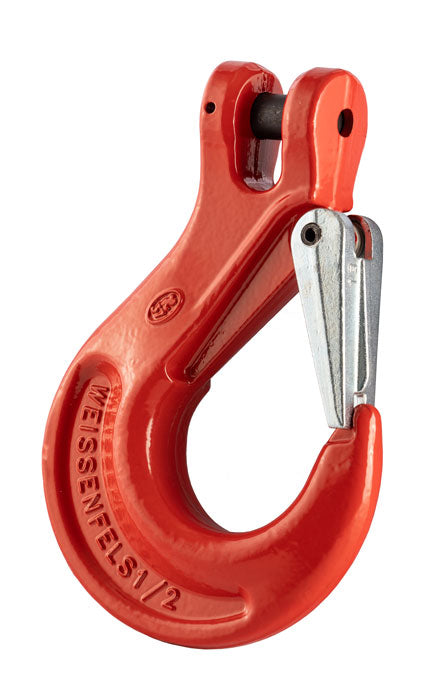

- Alloy steel, quenched and tempered.
- Red painted finish.
- Conforms to BS EN 1677-3.
- Temperature range -40°C to +400°C (Reductions in W.L.L apply).
- Clevis fitting enables direct connection to chain
- Supplied with EC Declaration of Conformity
Spec

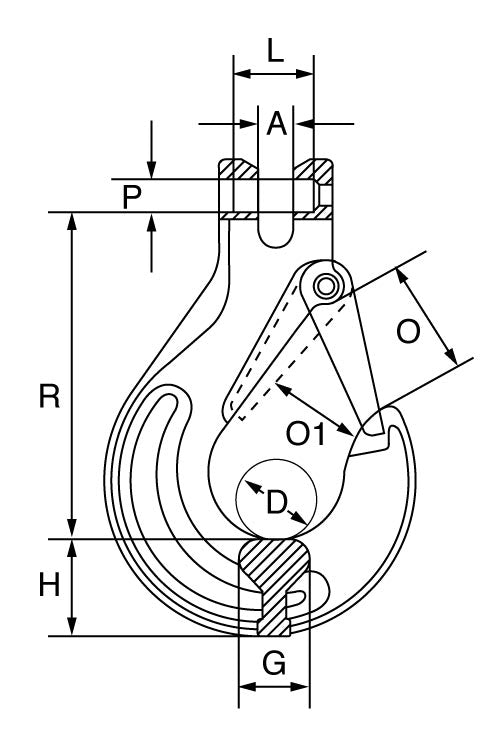

| SKU | Chain Dia | Part No. | A | D | G |
H |
O |
O1 | R |
P X L |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 286-19-1 | 6 | WA79S | 7 |
18 |
16.5 |
20 |
25 |
19 |
69 |
7.4 x 16.5 |
| 286-19-2 | 7/8 | WA80S |
9 |
25 |
19 |
28 |
32 |
26 |
94.5 |
9.6 x 23 |
| 286-19-3 | 10 | WA81S |
11.5 |
30 |
25 |
33 |
39 |
31 |
109 |
12.5 x 29.5 |
| 286-19-4 | 13 | WA82S |
14.5 |
3838 |
30 |
40 |
48 |
39 |
135 |
16 x 38 |
| 286-19-5 | 16 | WA83S |
17.5 |
44 |
37 |
47 |
55 |
45 |
155 |
20 x 52 |
| 286-19-6 | 20 | WA84S | 23 | 52 | 51 | 52 | 61 | 53 | 183 | 24 x 73 |
| 286-19-7 | 22 | WA85S | 24.5 | 60 | 50 | 62 | 71 | 61 | 212 | 27 x 71 |
Technical Data
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-19-1 | 6 | 1.12 | 28.3 | 45.2 | 0.27 |
| 286-19-2 | 7/8 | 2 | 50.3 | 80.4 | 0.53 |
| 286-19-3 | 10 | 3.15 | 78.5 | 126 | 0.95 |
| 286-19-4 | 13 | 5.3 | 133 | 212 | 1.67 |
| 286-19-5 | 16 | 8 | 201 | 322 | 3 |
| 286-19-6 | 20 | 12.5 | 248 | 498 | 5.4 |
| 286-19-7 | 22 | 15 | 298 | 596 | 7 |
