Description

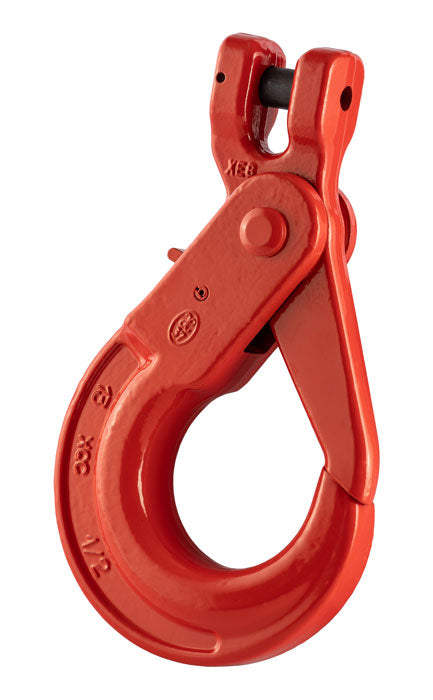

Grade 8 Clevis Self Locking Hook (103 Series) to BS-EN 1677-3
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-3.
  • Temperature range -40°C to +400°C (Reductions in W.L.L apply).
  • Clevis fitting enables direct connection to chain.
  • Certification - Declaration of Conformity


Spec

SKU

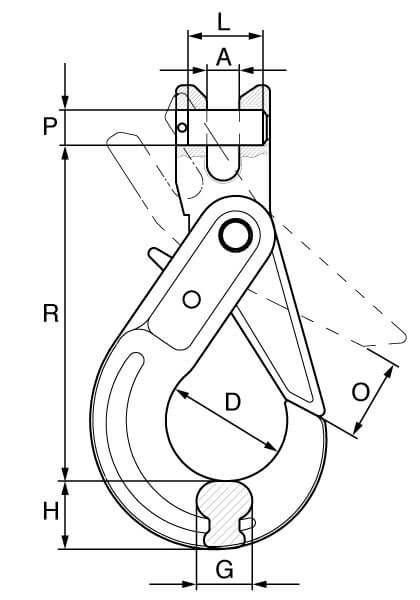

 Chain Dia Part No. C D E F G H L M
mm mm mm mm mm mm mm mm mm
286-15-1
 7/8 103-7/8 20 33 25 10 28 45 122 165
286-15-2
 10 103-10 27 44 35 12.5 35 58 151 207
286-15-3
 13 103-13 31 54.5 40 16 38 71 184 255
286-15-4
 16 103-16 40 67 52 20 50 84 212 300
286-15-5
 20 103-20 48 90 62 24 80 90 243 340


Technical Data

SKU Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
286-15-1 7/8 2 50.3 80.4 0.93
286-15-2 10 3.15 78.5 126 1.73
286-15-3 13 5.3 133 212 3.1
286-15-4 16 8 201 322 6
286-15-5 20 12.5 314 503 7.5
