KITO - Grade 8 Clevis Grab Hook to BS-EN 1677-1

KITO Weissenfels SKU: 286-21-1

1 2

Grade 8 Clevis Grab Hook to BS-EN 1677-1 Read More

KITO Weissenfels SKU: 286-21-1

€11,06

RRP ~~€11,06~~ TODAY'S PRICE €11,06

In stock (2)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

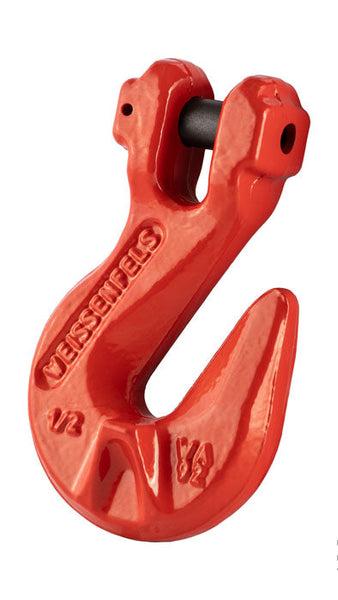

Grade 8 Clevis Grab Hook to BS-EN 1677-1

Alloy steel, quenched and tempered.
Red painted finish.
Conforms to BS EN 1677-1.
Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
Clevis fitting enables direct connection to chain.
Our grab hooks can be used as a shortening device without any reduction of SWL of the chain sling capacity.
The ‘T’ shape in the bowl of the hook supports the chain and helps prevent possible deformation of the link when used as a shortening device.
For correct safe use, the clevis grab hook must be assembled to the master link via three links of chain.
Certification - Declaration of Conformity

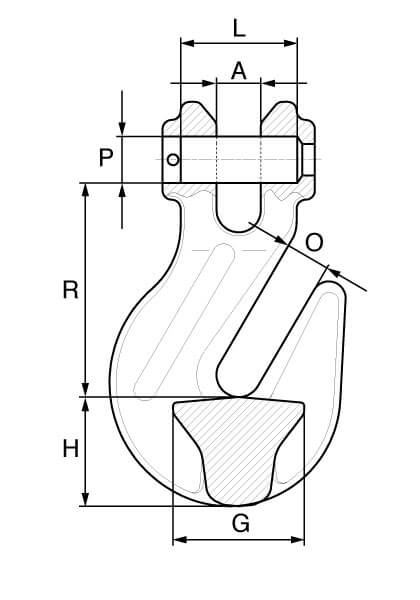

SKU	Chain Dia	Part No.	A	G	H	O	R	P x L
	mm		mm	mm	mm	mm	mm	mm
286-21-1	7/8	WA90	9	30	24	10	50	9 x 23
286-21-2	10	WA91	13	44	31	13	72	13 x 31.5
286-21-3	13	WA92	17	53	38	17	88	16 x 42
286-21-4	16	WA93	21	64	44	20	102	21 x 51.5
286-21-5	20	WA94	24	85	53	24	117	24 x 61.5
286-21-6	22	WA95	26	97	62	27	139	26 x 72

Technical Data

SKU	Chain Dia	W.L.L.	M.P.F.	M.B.F.	Packing Qty	Weight
	mm	t	kN	kN		kgs
286-21-1	7/8	2	50.3	80.4	40	0.3
286-21-2	10	3.15	78.5	126	16	0.75
286-21-3	13	5.3	133	212	10	1.4
286-21-4	16	8	201	322	7	2.5
286-21-5	20	12.5	314	503	5	4.3
286-21-6	22	15	380	608	1	6.4
